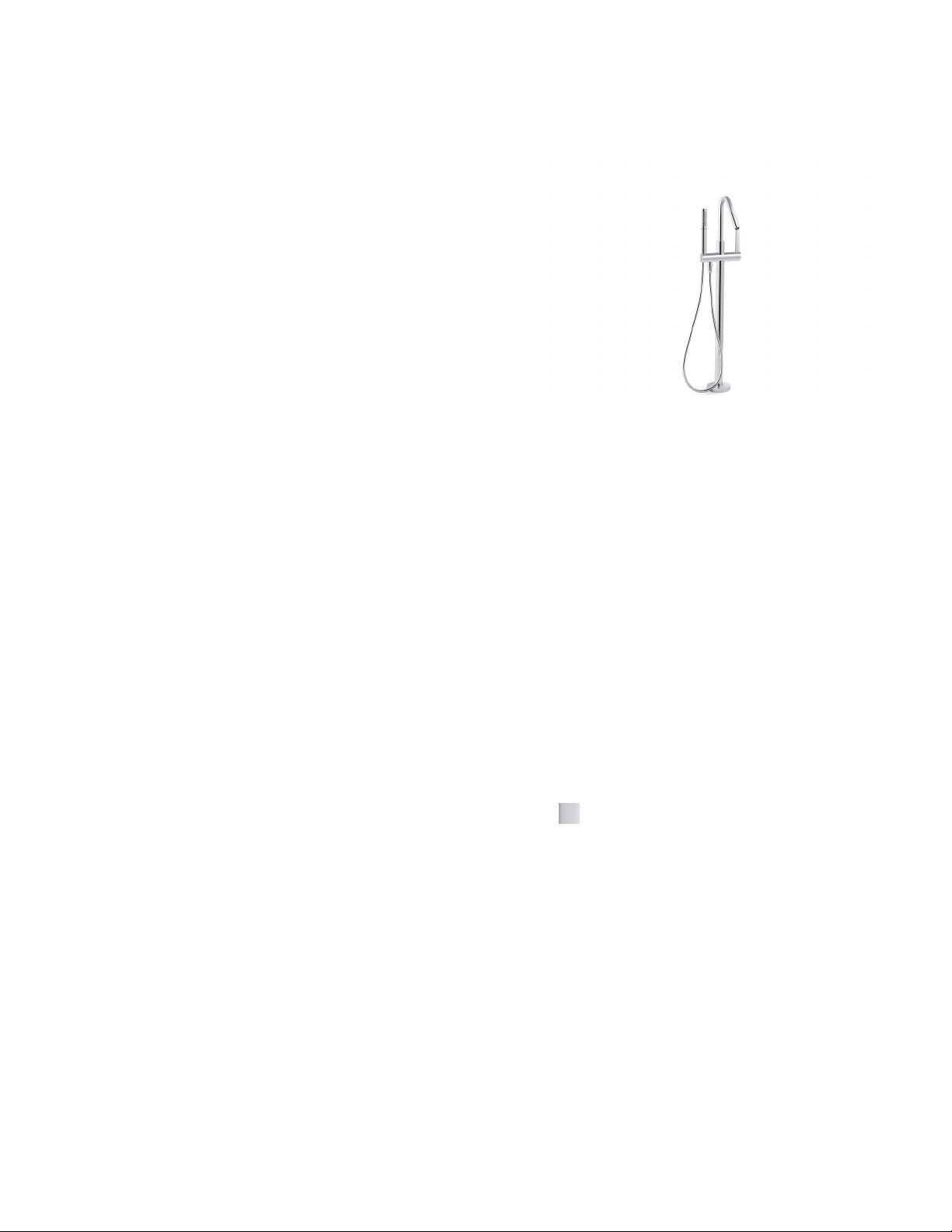

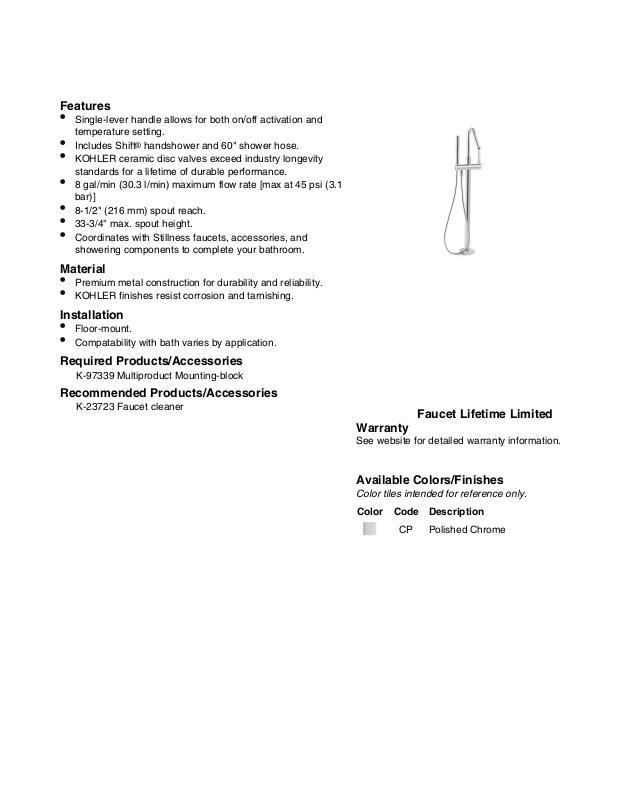

Features
•
Single-lever handle allows for both on/off activation and
temperature setting.
•
Includes Shift® handshower and 60" shower hose.
•
KOHLER ceramic disc valves exceed industry longevity
standards for a lifetime of durable performance.
•
8 gal/min (30.3 l/min) maximum flow rate [max at 45 psi (3.1
bar)]
•
8-1/2" (216 mm) spout reach.
•
33-3/4" max. spout height.
•
Coordinates with Stillness faucets, accessories, and
showering components to complete your bathroom.
Material
•
Premium metal construction for durability and reliability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Floor-mount.
•
Compatability with bath varies by application.
Required Products/Accessories
K-97339 Multiproduct Mounting-block
Recommended Products/Accessories
K-23723 Faucet cleaner
Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
Page 2
Finished
Floor
Finished
Wall
Ø 4-3/4"
(121 mm)
3-3/8"
(86 mm) Min
7-7/8"
(200 mm)
Min
8-1/2"
(216 mm)
5-13/16"
(148 mm)
26-3/8"
(670 mm)
Min
27-3/16"
(691 mm)
Max
33"
(838 mm)
Min
33-3/4"
(857 mm)
Max
38-5/8"
(981 mm)
Min
39-3/8"
(1000 mm)
Max
8-11/16"
(221 mm)
7-15/16"
(202 mm)
Wood Support
6" (152 mm)
Min Width
Floor Joist
6" (152 mm)
Min
1/2" NPT Hot
2" (51 mm) Min
Floor Joist
1/2" NPT Cold
2-1/4" (57 mm) Min
3-1/16" (78 mm) Max
2"
(51 mm)
Min
1/2" NPT
Technical Information
All product dimensions are nominal.
Faucet:
Flow rate: 6 gal/min (22.7 l/min)
Pressure: 45 psi (3.1 bar)
Spout:
Spout reach: 8-1/2" (216 mm)
Handshower:
Rated maximum
flow:
1.75 gal/min (6.6 l/min)
Pressure: 80 psi (5.5 bar)
Notes
For use with automatic compensating valves
rated at 1.3 gal/min (4.9 l/min) or less.
Install this product according to the installation
guide.
Adequate floor support is required.The wood
support must be a minimum of 2" (51 mm)
thick by 6" (152 mm) wide. 2x6 lumber is NOT
adequate for this application.
Concrete can be used as the floor support.
Requires 3/16" masonry drill bit and six 1/4" x
1-3/4" concrete screws, not included.
