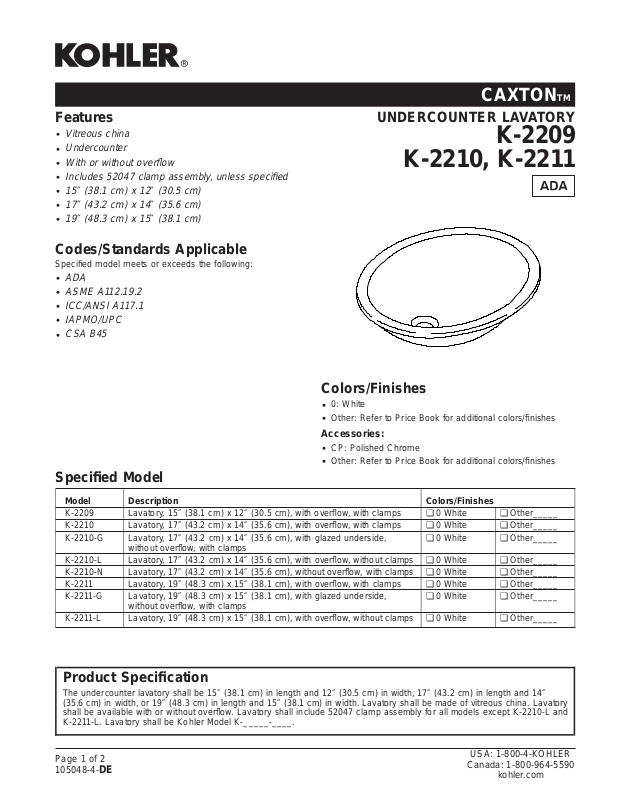

CAXTONTM
Features
Vitreous china
•
Undercounter
•
With or without overflow
•
Includes 52047 clamp assembly, unless specified
•
15″(38.1 cm) x 12″(30.5 cm)
•
17″(43.2 cm) x 14″(35.6 cm)
•
19″(48.3 cm) x 15″(38.1 cm)
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
ADA
•
ASME A112.19.2
•
ICC/ANSI A117.1
•
IAPMO/UPC
•
CSA B45
•
Specified Model
UNDERCOUNTER LAVATORY
K-2209
K-2210, K-2211
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories:
CP: Polished Chrome
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-2209 Lavatory, 15″ (38.1 cm) x 12″ (30.5 cm), with overflow, with clamps ❑ 0 White ❑ Other_____
K-2210 Lavatory, 17″ (43.2 cm) x 14″ (35.6 cm), with overflow, with clamps ❑ 0 White ❑ Other_____
K-2210-G Lavatory, 17″ (43.2 cm) x 14″ (35.6 cm), with glazed underside,
without overflow, with clamps
K-2210-L Lavatory, 17″ (43.2 cm) x 14″ (35.6 cm), with overflow, without clamps ❑ 0 White ❑ Other_____
K-2210-N Lavatory, 17″ (43.2 cm) x 14″ (35.6 cm), without overflow, with clamps ❑ 0 White ❑ Other_____
K-2211 Lavatory, 19″ (48.3 cm) x 15″ (38.1 cm), with overflow, with clamps ❑ 0 White ❑ Other_____
K-2211-G Lavatory, 19″ (48.3 cm) x 15″ (38.1 cm), with glazed underside,
without overflow, with clamps
K-2211-L Lavatory, 19″ (48.3 cm) x 15″ (38.1 cm), with overflow, without clamps ❑ 0 White ❑ Other_____
❑ 0 White ❑ Other_____
❑ 0 White ❑ Other_____
Product Specification
The undercounter lavatory shall be 15″ (38.1 cm) in length and 12″ (30.5 cm) in width, 17″ (43.2 cm) in length and 14″
(35.6 cm) in width, or 19″ (48.3 cm) in length and 15″ (38.1 cm) in width. Lavatory shall be made of vitreous china. Lavatory
shall be available with or without overflow. Lavatory shall include 52047 clamp assembly for all models except K-2210-L and
K-2211-L. Lavatory shall be Kohler Model K-_____-____.
Page1of2
105048-4-
DE
USA: 1-800-4-KOHLER
Canada: 1-800-964-5590
kohler.com
Page 2
CAXTONTM
Technical Information
Recommended Accessory
K-8998 P-Trap ❑ CP ❑ Other_____
ADA compliant
Fixture*: Basin area Water
K-2209 15″ (38.1 cm) x 12″ (30.5 cm) 4″
K-2210/
K-2210-L/
K-2210-N/
K-2210-G
K-2211/
K-2211-G/
K-2211-L
Drain hole 1-3/4″ (4.4 cm) D.
* Approximate measurements for comparison only.
17″ (43.2 cm) x 14″ (35.6 cm) 4″
19″ (48.3 cm) x 15″ (38.1 cm) 4″
depth
(10.2 cm)
(10.2 cm)
(10.2 cm)
K-2209: (X) = 14" (35.6 cm), (Y) = 17" (43.2 cm)
K-2210: (X) = 16-1/4" (41.3 cm), (Y) = 19-1/4" (48.9 cm)
K-2211: (X) = 17-1/4" (43.8 cm), (Y) = 21-1/4" (54 cm)
C
L of Fitting
2-1/2" (6.4 cm)
5-1/8"
(13 cm)
(X)
2-5/8" (6.7 cm)
1" (2.5 cm) = K-2209
1-1/8" (2.9 cm)
(Y)
1/2" (1.3 cm)
7-1/2"
14"
(35.6 cm)
13-1/8"
(33.3 cm)
(19.1 cm)
ADA Drain Outlet
3/8" Hot
3/8" Cold
Included components:
Basin clamp assembly (not included
with K-2210-L and K-2211-L)
Cut-out template, K-2209 85838-7
Cut-out template, K-2210 1002975-7
Cut-out template, K-2211 1018997-7
52047
Installation Notes
Install this product according to the installation guide.
Supplied basin clamp assemblies require 1″ (2.5 cm)
minimum countertop thickness. Installer must supply anchors
for thinner countertops.
3" (7.6 cm)
34"
(86.4 cm)
27"
(68.6 cm)
Min
Recommended ADA Installation
10-3/4"
(27.3 cm)
Sealant
24" (61 cm)
8"
(20.3 cm)
Min
9" (22.9 cm)
Min
3/8" (1 cm) D.
Marble Installation
10-3/4"
(27.3 cm)
6"
(15.2 cm)
Max
5/8"
(1.6 cm)
1-1/4" OD
1-1/2" (3.8 cm)
4" (10.2 cm)
Standard Installation
CAXTONTM UNDERCOUNTER LAVATORY
Page2of2
105048-4-
DE
Wood Installation
Product Diagram
