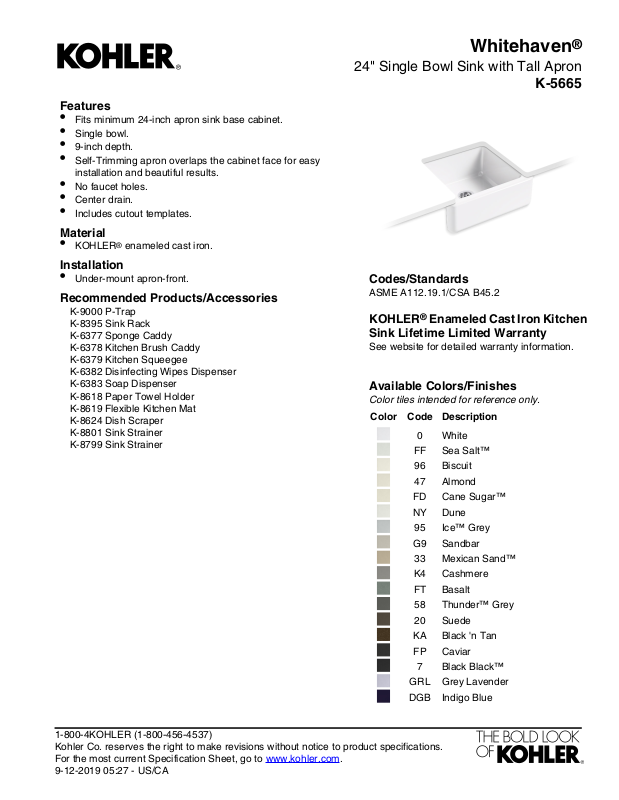

Page 1
Features
•
Fits minimum 24-inch apron sink base cabinet.
•
Single bowl.
•
9-inch depth.
•
Self-Trimming apron overlaps the cabinet face for easy
installation and beautiful results.
•
No faucet holes.
•
Center drain.
•
Includes cutout templates.
Material
•
KOHLER® enameled cast iron.
Installation
•
Under-mount apron-front.
Recommended Products/Accessories
K-9000 P-Trap
K-8395 Sink Rack
K-6377 Sponge Caddy
K-6378 Kitchen Brush Caddy
K-6379 Kitchen Squeegee
K-6382 Disinfecting Wipes Dispenser
K-6383 Soap Dispenser
K-8618 Paper Towel Holder
K-8619 Flexible Kitchen Mat
K-8624 Dish Scraper
K-8801 Sink Strainer
K-8799 Sink Strainer
Whitehaven
®
24" Single Bowl Sink with Tall Apron
K-5665
Codes/Standards
ASME A112.19.1/CSA B45.2
KOHLER® Enameled Cast Iron Kitchen
Sink Lifetime Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Sea Salt™FF
Biscuit96
Almond47
Cane Sugar™FD
DuneNY
Ice™ Grey95
SandbarG9
Mexican Sand™33
CashmereK4
BasaltFT
Thunder™ Grey58
Suede20
Black 'n TanKA
CaviarFP
Black Black™7
Grey LavenderGRL
Indigo BlueDGB
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-12-2019 05:27 - US/CA
Page 2
22" (559 mm)
9-5/8"
(244 mm)
7/16"
(11 mm)
1-1/2" OD
14-15/16"
(379 mm)
19-5/16"
(491 mm)
1-3/8"
(35 mm)
8-13/16"
(224 mm)
9-13/16"
(249 mm)
11"
(279 mm)
8-3/16"
(209 mm)
2-1/4"
(57 mm)
21-9/16"
(548 mm)
23-1/2" (597 mm)
Whitehaven
®
24" Single Bowl Sink with Tall Apron
K-5665
Technical Information
All product dimensions are nominal.
Bowl area (Only):
Template:
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-12-2019 05:27 - US/CA
width:
SingleBowl configuration:
Under-mountInstallation:
24" (610 mm)Min. base cabinet
Length: 18-13/16" (477 mm)
Width: 18-1/16" (459 mm)
Bowl depth: 9" (229 mm)
Water depth: 9" (229 mm)
3-5/8" (92 mm)Drain hole:
1247417, required, included
1239229-7, required, included
Notes
Install this product according to the installation
instructions.
