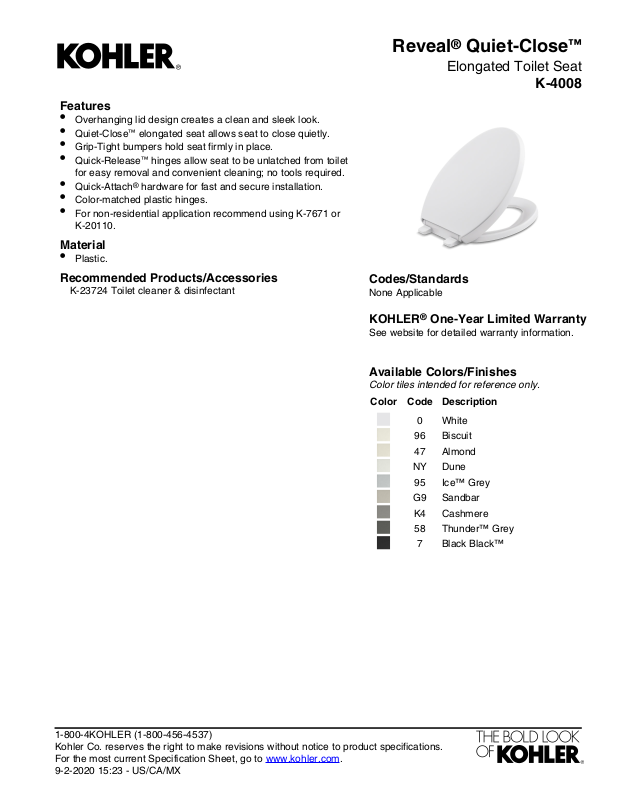

Page 1
Features
•
Overhanging lid design creates a clean and sleek look.
•
Quiet-Close™ elongated seat allows seat to close quietly.
•
Grip-Tight bumpers hold seat firmly in place.
•
Quick-Release™ hinges allow seat to be unlatched from toilet
for easy removal and convenient cleaning; no tools required.
•
Quick-Attach® hardware for fast and secure installation.
•
Color-matched plastic hinges.
•
For non-residential application recommend using K-7671 or
K-20110.
Material
•
Plastic.
Reveal® Quiet-Close
Elongated Toilet Seat
K-4008
™
Recommended Products/Accessories
K-23724 Toilet cleaner & disinfectant
Codes/Standards
None Applicable
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
DuneNY
Ice™ Grey95
SandbarG9
CashmereK4
Thunder™ Grey58
Black Black™7
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-2-2020 15:23 - US/CA/MX
Page 2
5-1/2"
(140 mm)
8-1/4" (210 mm)
12"
(305 mm)
1"
(25 mm)
18-11/16"
(475 mm)
18"
(457 mm)
14-1/8" (359 mm)
Reveal® Quiet-Close
Elongated Toilet Seat
K-4008
™
Technical Information
All product dimensions are nominal.
ElongatedSeat shape type:
Closed-frontSeat front type:
5-1/2" (140 mm)Seat-mounting holes:
Notes
Install this product according to the installation
guide.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
9-2-2020 15:23 - US/CA/MX
