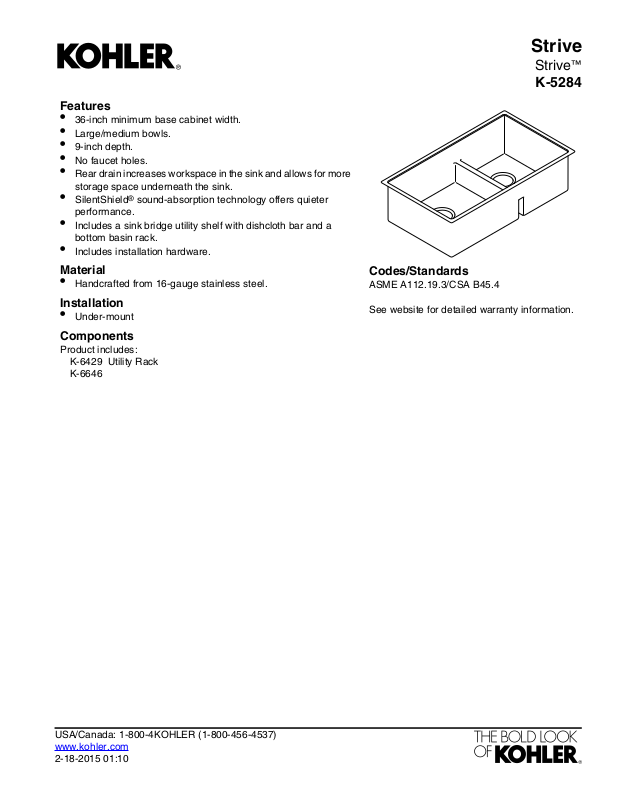

Page 1
Features
•
36-inch minimum base cabinet width.
•
Large/medium bowls.
•
9-inch depth.
•
No faucet holes.
•
Rear drain increases workspace in the sink and allows for more
storage space underneath the sink.
•
SilentShield® sound-absorption technology offers quieter
performance.
•
Includes a sink bridge utility shelf with dishcloth bar and a
bottom basin rack.
•
Includes installation hardware.
Strive
Strive
K-5284
™
Material
•
Handcrafted from 16-gauge stainless steel.
Installation
•
Under-mount
Components
Product includes:
K-6429 Utility Rack
K-6646
Codes/Standards
ASME A112.19.3/CSA B45.4
See website for detailed warranty information.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 01:10
Page 2
1-1/2" OD
Strive
Strive
K-5284
™

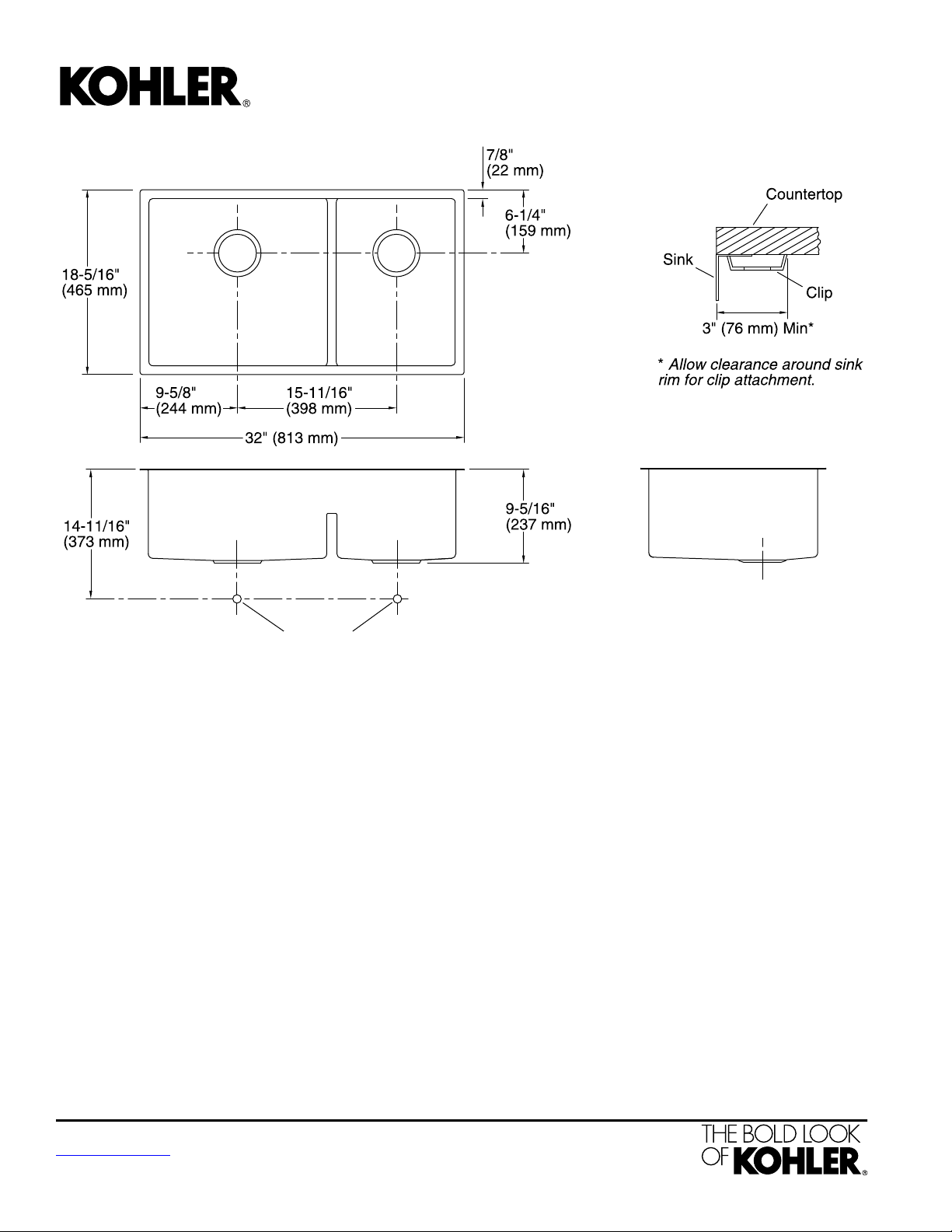

Technical Information
All product dimensions are nominal.
OffsetBowl configuration:
Bowl area (Left)
Bowl area (Right)
Length: 17-1/2" (445 mm)
Width: 16-9/16" (420 mm)
Bowl depth: 9" (229 mm)
Water depth: 4-11/16" (118 mm)
Length: 11-5/8" (295 mm)
Width: 16-9/16" (420 mm)
Bowl depth: 9" (229 mm)
Water depth: 4-11/16" (118 mm)
3-3/4" (94 mm)Drain hole:
1207216-7, required, includedTemplate:
Notes
Install this product according to the installation
guide.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 01:10
