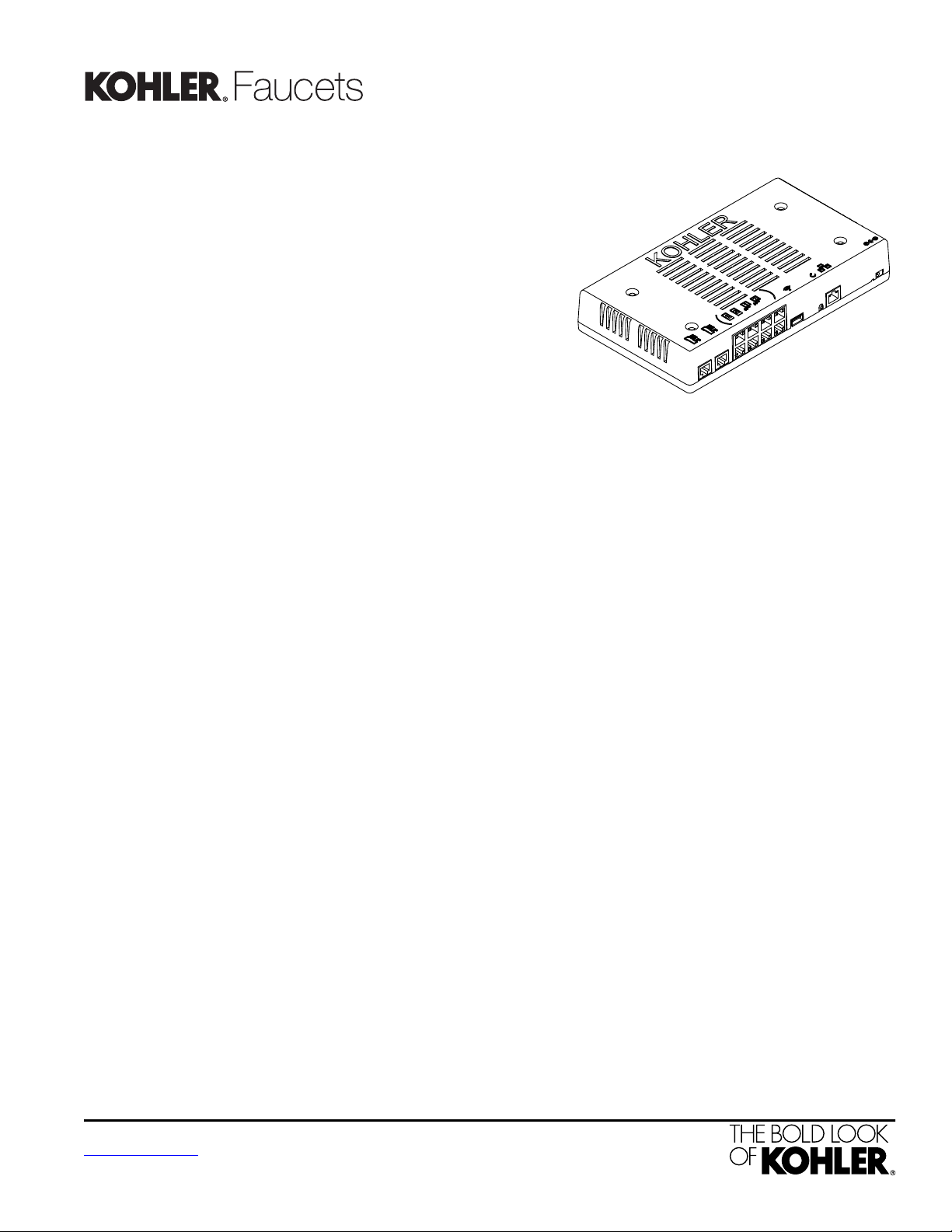

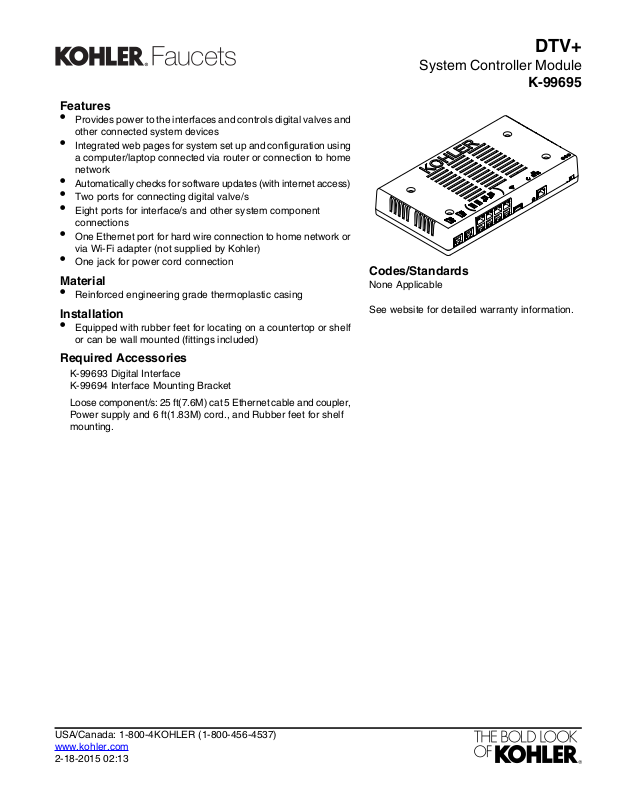

Features
•
Provides power to the interfaces and controls digital valves and
other connected system devices
•
Integrated web pages for system set up and configuration using
a computer/laptop connected via router or connection to home
network
•
Automatically checks for software updates (with internet access)
•
Two ports for connecting digital valve/s
•
Eight ports for interface/s and other system component
connections
•
One Ethernet port for hard wire connection to home network or
via Wi-Fi adapter (not supplied by Kohler)
•
One jack for power cord connection
Material
•
Reinforced engineering grade thermoplastic casing
Installation
•
Equipped with rubber feet for locating on a countertop or shelf
or can be wall mounted (fittings included)
DTV+
System Controller Module
K-99695
Codes/Standards
None Applicable
See website for detailed warranty information.
Required Accessories
K-99693 Digital Interface
K-99694 Interface Mounting Bracket
Loose component/s: 25 ft(7.6M) cat 5 Ethernet cable and coupler,
Power supply and 6 ft(1.83M) cord., and Rubber feet for shelf
mounting.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 02:13
Page 2

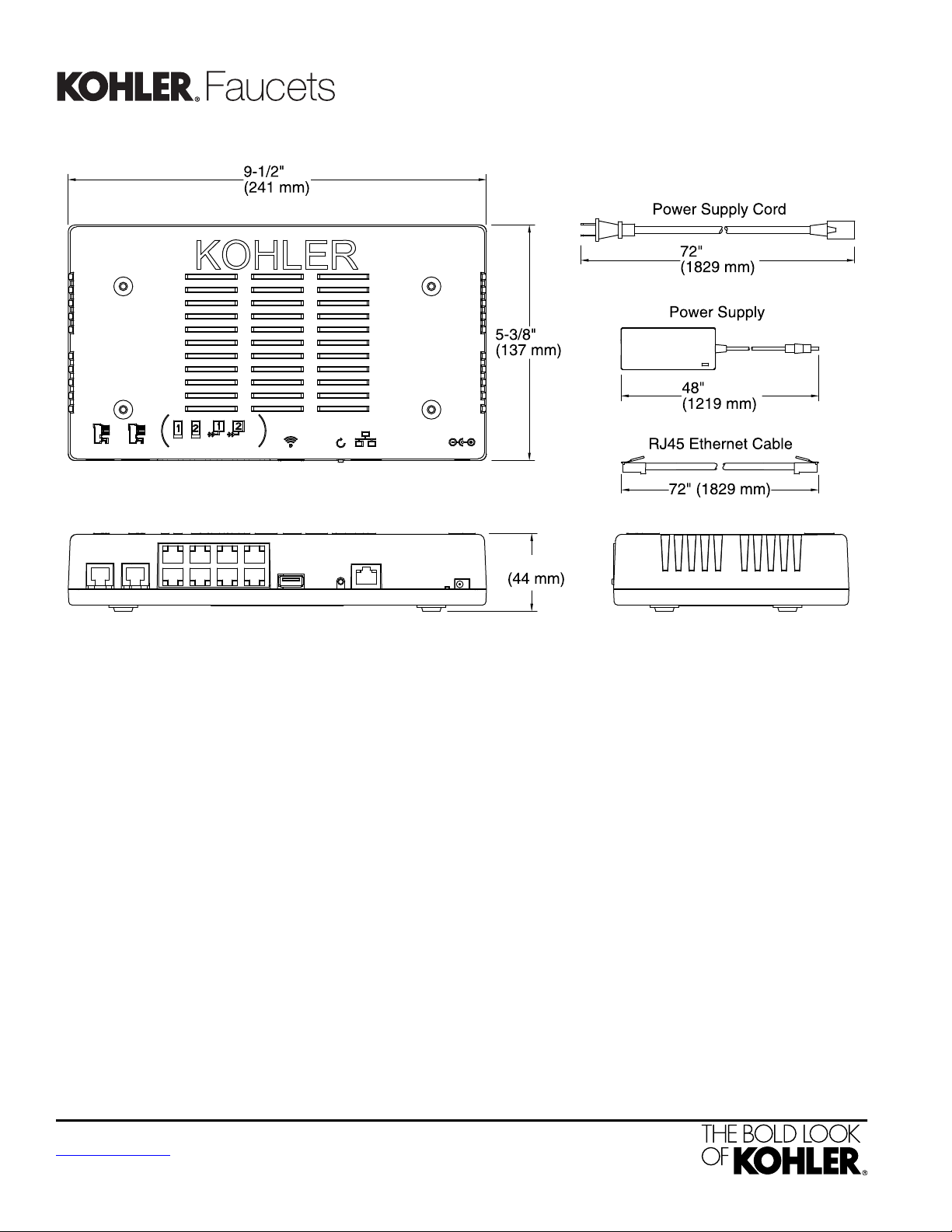

1-3/4"
DTV+
System Controller Module
K-99695
Required Electrical Service
One dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device
(RCD).
120-240 V, .6 A, 50/60 Hz
Technical Information
All product dimensions are nominal.
Notes
Install this product according to the installation
guide.
CAUTION: Risk of product damage. The
controller is rated to operate in temperatures up
to 104°F (40°C). Do not install where the
temperature may exceed 104°F (40°C).
CAUTION: Risk of product damage. Mount
controller higher than the digital valve to prevent
water damage.
The controller comes equipped with rubber feet
for placement on a shelf or countertop.
Install the electrical outlet prior to installing the
controller and within 6’ (1.8 m) of the controller.
Can be mounted within a standard 2x4 stud wall.
Provide an access panel for servicing if mounted
within a 2x4 stud wall. The stud cavity must be
free of insulation.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 02:13
