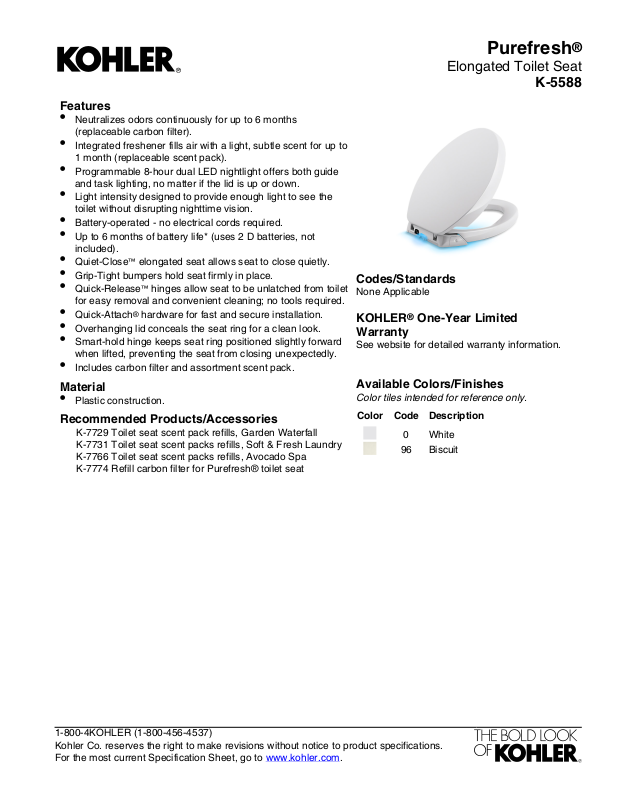

Page 1
Purefresh
Features
•
Neutralizes odors continuously for up to 6 months
(replaceable carbon filter).
•
Integrated freshener fills air with a light, subtle scent for up to
1 month (replaceable scent pack).
•
Programmable 8-hour dual LED nightlight offers both guide
and task lighting, no matter if the lid is up or down.
•
Light intensity designed to provide enough light to see the
toilet without disrupting nighttime vision.
•
Battery-operated - no electrical cords required.
•
Up to 6 months of battery life* (uses 2 D batteries, not
included).
•
Quiet-Close™ elongated seat allows seat to close quietly.
•
Grip-Tight bumpers hold seat firmly in place.
•
Quick-Release™ hinges allow seat to be unlatched from toilet
for easy removal and convenient cleaning; no tools required.
•
Quick-Attach® hardware for fast and secure installation.
•
Overhanging lid conceals the seat ring for a clean look.
•
Smart-hold hinge keeps seat ring positioned slightly forward
when lifted, preventing the seat from closing unexpectedly.
•
Includes carbon filter and assortment scent pack.
Material
•
Plastic construction.
Recommended Products/Accessories
K-7729 Toilet seat scent pack refills, Garden Waterfall
K-7731 Toilet seat scent packs refills, Soft & Fresh Laundry
K-7766 Toilet seat scent packs refills, Avocado Spa
K-7774 Refill carbon filter for Purefresh® toilet seat
Codes/Standards
None Applicable
KOHLER® One-Year Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
0 White
96 Biscuit
®
Elongated Toilet Seat
K-5588
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
Page 2
Purefresh
18-5/8"
(473 mm)
2-1/2"
(64 mm)
19-3/16"
(487 mm)
14-3/16" (360 mm)
11-3/4"
(298 mm)
8-1/8" (206 mm)
5-7/16"
(138 mm)
Technical Information
All product dimensions are nominal.
Seat shape type: Elongated
Seat front type: Closed-front
Seat-mounting
holes:
5-7/16" (137 mm)
Notes
Install this product according to the installation
guide.
Requires two D-cell batteries, not included.
®
Elongated Toilet Seat
K-5588
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
