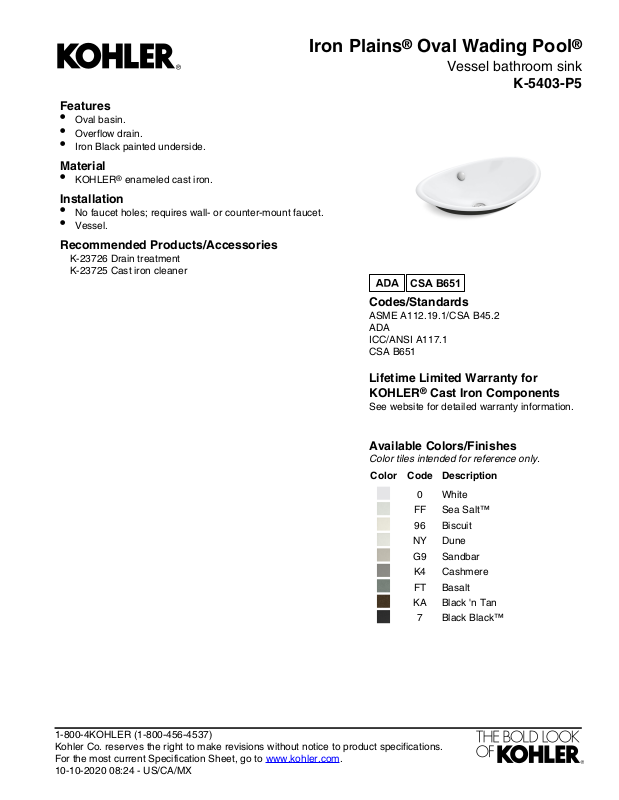

Page 1
Features
CSA B651
•
Oval basin.
•
Overflow drain.
•
Iron Black painted underside.
Material
•
KOHLER® enameled cast iron.
Installation
•
No faucet holes; requires wall- or counter-mount faucet.
•
Vessel.
Recommended Products/Accessories
K-23726 Drain treatment
K-23725 Cast iron cleaner
Iron Plains® Oval Wading Pool
Vessel bathroom sink
K-5403-P5
Codes/Standards
ASME A112.19.1/CSA B45.2
ADA
ICC/ANSI A117.1
CSA B651
®
Lifetime Limited Warranty for
KOHLER® Cast Iron Components
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Sea Salt™FF
Biscuit96
DuneNY
SandbarG9
CashmereK4
BasaltFT
Black 'n TanKA
Black Black™7
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
10-10-2020 08:24 - US/CA/MX
Page 2
9"
(229 mm)
Min
24" (610 mm)
Recommended ADA Installation
(279 mm)
11"
27"
(686 mm)
Min
34"
(864 mm)
8"
(203 mm)
Min
3-3/4"
(95 mm)
14-1/4"
(362 mm)
7-1/8"
(181 mm)
20-3/4"
(527 mm)
3/8" Hot
3/8" Cold
4" (102 mm)
14"
(356 mm)
12-1/4"
(311 mm)
6-5/8"
(168 mm)
3"
(76 mm)
3/8"
(10 mm)

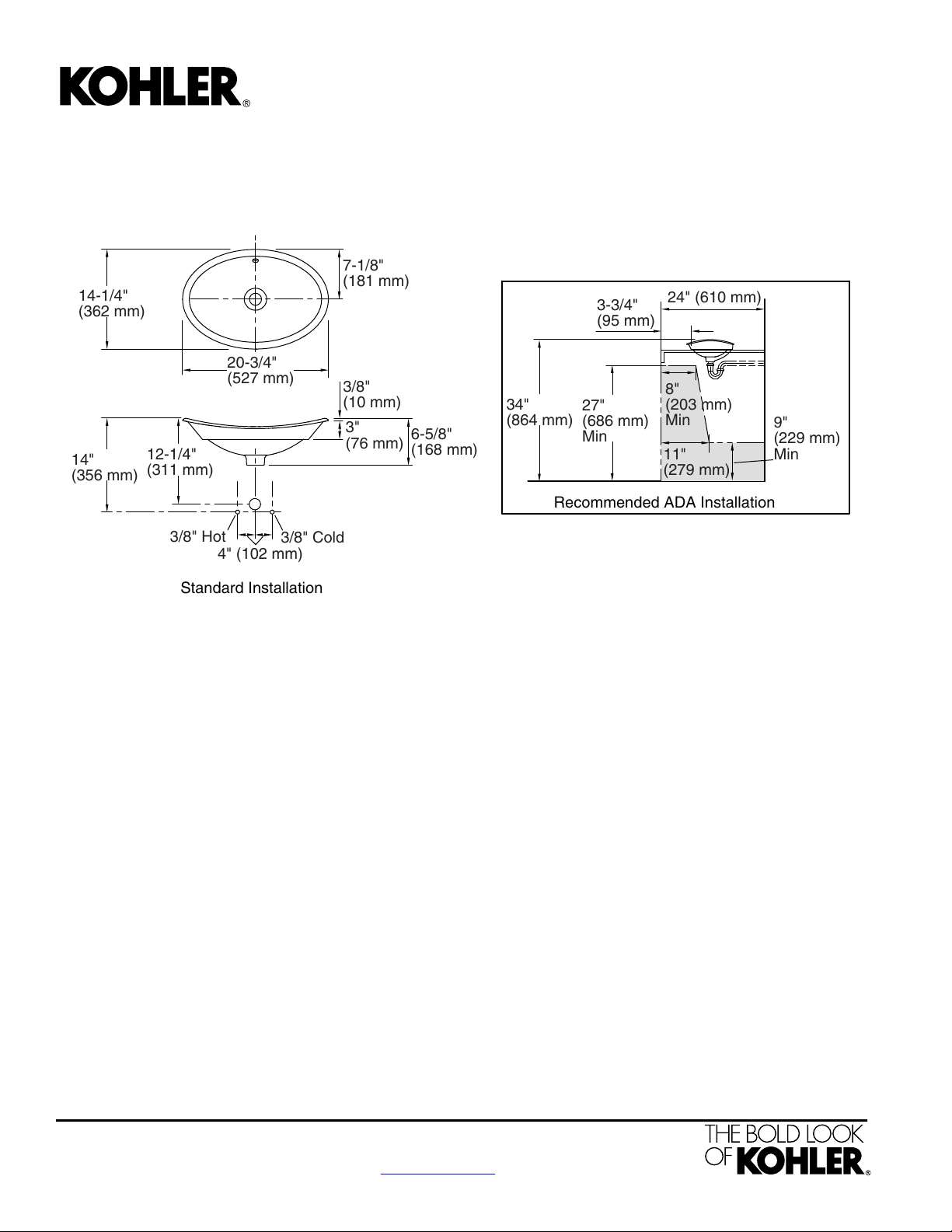

Standard Installation
Iron Plains® Oval Wading Pool
Vessel bathroom sink
K-5403-P5
®
Technical Information
All product dimensions are nominal.
SingleBowl configuration:
VesselInstallation:
Bowl area:
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
10-10-2020 08:24 - US/CA/MX
Length: 19-3/4" (501 mm)
Width: 13-1/4" (337 mm)
Bowl depth: 4-15/16" (126 mm)
With overflow: Yes
Water depth: 2-1/4" (58 mm)
YesWith overflow:
1222633-7, required, includedTemplate:
Notes
Install this product according to the installation
instructions.
NOTICE: Countertop manufacturer or cutter must
use the cut-out template provided with the
product, or a current one provided by Kohler Co.
(call 1-800-4-KOHLER). Kohler Co. is not
responsible for cutout errors when the incorrect
cut-out template is used.
ADA, CSA B651 compliant when installed to the
specific requirements of these regulations.
