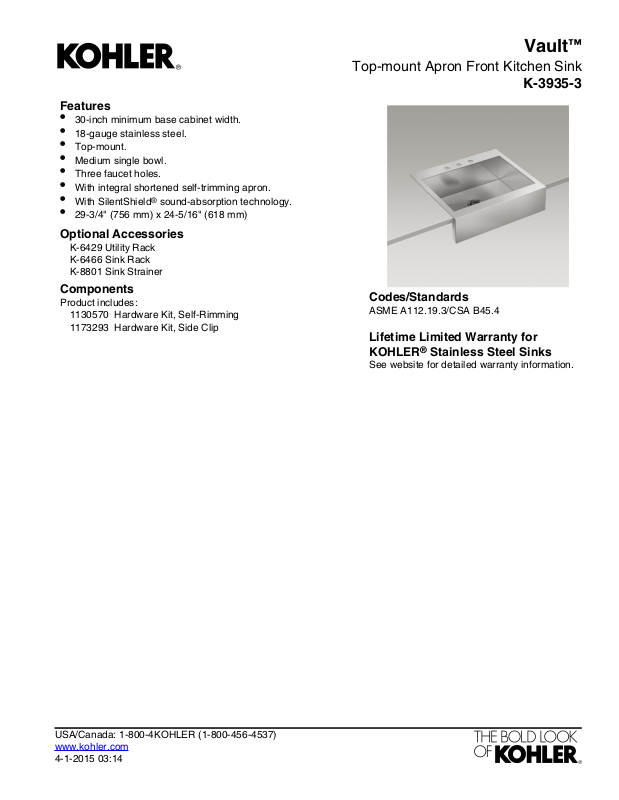

Page 1
Features
•
30-inch minimum base cabinet width.
•
18-gauge stainless steel.
•
Top-mount.
•
Medium single bowl.
•
Three faucet holes.
•
With integral shortened self-trimming apron.
•
With SilentShield® sound-absorption technology.
•
29-3/4" (756 mm) x 24-5/16" (618 mm)
Optional Accessories
K-6429 Utility Rack
K-6466 Sink Rack
K-8801 Sink Strainer
Vault
™
Top-mount Apron Front Kitchen Sink
K-3935-3
Components
Product includes:
1130570 Hardware Kit, Self-Rimming
1173293 Hardware Kit, Side Clip
Codes/Standards
ASME A112.19.3/CSA B45.4
Lifetime Limited Warranty for
KOHLER® Stainless Steel Sinks
See website for detailed warranty information.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-1-2015 03:14
Page 2

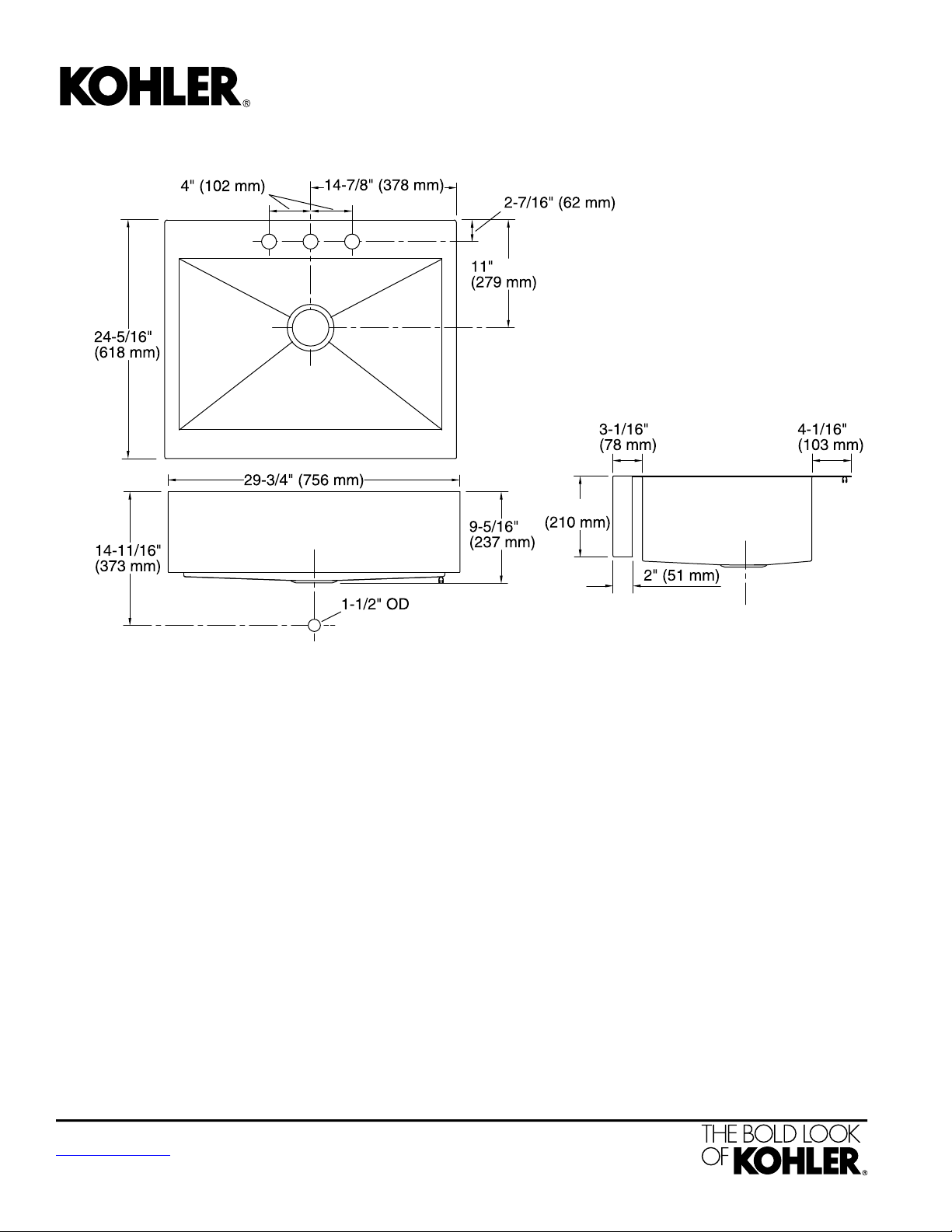

8-1/4"
Vault
™
Top-mount Apron Front Kitchen Sink
K-3935-3
Technical Information
All product dimensions are nominal.
SingleBowl configuration:
Top-mountInstallation:
30" (762 mm)Min. base cabinet
width:
Bowl area (Only)
Template:
Length: 26-1/2" (673 mm)
Width: 17-3/16" (437 mm)
Bowl depth: 9" (229 mm)
3Number of deck holes:
1-7/16" (37 mm)Faucet hole(s):
3-5/8" (92 mm)Drain hole:
Top-mount, 1166716-7, required, included
Apron Front, 1178341, required, included
Notes
Install this product according to the installation
guide.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-1-2015 03:14
