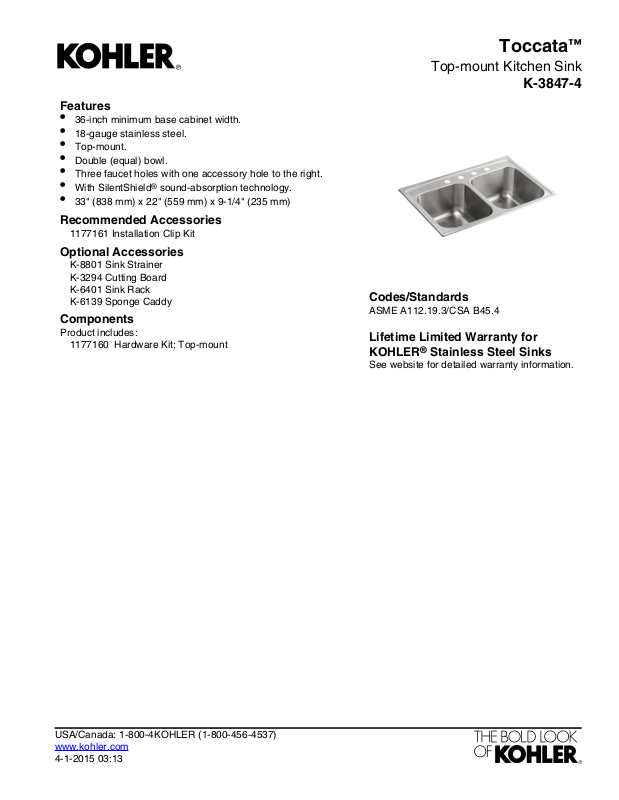

Page 1
Features
•
36-inch minimum base cabinet width.
•
18-gauge stainless steel.
•
Top-mount.
•
Double (equal) bowl.
•
Three faucet holes with one accessory hole to the right.
•
With SilentShield® sound-absorption technology.
•
33" (838 mm) x 22" (559 mm) x 9-1/4" (235 mm)
Recommended Accessories
1177161 Installation Clip Kit
Optional Accessories
K-8801 Sink Strainer
K-3294 Cutting Board
K-6401 Sink Rack
K-6139 Sponge Caddy
Components
Product includes:
1177160 Hardware Kit; Top-mount
Toccata
Top-mount Kitchen Sink
K-3847-4
Codes/Standards
ASME A112.19.3/CSA B45.4
Lifetime Limited Warranty for
KOHLER® Stainless Steel Sinks
See website for detailed warranty information.
™
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-1-2015 03:13
Page 2
Toccata
™
Top-mount Kitchen Sink
K-3847-4
Technical Information
All product dimensions are nominal.
Double equalBowl configuration:
Top-mountInstallation:
Cutout:
Bowl area (Left)
Bowl area (Right)
Top-mount, 32-1/2" x 21-1/2" (826 mm x
546 mm) with 1/2" (13 mm) radius corners
Length: 14-3/16" (360 mm)
Width: 15-3/4" (400 mm)
Bowl depth: 9" (229 mm)
Length: 14-3/16" (360 mm)
Width: 15-3/4" (400 mm)
Bowl depth: 9" (229 mm)
4Number of deck holes:
1-7/16" (37 mm)Faucet hole(s):
3-5/8" (92 mm)Drain hole:
Notes
Install this product according to the installation
guide.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-1-2015 03:13
