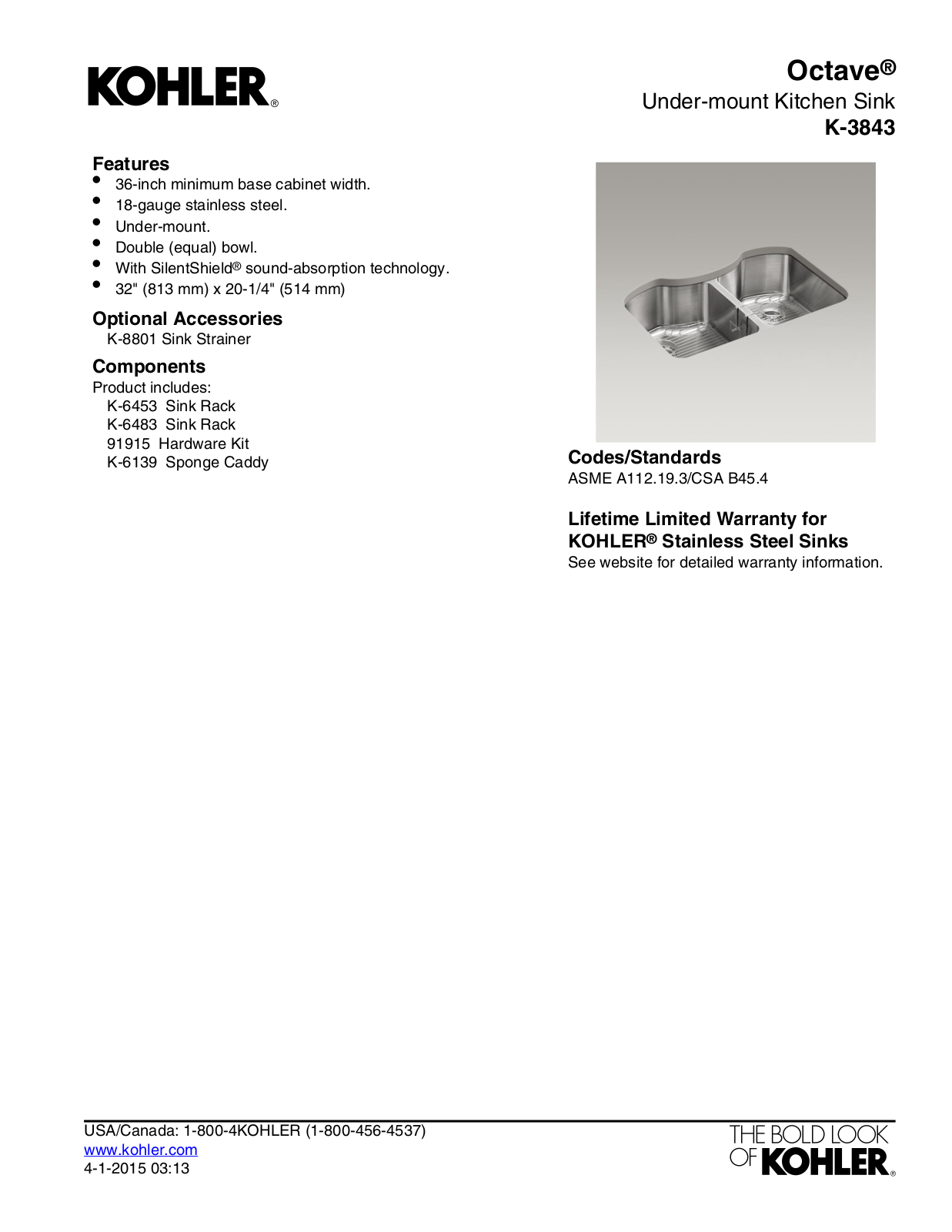

Page 1
Features
•
36-inch minimum base cabinet width.
•
18-gauge stainless steel.
•
Under-mount.
•
Double (equal) bowl.
•
With SilentShield® sound-absorption technology.
•
32" (813 mm) x 20-1/4" (514 mm)
Optional Accessories
K-8801 Sink Strainer
Components
Product includes:
K-6453 Sink Rack
K-6483 Sink Rack
91915 Hardware Kit
K-6139 Sponge Caddy
Octave
Under-mount Kitchen Sink
K-3843
Codes/Standards
ASME A112.19.3/CSA B45.4
Lifetime Limited Warranty for
KOHLER® Stainless Steel Sinks
See website for detailed warranty information.
®
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-1-2015 03:13

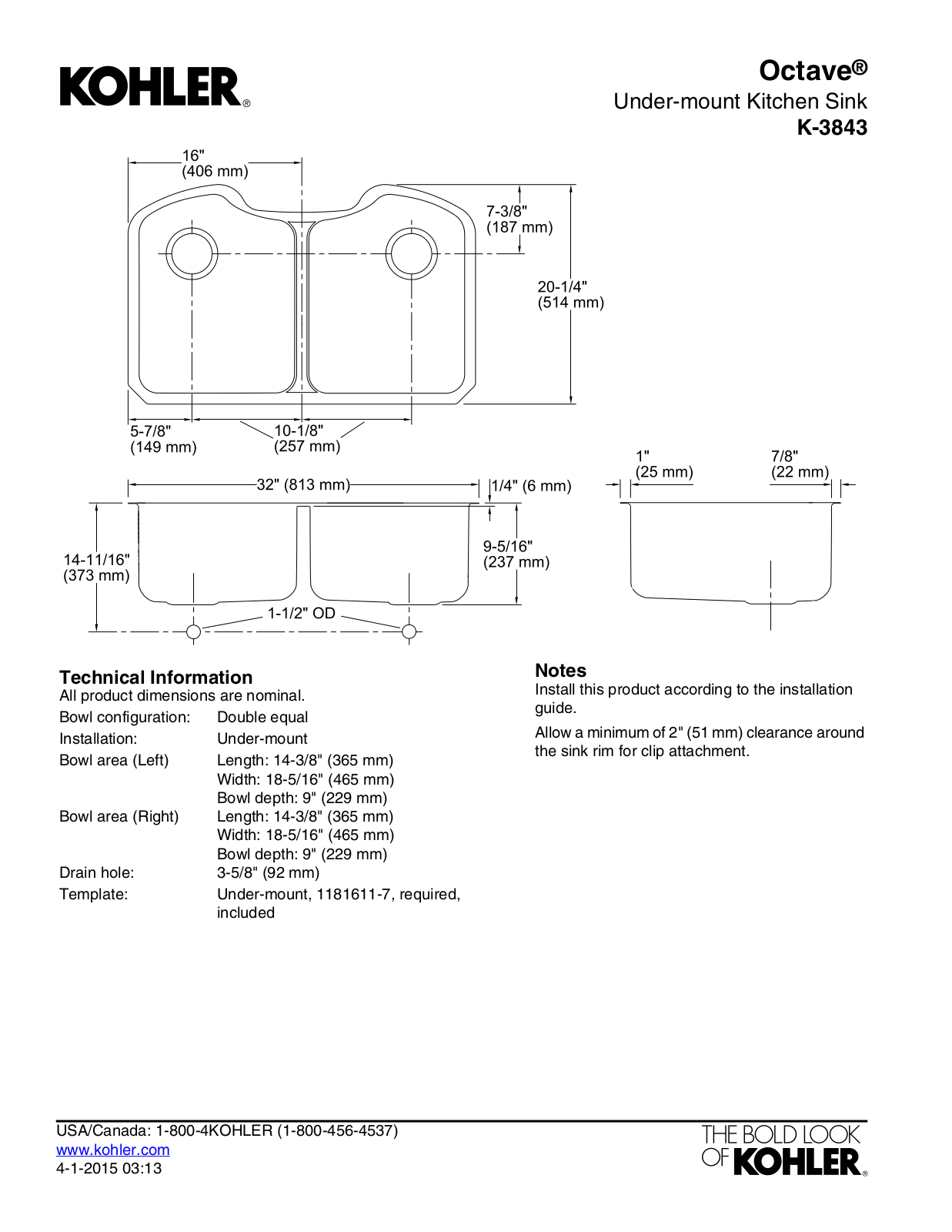

Page 2
Octave
®
Under-mount Kitchen Sink
K-3843
Technical Information
All product dimensions are nominal.
Double equalBowl configuration:
Under-mountInstallation:
Bowl area (Left)
Bowl area (Right)
Template:
Length: 14-3/8" (365 mm)
Width: 18-5/16" (465 mm)
Bowl depth: 9" (229 mm)
Length: 14-3/8" (365 mm)
Width: 18-5/16" (465 mm)
Bowl depth: 9" (229 mm)
3-5/8" (92 mm)Drain hole:
Under-mount, 1181611-7, required,
included
Notes
Install this product according to the installation
guide.
Allow a minimum of 2" (51 mm) clearance around
the sink rim for clip attachment.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-1-2015 03:13
