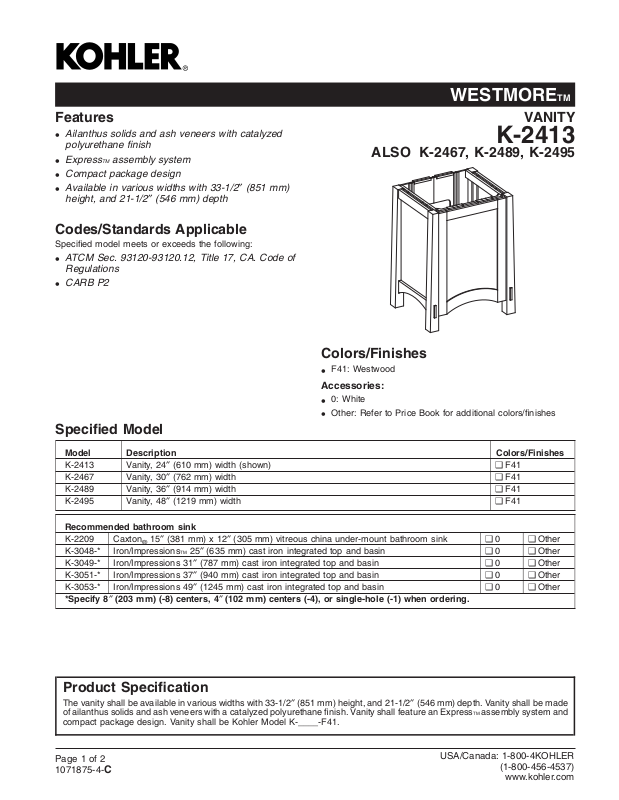

Page 1
WESTMORETM
Features
Ailanthus solids and ash veneers with catalyzed
•
polyurethane finish
Express
•
Compact package design
•
Available in various widths with 33-1/2″ (851 mm)
•
height, and 21-1/2″ (546 mm) depth
TM assembly system
Codes/Standards Applicable
Specified model meets or exceeds the following:
ATCM Sec. 93120-93120.12, Title 17, CA. Code of
•
Regulations
CARB P2
•
Specified Model
VANITY
K-2413
ALSO K-2467, K-2489, K-2495
Colors/Finishes
F41: Westwood
•
Accessories:
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-2413 Vanity, 24″ (610 mm) width (shown) ❑ F41
K-2467 Vanity, 30″ (762 mm) width ❑ F41
K-2489 Vanity, 36″ (914 mm) width ❑ F41
K-2495 Vanity, 48″ (1219 mm) width ❑ F41
Recommended bathroom sink
K-2209 Caxton
K-3048-* Iron/Impressions
K-3049-* Iron/Impressions 31″ (787 mm) cast iron integrated top and basin ❑ 0 ❑ Other
K-3051-* Iron/Impressions 37″ (940 mm) cast iron integrated top and basin ❑ 0 ❑ Other
K-3053-* Iron/Impressions 49″ (1245 mm) cast iron integrated top and basin ❑ 0 ❑ Other
*Specify 8″ (203 mm) (-8) centers, 4″ (102 mm) centers (-4), or single-hole (-1) when ordering.
15″ (381 mm) x 12″ (305 mm) vitreous china under-mount bathroom sink ❑ 0 ❑ Other
®
TM 25″ (635 mm) cast iron integrated top and basin ❑ 0 ❑ Other
Product Specification
The vanity shall be available in various widths with 33-1/2″ (851 mm) height, and 21-1/2″ (546 mm) depth. Vanity shall be made
of ailanthus solids and ash veneers with a catalyzed polyurethane finish. Vanity shall feature an Express
compact package design. Vanity shall be Kohler Model K-____-F41.
TM assembly system and
Page 1 of 2
1071875-4-
USA/Canada: 1-800-4KOHLER
C
(1-800-456-4537)
www.kohler.com
Page 2
WESTMORETM
Recommended Accessories
K-2418 Drawer accessory – rail-mount installation ❑ NA
K-2419 Door accessory – door-mount installation ❑ NA
K-2504 Vertical wall-mount mirror, 24″ (610 mm) x 33″ (838 mm) x 1″ (25 mm) ❑ F41
Installation Notes
Install this product according to the installation guide.
Decorative cabinet hardware is supplied. Refer to the Kohler
bath accessories line for additional decorative cabinet
hardware to complement your vanity.
K-2413
K-2467, K-2489
1/4"
(6 mm)
Hinges
at Left
3-1/2"
(89 mm)
4" (102 mm)
2-1/2"
(64 mm)
24" (610 mm)
20-1/2"
(521 mm)
25-1/2"
(648 mm)
1/4"
(6 mm)
21-1/2"
(546 mm)
29-3/16"
(741 mm)
48" (1219 mm)
33-1/2"
(851 mm)
K-2495
30" (762 mm)
36" (914 mm)
26-1/2" (673 mm)
32-1/2" (826 mm)
31-1/2" (800 mm)
37-1/2" (953 mm)
21-1/2"
(546 mm)
21-1/2"
(546 mm)
1/4"
(6 mm)
29-5/8"
(752 mm)
4" (102 mm)
33-3/16"
(843 mm)
WESTMORETM VANITY
Page2of2
1071875-4-
C
3-1/2"
(89 mm)
44-1/2" (1130 mm)
49-1/2" (1257 mm)
Product Diagram
29-3/16"
(741 mm)
4" (102 mm)
2-1/2" (64 mm)
33-1/2"
(851 mm)
