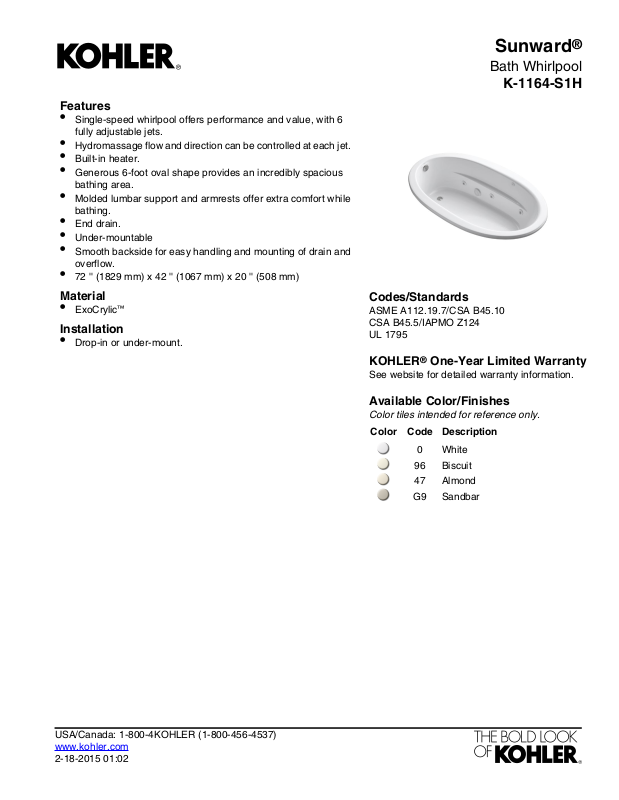

Page 1
Features
•
Single-speed whirlpool offers performance and value, with 6
fully adjustable jets.
•
Hydromassage flow and direction can be controlled at each jet.
•
Built-in heater.
•
Generous 6-foot oval shape provides an incredibly spacious
bathing area.
•
Molded lumbar support and armrests offer extra comfort while
bathing.
•
End drain.
•
Under-mountable
•
Smooth backside for easy handling and mounting of drain and
overflow.
•
72 '' (1829 mm) x 42 '' (1067 mm) x 20 '' (508 mm)
Sunward
®
Bath Whirlpool
K-1164-S1H
Material
•
ExoCrylic
™
Installation
•
Drop-in or under-mount.
Codes/Standards
ASME A112.19.7/CSA B45.10
CSA B45.5/IAPMO Z124
UL 1795
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
SandbarG9
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 01:02
Page 2
Detalle del borde
Sunward
®
Bath Whirlpool
K-1164-S1H
Required Electrical Service
Two dedicated circuits required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device
(RCD).
120 V, 15 A, 60 HzPump:
120 V, 15 A, 60 HzHeater:
Technical Information
All product dimensions are nominal.
Drop-in/UndermountInstallation:
ReversibleDrain location:
55-1/4" x 23-1/2" (1403 mm x 597 mm)Basin area, bottom:
64-1/2" x 32" (1638 mm x 813 mm)Basin area, top:
112 lbs (50.8 kg)Weight:
37 lbs/ft² (180.6 kg/m²)Minimum floor load:
75 gal (283.9 L)Water capacity:
Template:
Electrical rating:
Drop-in, 1042557-7, not required, not
included
K-577Under-mount kit:
Pump: 120 V, 7.5 A, 60 Hz
Heater: 120 V, 12.5 A, 60 Hz, 1500 W
Notes
Install this product according to the installation
guide.
The suction line extends 4-3/4" (121 mm) beyond
the edge of the rim. The pump base extends 1/8"
(3 mm) beyond the edge of the rim. Modify the
framing as needed.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 01:02
