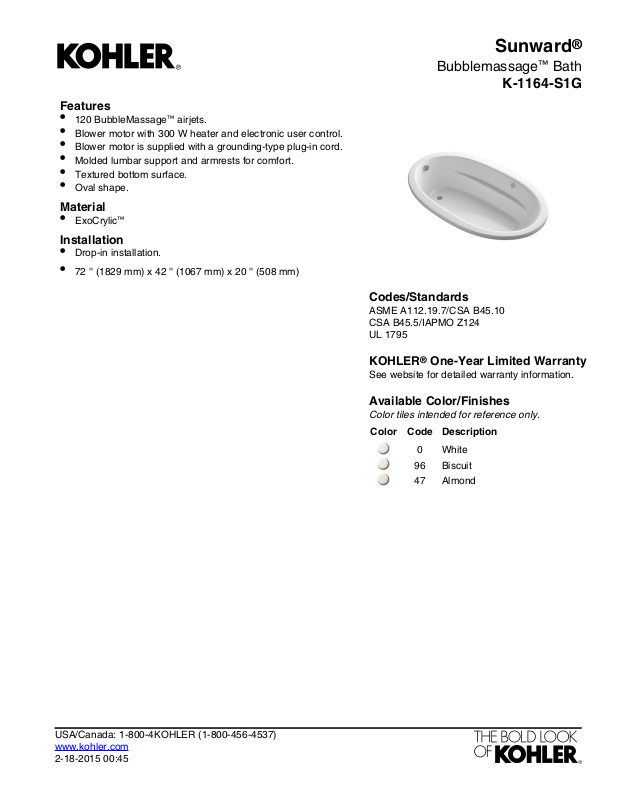

Page 1
Features
•
120 BubbleMassage™ airjets.
•
Blower motor with 300 W heater and electronic user control.
•
Blower motor is supplied with a grounding-type plug-in cord.
•
Molded lumbar support and armrests for comfort.
•
Textured bottom surface.
•
Oval shape.
Material
•
ExoCrylic
™
Installation
•
Drop-in installation.
•
72 '' (1829 mm) x 42 '' (1067 mm) x 20 '' (508 mm)
Sunward
Bubblemassage™ Bath
Codes/Standards
ASME A112.19.7/CSA B45.10
CSA B45.5/IAPMO Z124
UL 1795
®
K-1164-S1G
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 00:45
Page 2

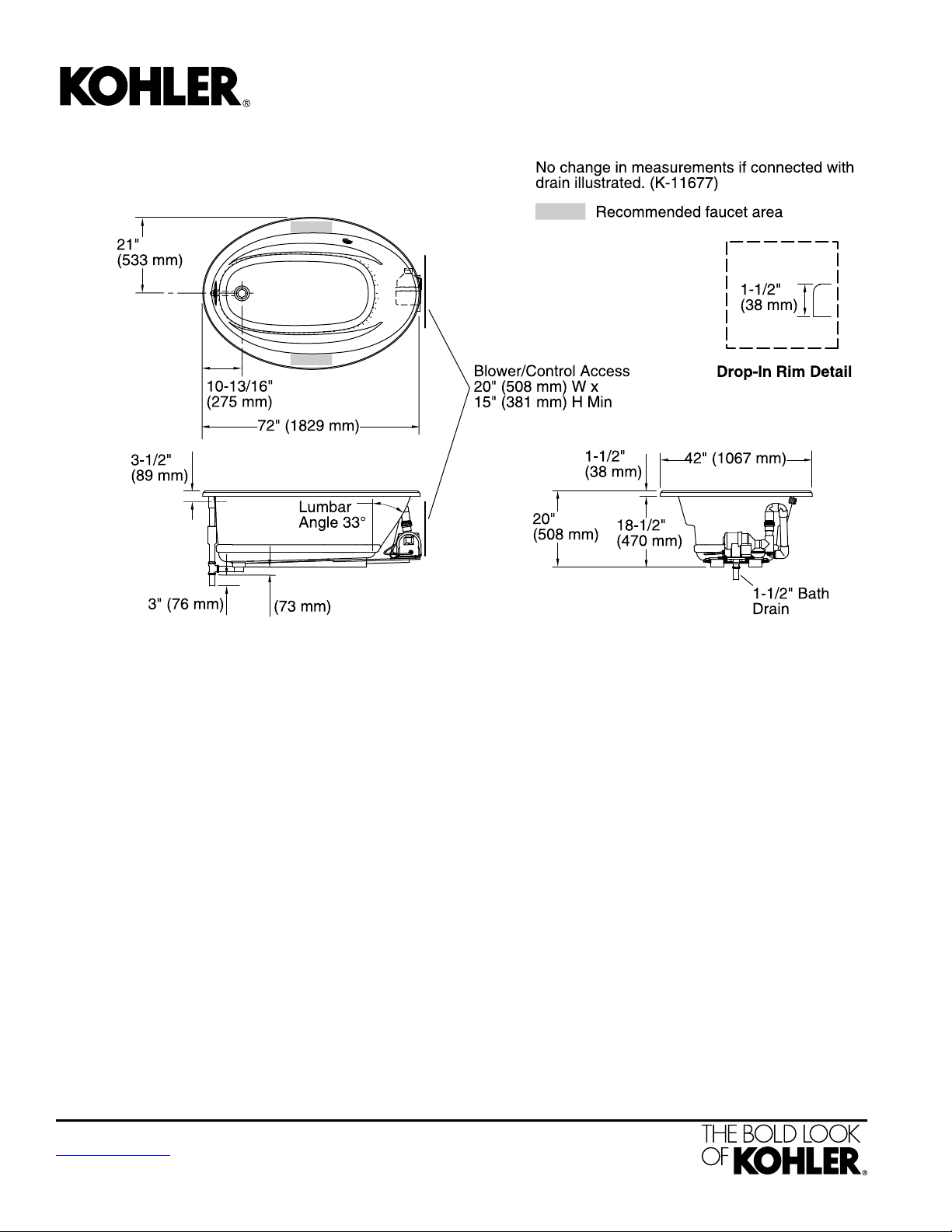

2-7/8"
Sunward
®
Bubblemassage™ Bath
K-1164-S1G
Required Electrical Service
One dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device
(RCD).
120 V, 5 A, 60 HzBlower:
Technical Information
All product dimensions are nominal.
Drop-inInstallation:
ReversibleDrain location:
55-1/4" x 23-1/2" (1403 mm x 597 mm)Basin area, bottom:
64-1/2" x 32-1/8" (1638 mm x 816 mm)Basin area, top:
110 lbs (49.9 kg)Weight:
35 lbs/ft² (170.9 kg/m²)Minimum floor load:
15" (381 mm)Water depth:
75 gal (283.9 L)Water capacity:
Template:
Drop-in, 1042557-7, not required, not
included
K-577Under-mount kit:
Blower: 120 V, 5 A, 60 HzElectrical rating:
Notes
Install this product according to the installation
guide.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 00:45
