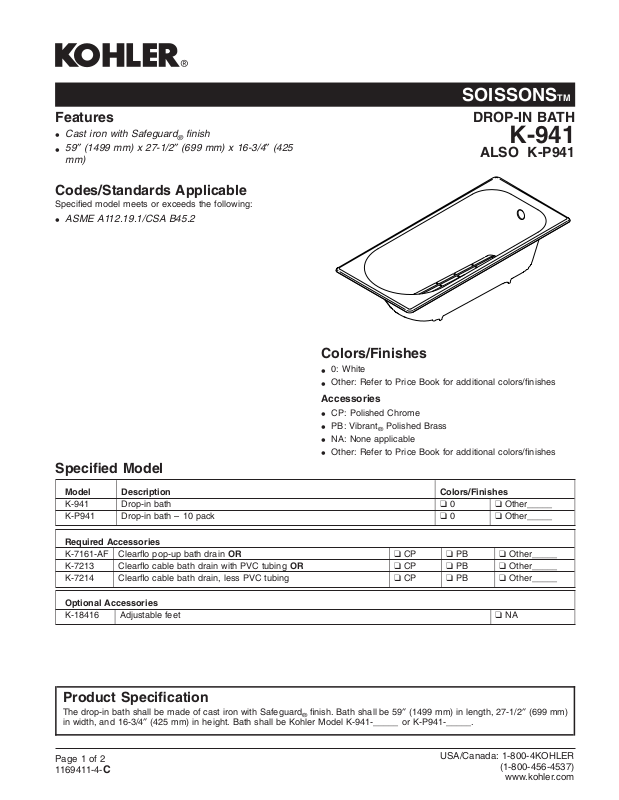

Kohler KOH20621 Specifications

SOISSONSTM

Features

Cast iron with Safeguard

•
59″ (1499 mm) x 27-1/2″ (699 mm) x 16-3/4″ (425

•

mm)

®

finish

Codes/Standards Applicable

Specified model meets or exceeds the following:

ASME A112.19.1/CSA B45.2

•

Specified Model

DROP-IN BATH

K-941

ALSO K-P941

Colors/Finishes

0: White

•

Other: Refer to Price Book for additional colors/finishes

•

Accessories

CP: Polished Chrome

•

PB: Vibrant®Polished Brass

•

NA: None applicable

•

Other: Refer to Price Book for additional colors/finishes

•

Model Description Colors/Finishes

K-941 Drop-in bath ❑ 0 ❑ Other_____
K-P941 Drop-in bath – 10 pack ❑ 0 ❑ Other_____

Required Accessories

K-7161-AF Clearflo pop-up bath drain OR ❑ CP ❑ PB ❑ Other_____
K-7213 Clearflo cable bath drain with PVC tubing OR ❑ CP ❑ PB ❑ Other_____
K-7214 Clearflo cable bath drain, less PVC tubing ❑ CP ❑ PB ❑ Other_____

Optional Accessories

K-18416 Adjustable feet ❑ NA

Product Specification

The drop-in bath shall be made of cast iron with Safeguard®finish. Bath shall be 59″ (1499 mm) in length, 27-1/2″ (699 mm)
in width, and 16-3/4″ (425 mm) in height. Bath shall be Kohler Model K-941-_____ or K-P941-_____.

Page 1 of 2
1169411-4-

C

USA/Canada: 1-800-4KOHLER

(1-800-456-4537)

www.kohler.com

SOISSONSTM

Technical Information

Fixture*:
Bathing Well:
Basin area, top 51-7/16″ (1307 mm) x

21-15/16″ (557 mm)

Basin area, bottom 43-7/8″ (1114 m m) x

17-5/16″ (440 mm)

Weight 232 lbs (111.4 kg)
To Overflow:
Water depth 11-5/16″ (287 mm)
Capacity 33.4 gal (126.4 L)
* Approximate measurements for comparison only.

Drop-in cut-out 57-1/2″ (1461 mm) x 26″ (660 mm)

59" (1499 mm)

11-1/2" (292 mm)

Installation Notes

Install this product according to the installation guide.

Floor support under the bath must provide for a minimum of
50 lbs/square foot (242 kg/square meter) loading.

Hot water supply should be 70% of capacity or greater.
Installations will vary.

This bath is designed for drop-in installation only. It is not
suited for use in a three-wall alcove with an overhead shower.

No change in measurement if connected with
drain illustrated. (K-7161-AF)

27-1/2"
(699 mm)

16"
(406 mm)

SOISSONSTM DROP-IN BATH
Page2of2

1169411-4-

C

1/4" (6 mm)

2-7/8"
(73 mm)

13-3/4"
(349 mm)

3-5/8"
(92 mm)

3-5/16"
(84 mm)

16-3/4"
(425 mm)

3"

1-1/2" OD

(76 mm)

Product Diagram

11-7/8"
(302 mm)

9/16"
(14 mm)

5-3/4"
(146 mm)
