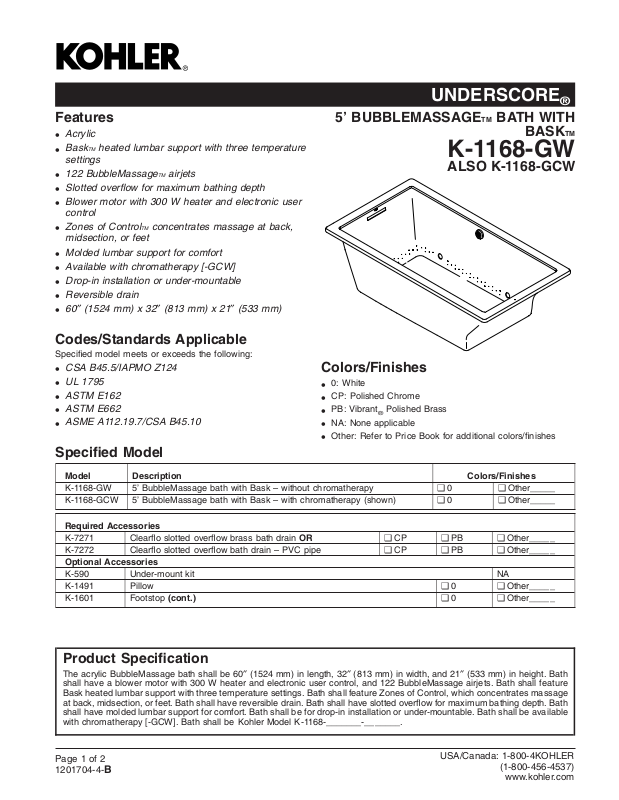

UNDERSCORE
®
Features
Acrylic
•
TM heated lumbar support with three temperature
Bask
•
settings
122 BubbleMassage
•
Slotted overflow for maximum bathing depth
•
Blower motor with 300 W heater and electronic user
•
control
Zones of Control
•
midsection, or feet
Molded lumbar support for comfort
•
Available with chromatherapy [-GCW]
•
Drop-in installation or under-mountable
•
Reversible drain
•
60″ (1524 mm) x 32″ (813 mm) x 21″ (533 mm)
•
TM airjets
TM concentrates massage at back,
Codes/Standards Applicable
Specified model meets or exceeds the following:
CSA B45.5/IAPMO Z124
•
UL 1795
•
ASTM E162
•
ASTM E662
•
ASME A112.19.7/CSA B45.10
•
Specified Model
5’ BUBBLEMASSAGETM BATH WITH
BASKTM
K-1168-GW
ALSO K-1168-GCW
Colors/Finishes
0: White
•
CP: Polished Chrome
•
PB: Vibrant®Polished Brass
•
NA: None applicable
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-1168-GW 5’ BubbleMassage bath with Bask – without chromatherapy ❑ 0 ❑ Other_____
K-1168-GCW 5’ BubbleMassage bath with Bask – with chromatherapy (shown) ❑ 0 ❑ Other_____
Required Accessories
K-7271 Clearflo slotted overflow brass bath drain OR ❑ CP ❑ PB ❑ Other_____
K-7272 Clearflo slotted overflow bath drain – PVC pipe ❑ CP ❑ PB ❑ Other_____
Optional Accessories
K-590 Under-mount kit NA
K-1491 Pillow ❑ 0 ❑ Other_____
K-1601 Footstop (cont.) ❑ 0 ❑ Other_____
Product Specification
The acrylic BubbleMassage bath shall be 60″ (1524 mm) in length, 32″ (813 mm) in width, and 21″ (533 mm) in height. Bath
shall have a blower motor with 300 W heater and electronic user control, and 122 BubbleMassage airjets. Bath shall feature
Bask heated lumbar support with three temperature settings. Bath shall feature Zones of Control, which concentrates massage
at back, midsection, or feet. Bath shall have reversible drain. Bath shall have slotted overflow for maximum bathing depth. Bath
shall have molded lumbar support for comfort. Bath shall be for drop-in installation or under-mountable. Bath shall be available
with chromatherapy [-GCW]. Bath shall be Kohler Model K-1168-_______-_______.
Page 1 of 2
1201704-4-
B
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
UNDERSCORE
(cont.) Optional Accessories
K-1705 Remote control NA
K-9498 3″ (76 mm) whirlpool keypad trim ❑ CP ❑ PB ❑ Other_____
K-1013469 Trim ring, interface, core ❑ CP ❑ PB ❑ Other_____
®
Technical Information
Fixture*:
Bathing well:
Basin area,
bottom
Basin area, top 55-1/8″ (1400 mm) x 27-1/8″
Weight 106 lbs (48.1 kg)
To overflow:
Water depth 17-1/8″ (435 mm)
Capacity 81 gal (306.6 L)
* Approximate measurements for comparison only.
Blower motor/Heated surface 220-240 50/60 5
12-5/8"
(321 mm)
16"
(406 mm)
42″ (1067 mm) x 23-1/2″ (597 mm)
(689 mm)
VHzA
Drop-in cutout 59-1/2″ (1511 mm) x 31-1/2″ (800 mm)
Required Electrical Service
Dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI) or Residual
Current Device (RCD):
Blower motor/Heated
surface
220-240 V, 15 A, 50/60 Hz
Installation Notes
Install this product according to the installation guide.
Floor support under bath must provide for a minimum of 55
lbs/square foot (268 kg/square meter) loading.
Hot water supply should be 70% of capacity or greater.
Installations will vary.
No change in measurements if connected with
drain illustrated. (K-7272)
60" (1524 mm)
2-1/4"
(57 mm)
4-1/8"
1/2" (13 mm)
Lumbar Angle 34˚
(105 mm)
Product Diagram
UNDERSCORE®5’ BUBBLEMASSAGETM BATH WITH BASKTM
Page2of2
1201704-4-
B
Blower Motor/
Control Access
30" (762 mm) W x
15" (381 mm) H Min
1"
(25 mm)
22"
(559 mm)
21"
(533 mm)
32" (813 mm)
1-1/2"
Bath Drain
