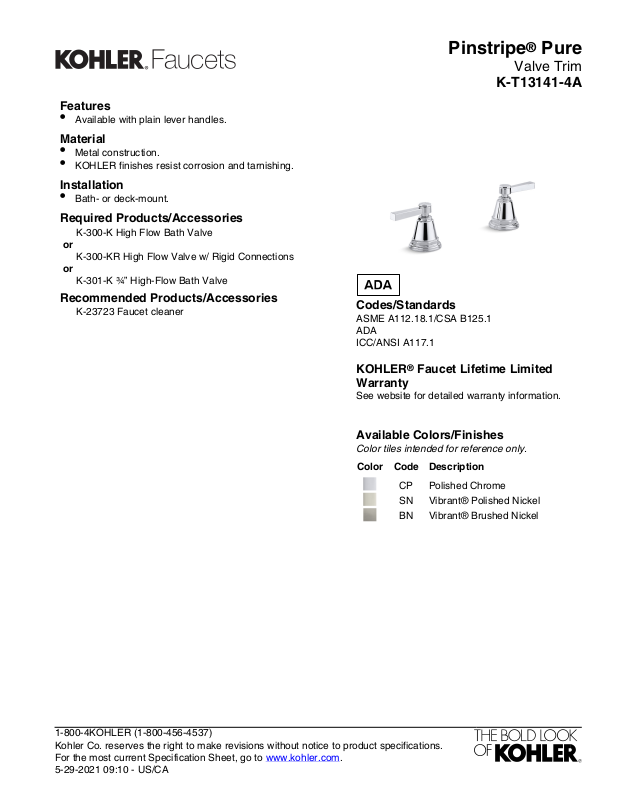

Page 1
Pinstripe® Pure
Features
•
Available with plain lever handles.
Material
•
Metal construction.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Bath- or deck-mount.
Required Products/Accessories
K-300-K High Flow Bath Valve
or
K-300-KR High Flow Valve w/ Rigid Connections
or
K-301-K ¾” High-Flow Bath Valve
Recommended Products/Accessories
K-23723 Faucet cleaner
Codes/Standards
ASME A112.18.1/CSA B125.1
ADA
ICC/ANSI A117.1
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
SN Vibrant® Polished Nickel
BN Vibrant® Brushed Nickel
Valve Trim
K-T13141-4A
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 09:10 - US/CA
Page 2
Pinstripe® Pure
3" (76 mm)
3-9/16" (90 mm) To
4-1/16" (103 mm)
Ø 2-1/2" (64 mm)
Technical Information
All product dimensions are nominal.
Notes
Install this product according to the installation
instructions.
ADA compliant when installed to the specific
requirements of these regulations.
Valve Trim
K-T13141-4A
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-29-2021 09:10 - US/CA
