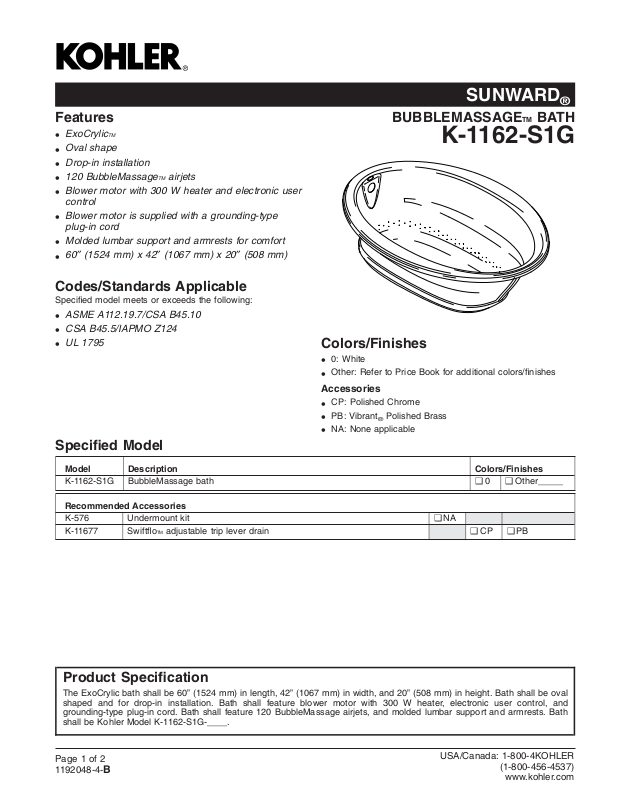

Page 1
SUNWARD
®
Features
ExoCrylic
•
Oval shape
•
Drop-in installation
•
120 BubbleMassage
•
Blower motor with 300 W heater and electronic user
•
control
Blower motor is supplied with a grounding-type
•
plug-in cord
Molded lumbar support and armrests for comfort
•
60″ (1524 mm) x 42″ (1067 mm) x 20″ (508 mm)
•
TM
TM airjets
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.19.7/CSA B45.10
•
CSA B45.5/IAPMO Z124
•
UL 1795
•
Specified Model
BUBBLEMASSAGETM BATH
K-1162-S1G
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
CP: Polished Chrome
•
PB: Vibrant®Polished Brass
•
NA: None applicable
•
Model Description Colors/Finishes
K-1162-S1G BubbleMassage bath ❑ 0 ❑ Other_____
Recommended Accessories
K-576 Undermount kit ❑ NA
K-11677 Swiftflo
TM adjustable trip lever drain ❑ CP ❑ PB
Product Specification
The ExoCrylic bath shall be 60” (1524 mm) in length, 42” (1067 mm) in width, and 20” (508 mm) in height. Bath shall be oval
shaped and for drop-in installation. Bath shall feature blower motor with 300 W heater, electronic user control, and
grounding-type plug-in cord. Bath shall feature 120 BubbleMassage airjets, and molded lumbar support and armrests. Bath
shall be Kohler Model K-1162-S1G-____.
Page 1 of 2
1192048-4-
B
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
SUNWARD
®
Technical Information
Required Electrical Service
Fixture*:
Bathing well:
Basin area,
bottom
Basin area,
top
Weight 110 lbs (50 kg)
To overflow:
Water depth 15″ (381 mm)
Capacity 57 gal (215.9 L)
* Approximate measurements for comparison only.
Included components:
Cutout template 1042556-7
Blower motor Heater V Hz A
43″ (1092 mm) x 21-9/16″ (548 mm)
53-1/2″ (1359 mm) x 32-1/8″ (816 mm)
300 W 120 60 10
Dedicated circuit required, protected with a Class A
Ground-Fault Circuit-Interrupter (GFCI):
Pump/control 120 V, 15 A, 60 Hz
Locate the outlet behind the bath and within 24″
(610 mm) of the blower.
Installation Notes
Install this product according to the installation guide.
Floor support under bath must provide for a minimum of 35
lbs/square foot (171 kg/square meter) loading.
No change in measurements if connected with
drain illustrated. (K-11677)
Recommended faucet area
21"
(533 mm)
3-1/2"
(89 mm)
3" (76 mm)
10-13/16"
(275 mm)
60" (1524 mm)
2-7/8"
(73 mm)
Blower/Control Access
20" (508 mm) W x
15" (381 mm) H Min
Lumbar
Angle 33˚
Product Diagram
20"
(508 mm)
1-1/2"
42" (1067 mm)
(38 mm)
18-1/2"
(470 mm)
1-1/2" Bath Drain
1-1/2"
(38 mm)
Drop-In Rim Detail
SUNWARD®BUBBLEMASSAGETM BATH
Page2of2
1192048-4-
B
