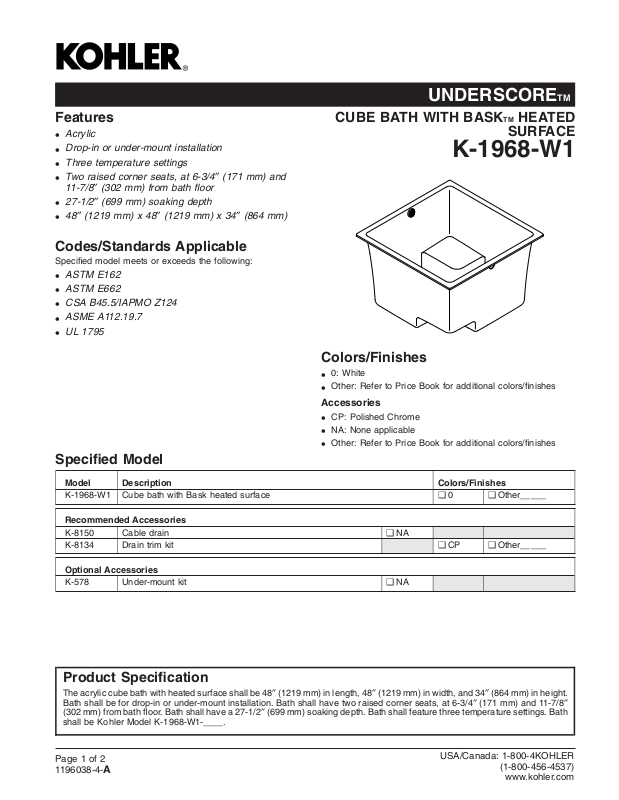

Page 1
UNDERSCORETM
Features
Acrylic
•
Drop-in or under-mount installation
•
Three temperature settings
•
Two raised corner seats, at 6-3/4″ (171 mm) and
•
11-7/8″ (302 mm) from bath floor
27-1/2″ (699 mm) soaking depth
•
48″ (1219 mm) x 48″ (1219 mm) x 34″ (864 mm)
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASTM E162
•
ASTM E662
•
CSA B45.5/IAPMO Z124
•
ASME A112.19.7
•
UL 1795
•
Specified Model
CUBE BATH WITH BASKTM HEATED
SURFACE
K-1968-W1
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
CP: Polished Chrome
•
NA: None applicable
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-1968-W1 Cube bath with Bask heated surface ❑ 0 ❑ Other_____
Recommended Accessories
K-8150 Cable drain ❑ NA
K-8134 Drain trim kit ❑ CP ❑ Other_____
Optional Accessories
K-578 Under-mount kit ❑ NA
Product Specification
The acrylic cube bath with heated surface shall be 48″ (1219 mm) in length, 48″ (1219 mm) in width, and 34″ (864 mm) in height.
Bath shall be for drop-in or under-mount installation. Bath shall have two raised corner seats, at 6-3/4″ (171 mm) and 11-7/8″
(302 mm) from bath floor. Bath shall have a 27-1/2″ (699 mm) soaking depth. Bath shall feature three temperature settings. Bath
shall be Kohler Model K-1968-W1-____.
Page 1 of 2
1196038-4-
A
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
UNDERSCORETM
Technical Information
Fixture*:
Bathing well:
Basin area, bottom 39-3/8″ (1000 mm) x
39-3/8″ (1000 mm)
Basin area, top 44-5/8″ (1134 mm) x
44-5/8″ (1134 mm)
Weight 110 lbs (49.9 kg)
To overflow:
Water depth 27-1/2″ (699 mm)
Capacity 171 gal (647.3 L)
* Approximate measurements for comparison only.
Drop-in cut-out 47″ (1194 mm) x 47″ (1194 mm)
Heater: W V HZ A
65 120 60 1.1
Installation Notes
Install this product according to the installation guide.
Locate the bath within 24″ (610 mm) of a GFCI-protected,
120 V, 15 A, grounded electrical outlet.
Floor support under bath must provide for a minimum of 105
lbs/square foot (513 kg/square meter) loading.
Hot water supply should be 70% of capacity or greater.
Installations will vary.
No change in measurements if connected
with drain illustrated. (K-8150)
48"
(1219 mm)
24"
(610 mm)
Access Panel
24"
30" (762 mm) L x 15" (381 mm) H Min
(610 mm)
48" (1219 mm)
1" (25 mm)
3-1/2"
(89 mm)
34"
(864 mm)
3-7/8"
(99 mm)
Product Diagram
UNDERSCORETM CUBE BATH WITH BASKTM HEATED SURFACE
Page2of2
1196038-4-
A
29"
(737 mm)
1-5/8"
(41 mm)
1-1/2" OD
