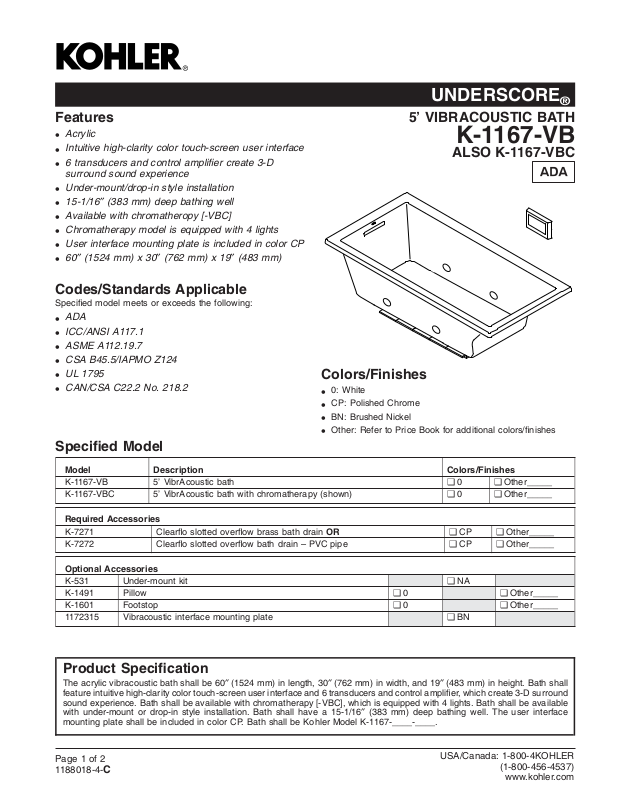

UNDERSCORE
®
Features
Acrylic
•
Intuitive high-clarity color touch-screen user interface
•
6 transducers and control amplifier create 3-D
•
surround sound experience
Under-mount/drop-in style installation
•
15-1/16″ (383 mm) deep bathing well
•
Available with chromatheropy [-VBC]
•
Chromatherapy model is equipped with 4 lights
•
User interface mounting plate is included in color CP
•
60″ (1524 mm) x 30″ (762 mm) x 19″ (483 mm)
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
ADA
•
ICC/ANSI A117.1
•
ASME A112.19.7
•
CSA B45.5/IAPMO Z124
•
UL 1795
•
CAN/CSA C22.2 No. 218.2
•
Specified Model
5’ VIBRACOUSTIC BATH
K-1167-VB
ALSO K-1167-VBC
Colors/Finishes
0: White
•
CP: Polished Chrome
•
BN: Brushed Nickel
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-1167-VB 5’ VibrAcoustic bath ❑ 0 ❑ Other_____
K-1167-VBC 5’ VibrAcoustic bath with chromatherapy (shown) ❑ 0 ❑ Other_____
Required Accessories
K-7271 Clearflo slotted overflow brass bath drain OR ❑ CP ❑ Other_____
K-7272 Clearflo slotted overflow bath drain – PVC pipe ❑ CP ❑ Other_____
Optional Accessories
K-531 Under-mount kit ❑ NA
K-1491 Pillow ❑ 0 ❑ Other_____
K-1601 Footstop ❑ 0 ❑ Other_____
1172315 Vibracoustic interface mounting plate ❑ BN
Product Specification
The acrylic vibracoustic bath shall be 60″ (1524 mm) in length, 30″ (762 mm) in width, and 19″ (483 mm) in height. Bath shall
feature intuitive high-clarity color touch-screen user interface and 6 transducers and control amplifier, which create 3-D surround
sound experience. Bath shall be available with chromatherapy [-VBC], which is equipped with 4 lights. Bath shall be available
with under-mount or drop-in style installation. Bath shall have a 15-1/16″ (383 mm) deep bathing well. The user interface
mounting plate shall be included in color CP. Bath shall be Kohler Model K-1167-____-____.
Page 1 of 2
1188018-4-
C
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
UNDERSCORE

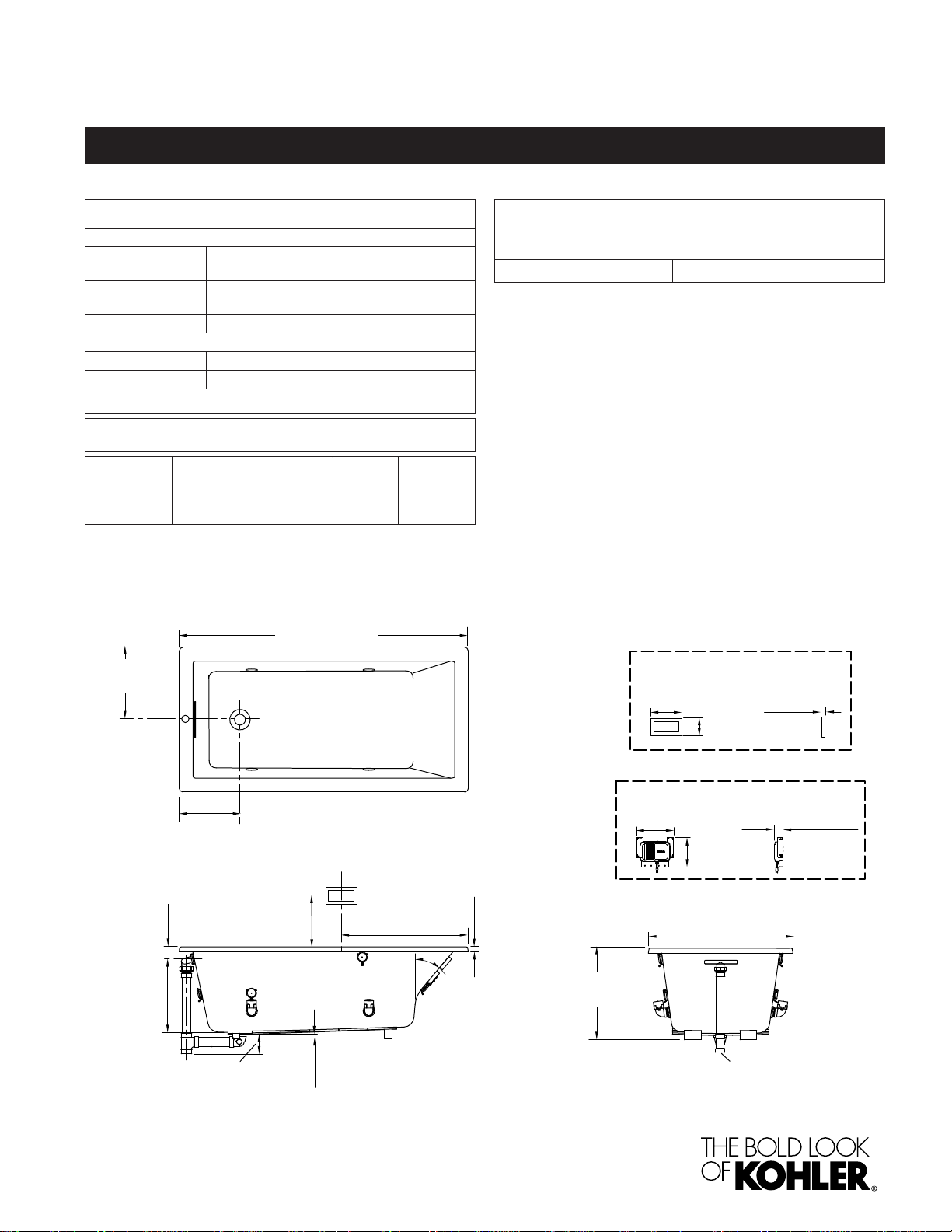

Technical Information
®
Required Electrical Service
Fixture*:
Bathing well:
Basin area,
bottom
Basin area, top 54-3/8″ (1381 mm) x 24-5/16″ (618
Weight 75 lbs (34 kg)
To overflow:
Water depth 15-1/16″ (383 mm)
Capacity 59.8 gal (226 L)
* Approximate measurements for comparison only.
Drop-in cut-out 59-1/2″ (1511 mm) x 28-1/2″ (724 mm)
Amplifier/
control:
42-3/8″ (1076 mm) x 20″ (508 mm)
mm)
Power per channel
(rms) W
15 120 50/60
VHz
60" (1524 mm)
Dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI) or Residual
Current Device (RCD):
Amplifier/control: 120 V, 15 A, 50/60 Hz
Installation Notes
Install this product according to the installation guide.
Will comply with ADA when installed per Section 607
Bathtubs of the Act.
Control amplifier fits 16″ (406 mm) center studs. 25’ (7.6 m)
cables are included.
A grounded outlet within the wall framing must be within 24″
(610 mm) of the planned control amplifier.
Floor support under bath must provide for a minimum of 50
lbs/square foot (242 kg/square meter) loading.
Ensure that the bath, user interface, amplifier, and
transducers are functional before completing the installation.
No change in measurement if connected with
drain illustrated. (K-7272)
15"
(381 mm)
2-1/2"
(64 mm)
15-11/16"
(398 mm)
12-5/8"
(321 mm)
4-1/8"
(105 mm)
*10"
(254 mm)
13/16"
(21 mm)
*24"
(610 mm)
1"
(25 mm)
Lumbar
Angle 40˚
*Recommended User
Interface Location
19"
(483 mm)
5-5/8"
(143 mm)
14-1/2"
(368 mm)
Control Amplifier
7/8"
(22 mm)
3-1/2"
(89 mm)
User Interface
3-3/16"
(81 mm)
11-3/4"
(298 mm)
30"
(762 mm)
1-1/2" Bath Drain
UNDERSCORE®5’ VIBRACOUSTIC BATH
Page2of2
1188018-4-
C
