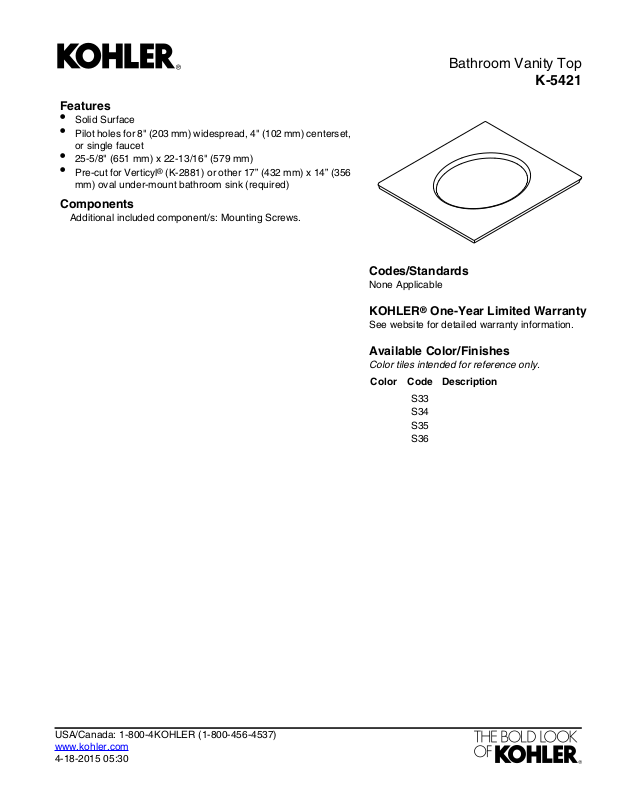

Page 1
Features
•
Solid Surface
•
Pilot holes for 8" (203 mm) widespread, 4" (102 mm) centerset,
or single faucet
•
25-5/8" (651 mm) x 22-13/16" (579 mm)
•
Pre-cut for Verticyl® (K-2881) or other 17” (432 mm) x 14” (356
mm) oval under-mount bathroom sink (required)
Components
Additional included component/s: Mounting Screws.
Bathroom Vanity Top
K-5421
Codes/Standards
None Applicable
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
S33
S34
S35
S36
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-18-2015 05:30
Page 2
10-15/16"
Bathroom Vanity Top
K-5421

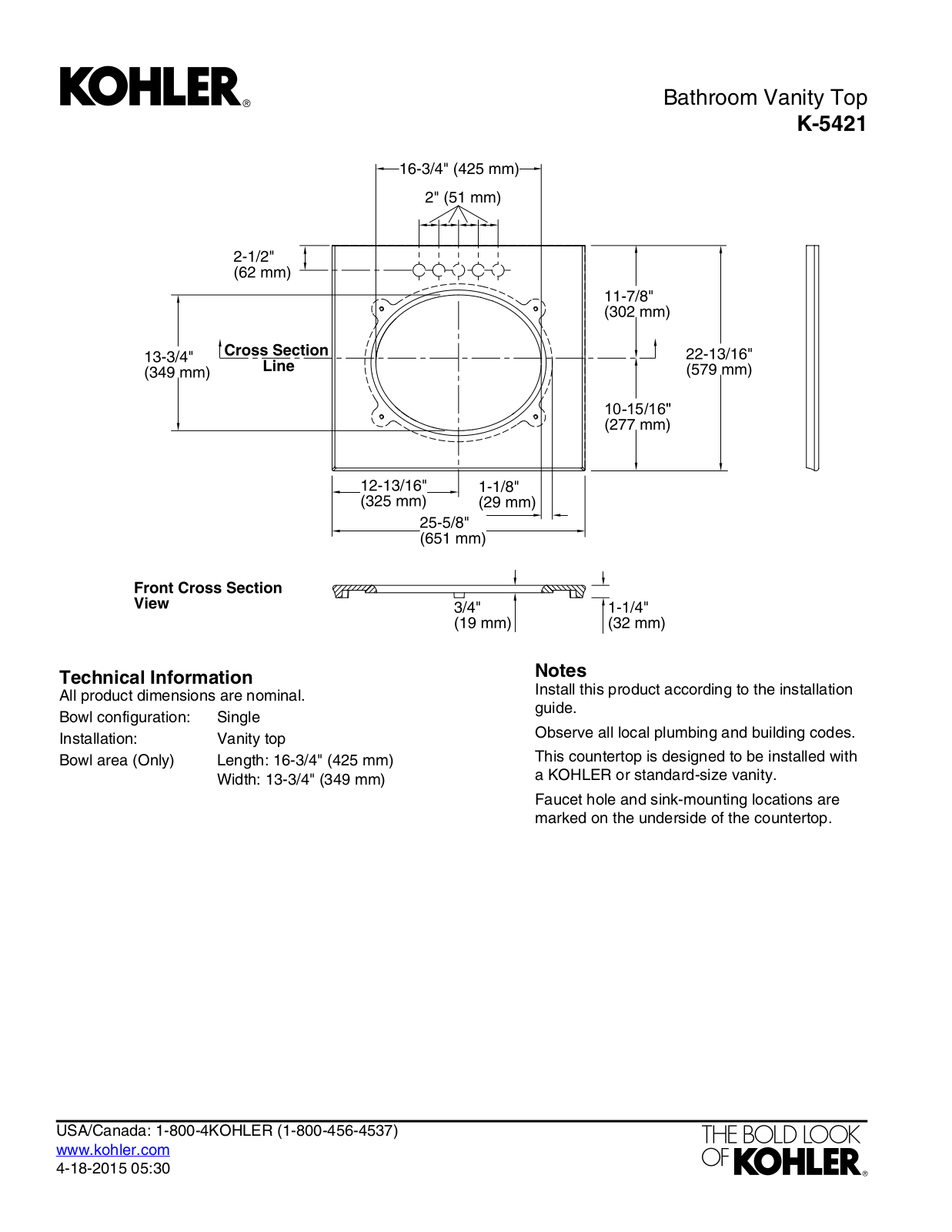

Technical Information
All product dimensions are nominal.
SingleBowl configuration:
Vanity topInstallation:
Bowl area (Only)
Length: 16-3/4" (425 mm)
Width: 13-3/4" (349 mm)
Notes
Install this product according to the installation
guide.
Observe all local plumbing and building codes.
This countertop is designed to be installed with
a KOHLER or standard-size vanity.
Faucet hole and sink-mounting locations are
marked on the underside of the countertop.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-18-2015 05:30
