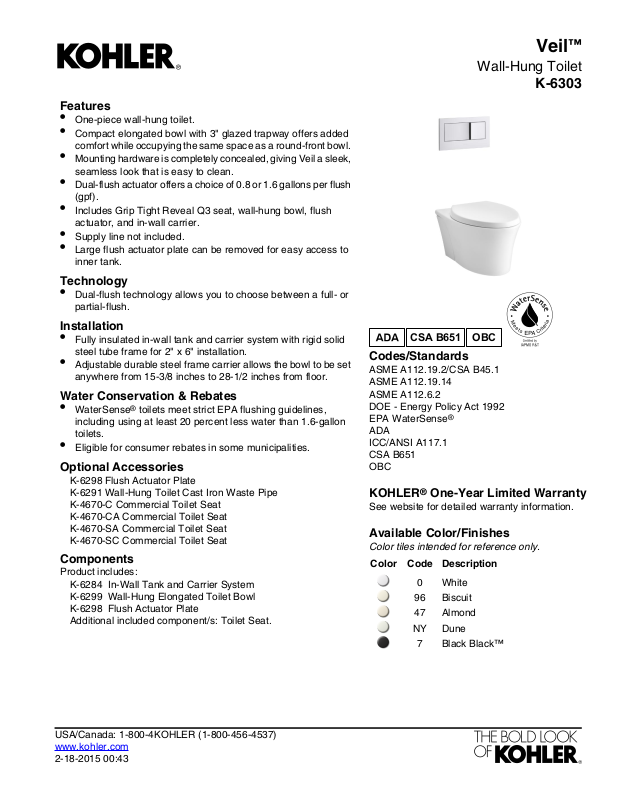

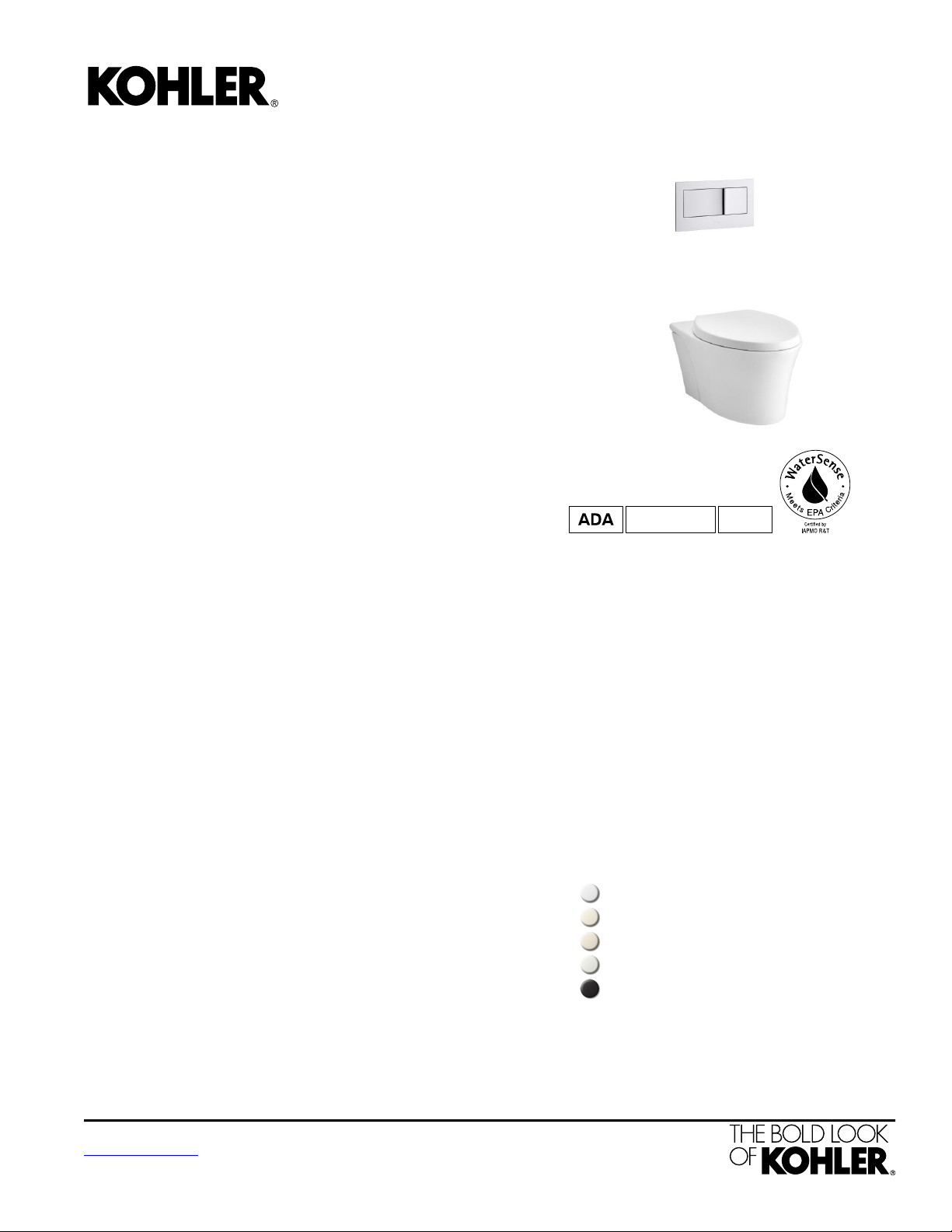

Features
CSA B651
OBC
•
One-piece wall-hung toilet.
•
Compact elongated bowl with 3" glazed trapway offers added
comfort while occupying the same space as a round-front bowl.
•
Mounting hardware is completely concealed, giving Veil a sleek,
seamless look that is easy to clean.
•
Dual-flush actuator offers a choice of 0.8 or 1.6 gallons per flush
(gpf).
•
Includes Grip Tight Reveal Q3 seat, wall-hung bowl, flush
actuator, and in-wall carrier.
•
Supply line not included.
•
Large flush actuator plate can be removed for easy access to
inner tank.
Technology
•
Dual-flush technology allows you to choose between a full- or
partial-flush.
Installation
•
Fully insulated in-wall tank and carrier system with rigid solid
steel tube frame for 2" x 6" installation.
•
Adjustable durable steel frame carrier allows the bowl to be set
anywhere from 15-3/8 inches to 28-1/2 inches from floor.
Water Conservation & Rebates
•
WaterSense® toilets meet strict EPA flushing guidelines,
including using at least 20 percent less water than 1.6-gallon
toilets.
•
Eligible for consumer rebates in some municipalities.
Optional Accessories
K-6298 Flush Actuator Plate
K-6291 Wall-Hung Toilet Cast Iron Waste Pipe
K-4670-C Commercial Toilet Seat
K-4670-CA Commercial Toilet Seat
K-4670-SA Commercial Toilet Seat
K-4670-SC Commercial Toilet Seat
Components
Product includes:
K-6284 In-Wall Tank and Carrier System
K-6299 Wall-Hung Elongated Toilet Bowl
K-6298 Flush Actuator Plate
Additional included component/s: Toilet Seat.
Veil
™
Wall-Hung Toilet
K-6303
Codes/Standards
ASME A112.19.2/CSA B45.1
ASME A112.19.14
ASME A112.6.2
DOE - Energy Policy Act 1992
EPA WaterSense
ADA
ICC/ANSI A117.1
CSA B651
OBC
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
®
DescriptionCodeColor
White0
Biscuit96
Almond47
DuneNY
Black Black™7
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 00:43
Page 2

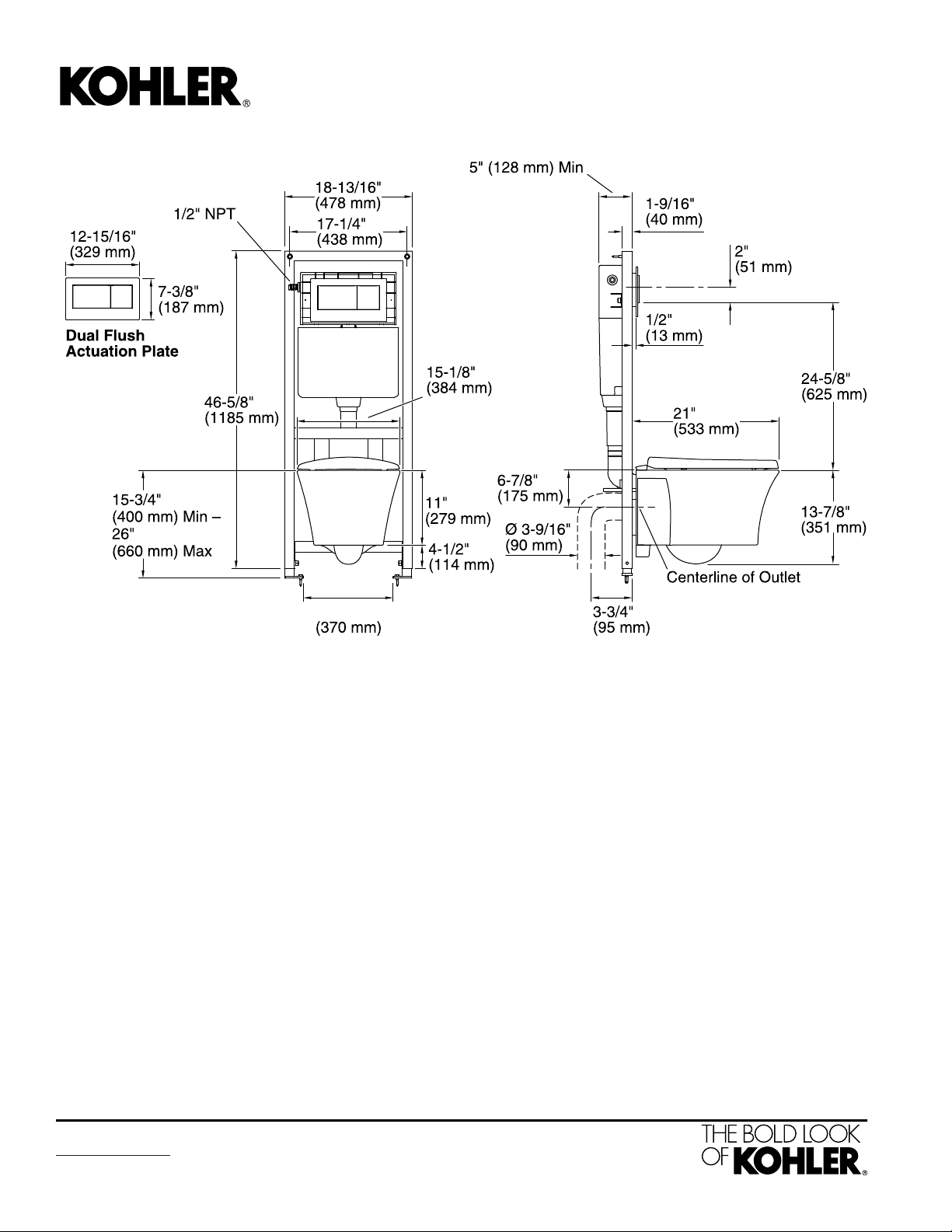

14-9/16"
Veil
™
Wall-Hung Toilet
K-6303
Technical Information
All product dimensions are nominal.
In-wallToilet type:
Elongated frontBowl shape:
3" (76 mm)Trap passageway:
Water Consumption
1.6 gpf (6 lpf)Full:
0.8 gpf (3 lpf)Reduced:
4-1/2" x 5-1/2" (114 mm x 140 mm)Water surface size:
5-1/2" (140 mm)Seat-mounting holes:
Notes
Install this product according to the installation
guide.
Installation requires 2x6 framing.
Refer to manufacturer and local codes for flush
valve requirements.
Install the in-wall tank and carrier system in a wall
opening 5-1/2" (140 mm) x 19" (483 mm) x 50"
(1270 mm) minimum.
K-4670 is the recommended toilet seat for public
use accessible installations.
ADA, OBC, CSA B651 compliant when installed
to the specific requirements of these regulations.
The Model Plumbing Codes require the
installation of elongated open-front toilet seats
on public bathrooms.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 00:43
