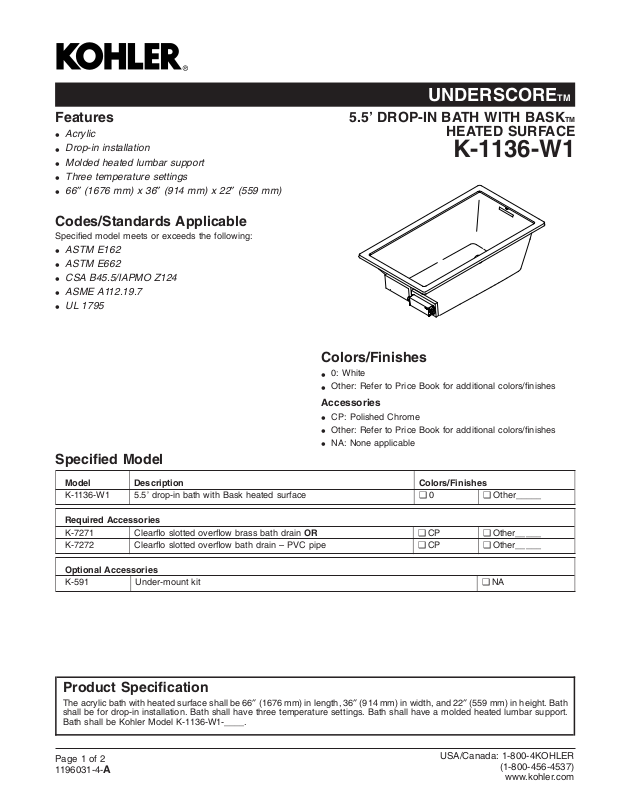

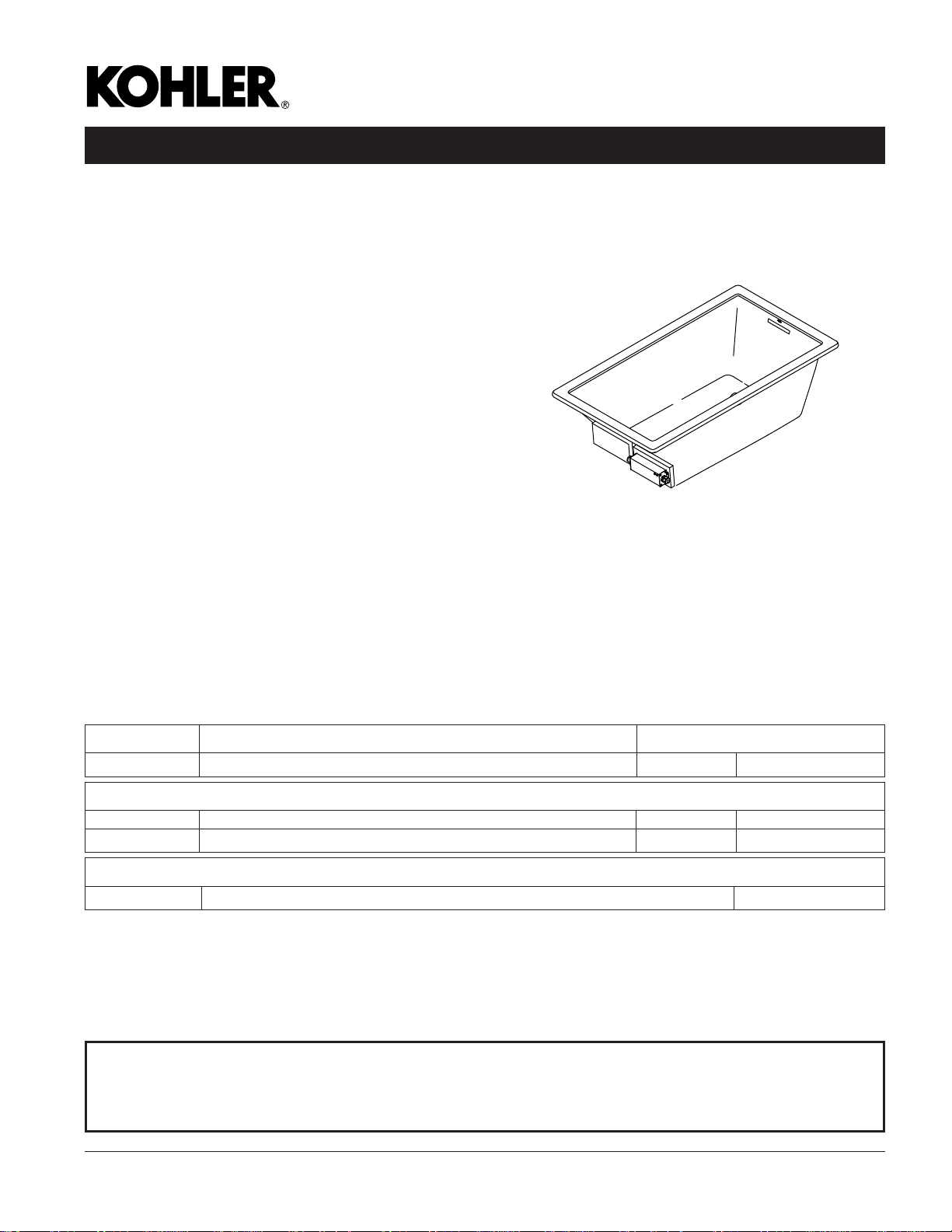

UNDERSCORETM
Features
Acrylic
•
Drop-in installation
•
Molded heated lumbar support
•
Three temperature settings
•
66″ (1676 mm) x 36″ (914 mm) x 22″ (559 mm)
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASTM E162
•
ASTM E662
•
CSA B45.5/IAPMO Z124
•
ASME A112.19.7
•
UL 1795
•
Specified Model
5.5’ DROP-IN BATH WITH BASKTM
HEATED SURFACE
K-1136-W1
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
CP: Polished Chrome
•
Other: Refer to Price Book for additional colors/finishes
•
NA: None applicable
•
Model Description Colors/Finishes
K-1136-W1 5.5’ drop-in bath with Bask heated surface ❑ 0 ❑ Other_____
Required Accessories
K-7271 Clearflo slotted overflow brass bath drain OR ❑ CP ❑ Other_____
K-7272 Clearflo slotted overflow bath drain – PVC pipe ❑ CP ❑ Other_____
Optional Accessories
K-591 Under-mount kit ❑ NA
Product Specification
The acrylic bath with heated surface shall be 66″ (1676 mm) in length, 36″ (914 mm) in width, and 22″ (559 mm) in height. Bath
shall be for drop-in installation. Bath shall have three temperature settings. Bath shall have a molded heated lumbar support.
Bath shall be Kohler Model K-1136-W1-____.
Page 1 of 2
1196031-4-
A
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
UNDERSCORETM
Technical Information
Fixture*:
Bathing well:
Basin area,
bottom
Basin area, top 60-1/4″ (1530 mm) x 30-1/4″ (768
Weight 80 lbs (36.3 kg)
To overflow:
Water depth 17-3/4″ (451 mm)
Capacity 102 gal (386 L)
* Approximate measurements for comparison only.
Drop-in cut-out 65″ (1651 mm) x 35″ (889 mm)
Heater: W V HZ A
44-1/2″ (1130 mm) x 26-1/2″ (673
mm)
mm)
65 120 60 1.1
16-3/4"
(425 mm)
Installation Notes
Install this product according to the installation guide.
Locate the bath within 24” (610 mm) of a GFCI-protected,
120 V, 15 A, grounded electrical outlet.
Floor support under bath must provide for a minimum of 58
lbs/square foot (283 kg/square meter) loading.
The hot water supply should be 70% of the capacity of the
bath or greater. Installations will vary.
No change in measurements if connected
with required drain illustrated. (K-7272)
18"
(457 mm)
2-1/4"
(57 mm)
18-3/4"
(476 mm)
1-1/2"
Bath Drain
66" (1676 mm)
4-1/8"
(105 mm)
1"
(25 mm)
Lumbar
Angle
40˚
3/4"
(19 mm)

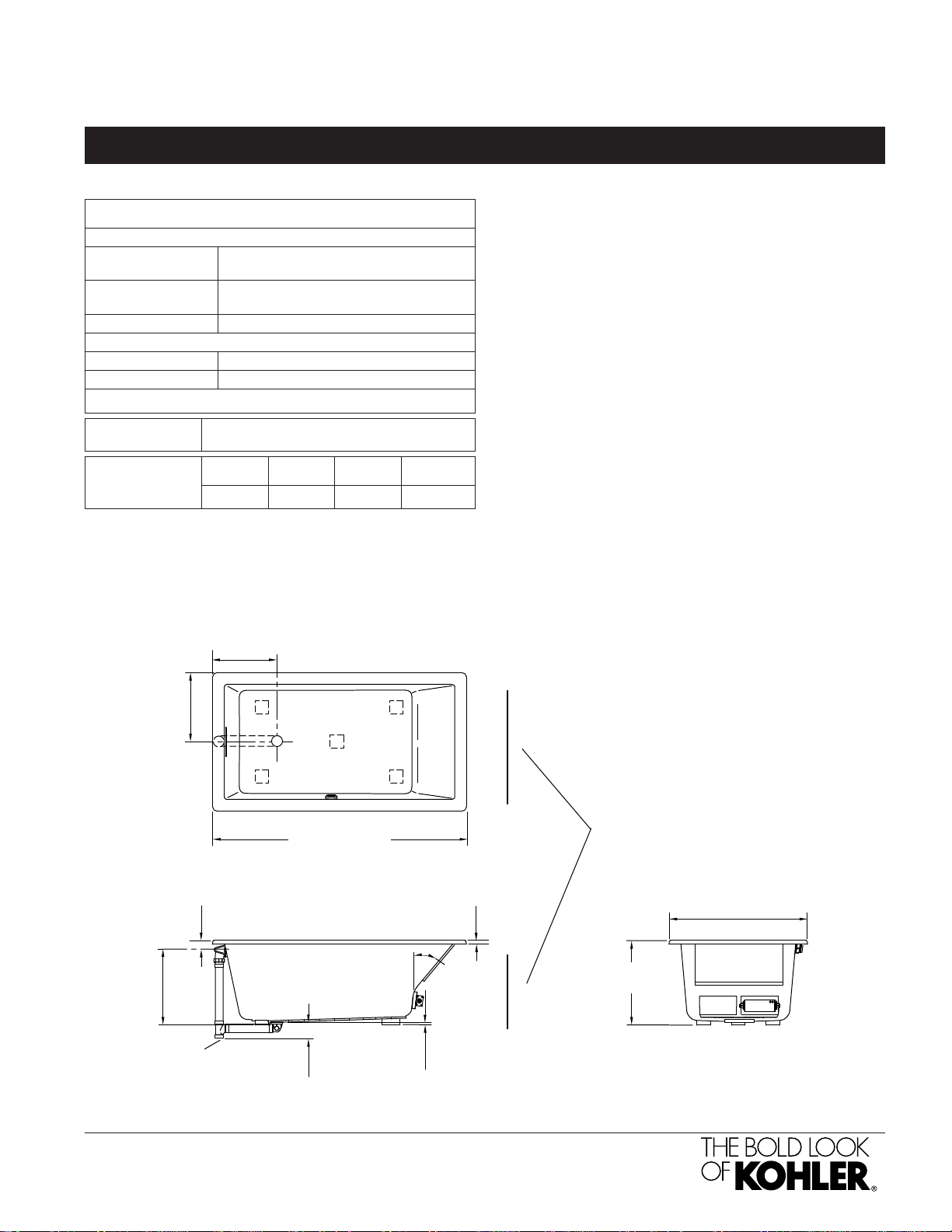

Product Diagram
Access Panel
30" (762 mm) L x 15" (381 mm) H Min
36" (914 mm)
22"
(559 mm)
UNDERSCORETM 5.5’ DROP-IN BATH WITH BASKTM HEATED SURFACE
Page2of2
1196031-4-
A
