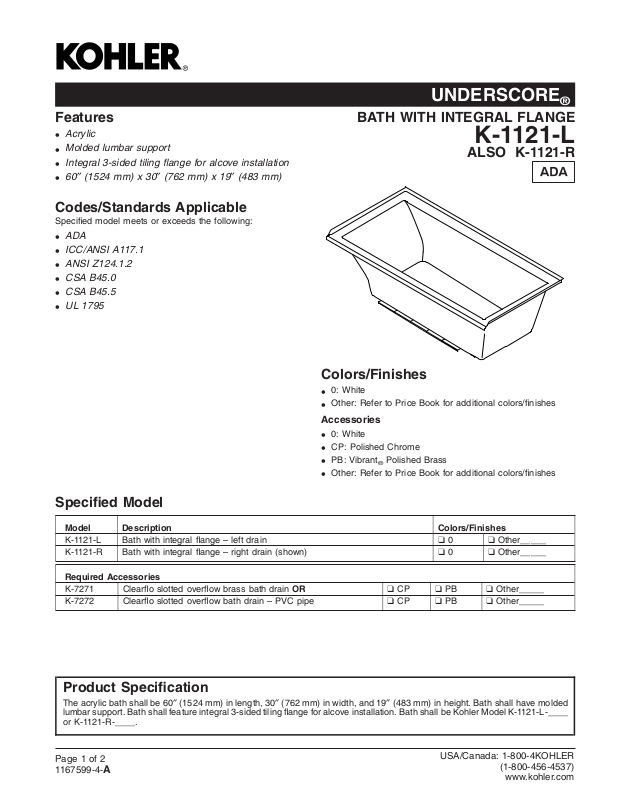

Page 1
UNDERSCORE
®
Features
Acrylic
•
Molded lumbar support
•
Integral 3-sided tiling flange for alcove installation
•
60″ (1524 mm) x 30″ (762 mm) x 19″ (483 mm)
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
ADA
•
ICC/ANSI A117.1
•
ANSI Z124.1.2
•
CSA B45.0
•
CSA B45.5
•
UL 1795
•
BATH WITH INTEGRAL FLANGE
K-1121-L
ALSO K-1121-R
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
0: White
•
CP: Polished Chrome
•
PB: Vibrant®Polished Brass
•
Other: Refer to Price Book for additional colors/finishes
•
Specified Model
Model Description Colors/Finishes
K-1121-L Bath with integral flange – left drain ❑ 0 ❑ Other_____
K-1121-R Bath with integral flange – right drain (shown) ❑ 0 ❑ Other_____
Required Accessories
K-7271 Clearflo slotted overflow brass bath drain OR ❑ CP ❑ PB ❑ Other_____
K-7272 Clearflo slotted overflow bath drain – PVC pipe ❑ CP ❑ PB ❑ Other_____
Product Specification
The acrylic bath shall be 60″ (1524 mm) in length, 30″ (762 mm) in width, and 19″ (483 mm) in height. Bath shall have molded
lumbar support. Bath shall feature integral 3-sided tiling flange for alcove installation. Bath shall be Kohler Model K-1121-L-____
or K-1121-R-____.
Page 1 of 2
1167599-4-
A
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
UNDERSCORE
Optional Accessories
K-1491 Pillow ❑ 0 ❑ Other_____
K-1601 Footstop ❑ 0 ❑ Other_____
®
Technical Information
Fixture*:
Bathing well:
Basin area,
bottom
Basin area,
top
Weight 75 lbs (34 kg)
To overflow:
Water depth 15-1/8″ (384 mm)
Capacity 59.8 gal (226 L)
* Approximate measurements for comparison only.
42-7/16″ (1078 mm) x 20″ (508 mm)
54-5/16″ (1380 mm) x 24-1/4″ (616 mm)
60" (1524 mm)
Installation Notes
Install this product according to the installation guide.
Will comply with ADA when installed per Section 607
Bathtubs of the Act.
Floor support under bath must provide for a minimum of 42
lbs/square foot (202 kg/square meter) loading.
Hot water supply should be 70% of capacity or greater.
Installations will vary.
No change in measurement if connected with
drain illustrated. (K-7272)
15"
(381 mm)
12-5/8"
(321 mm)
19"
(483 mm)
13/16"
(21 mm)
4-1/8"
(105 mm)
Product Diagram
UNDERSCORE®BATH WITH INTEGRAL FLANGE
Page2of2
1167599-4-
A
1-5/8"
(41 mm)
3-11/16"
(94 mm)
1-1/4"
(32 mm)
Tile Flange
Detail
30"
(762 mm)
20-1/4"
(514 mm)
1-1/2" Bath Drain
