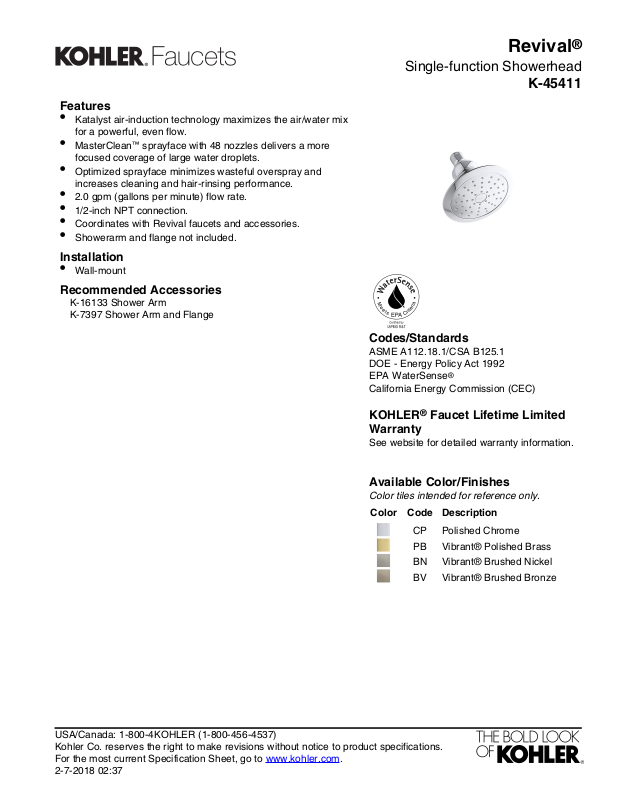

Page 1
Features
•
Katalyst air-induction technology maximizes the air/water mix
for a powerful, even flow.
•
MasterClean™ sprayface with 48 nozzles delivers a more
focused coverage of large water droplets.
•
Optimized sprayface minimizes wasteful overspray and
increases cleaning and hair-rinsing performance.
•
2.0 gpm (gallons per minute) flow rate.
•
1/2-inch NPT connection.
•
Coordinates with Revival faucets and accessories.
•
Showerarm and flange not included.
Installation
•
Wall-mount
Recommended Accessories
K-16133 Shower Arm
K-7397 Shower Arm and Flange
Revival
®
Single-function Showerhead
K-45411
Codes/Standards
ASME A112.18.1/CSA B125.1
DOE - Energy Policy Act 1992
EPA WaterSense
California Energy Commission (CEC)
®
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Vibrant® Polished BrassPB
Vibrant® Brushed NickelBN
Vibrant® Brushed BronzeBV
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
2-7-2018 02:37

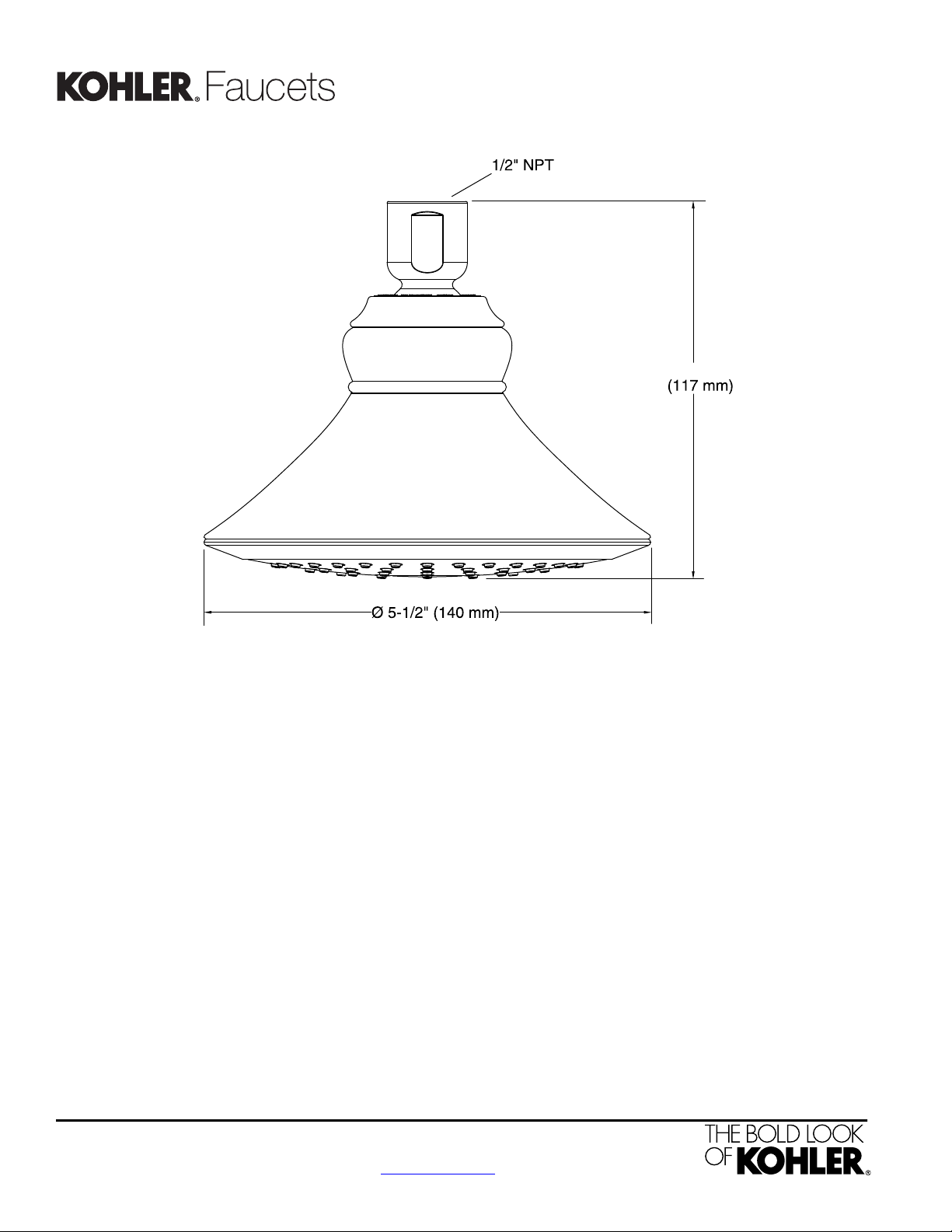

Page 2
4-5/8"
Revival
®
Single-function Showerhead
K-45411
Technical Information
All product dimensions are nominal.
Showerhead/Body Spray:
2 gal/min (7.6 l/min)Rated maximum flow:
Notes
Install this product according to the installation
guide.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
2-7-2018 02:37
