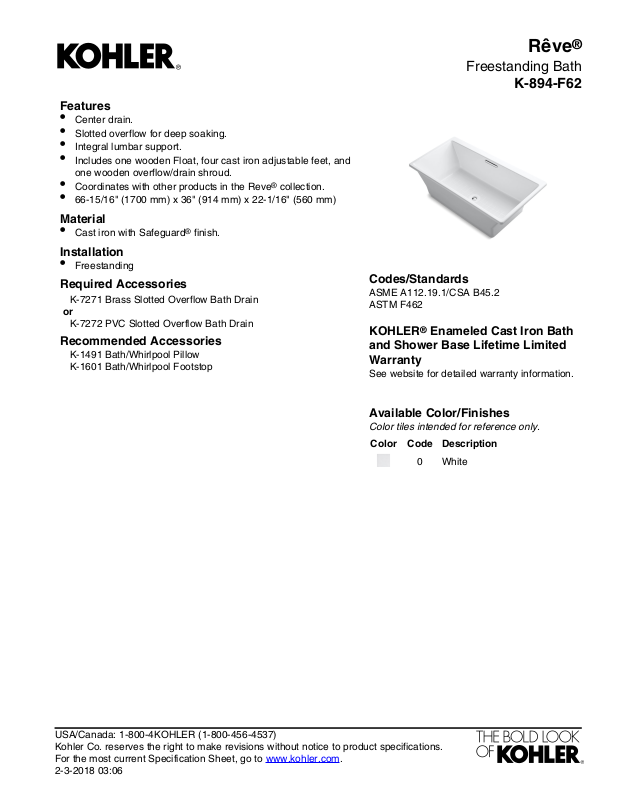

Page 1
Features
•
Center drain.
•
Slotted overflow for deep soaking.
•
Integral lumbar support.
•
Includes one wooden Float, four cast iron adjustable feet, and
one wooden overflow/drain shroud.
•
Coordinates with other products in the Reve® collection.
•
66-15/16" (1700 mm) x 36" (914 mm) x 22-1/16" (560 mm)
Material
•
Cast iron with Safeguard® finish.
Installation
•
Freestanding
Required Accessories
K-7271 Brass Slotted Overflow Bath Drain
or
K-7272 PVC Slotted Overflow Bath Drain
Recommended Accessories
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/Whirlpool Footstop
Rêve
Freestanding Bath
K-894-F62
Codes/Standards
ASME A112.19.1/CSA B45.2
ASTM F462
KOHLER® Enameled Cast Iron Bath
and Shower Base Lifetime Limited
Warranty
See website for detailed warranty information.
®
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
2-3-2018 03:06
Page 2

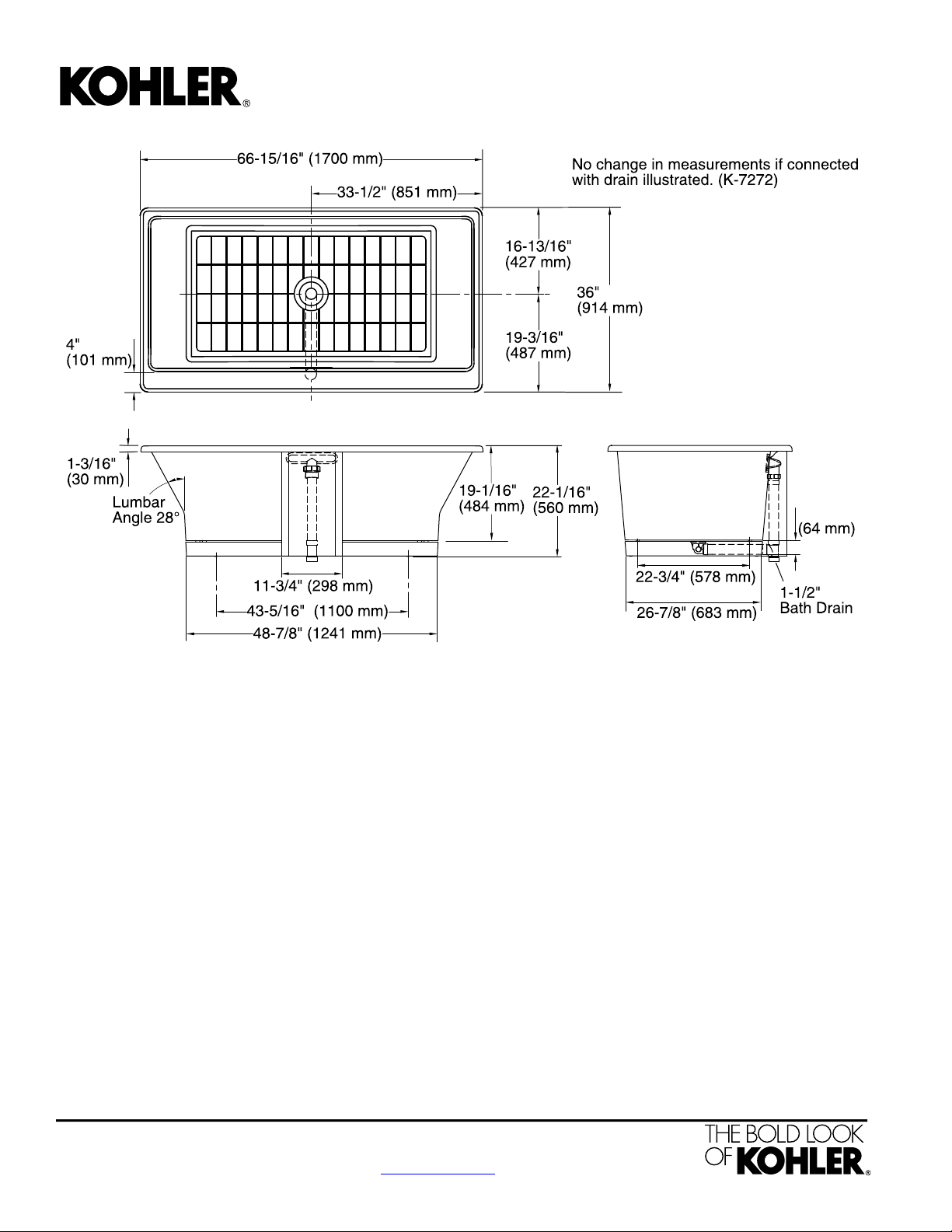

2-1/2"
Rêve
®
Freestanding Bath
K-894-F62
Technical Information
All product dimensions are nominal.
FreestandingInstallation:
CenterDrain location:
49" x 26-1/2" (1245 mm x 673 mm)Basin area, bottom:
62-1/2" x 29-1/4" (1588 mm x 743 mm)Basin area, top:
435 lbs (197.3 kg)Weight:
73 lbs/ft² (356.4 kg/m²)Minimum floor load:
15-1/4" (387 mm)Water depth:
90 gal (340.7 L)Water capacity:
Notes
Measure your actual product for rough-in details.
Install this product according to the installation
instructions.
The hot water supply should be 70% of the
capacity of the bath or greater. Installations will
vary.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
2-3-2018 03:06
