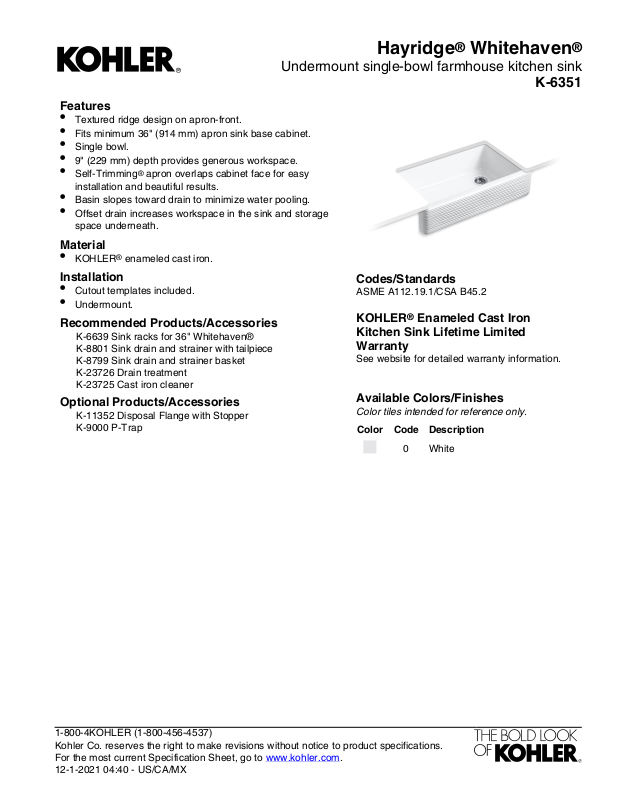

Page 1
Hayridge® Whitehaven
Features
•
Textured ridge design on apron-front.
•
Fits minimum 36" (914 mm) apron sink base cabinet.
•
Single bowl.
•
9" (229 mm) depth provides generous workspace.
•
Self-Trimming® apron overlaps cabinet face for easy
installation and beautiful results.
•
Basin slopes toward drain to minimize water pooling.
•
Offset drain increases workspace in the sink and storage
space underneath.
Material
•
KOHLER® enameled cast iron.
Installation
•
Cutout templates included.
•
Undermount.
Recommended Products/Accessories
K-6639 Sink racks for 36" Whitehaven®
K-8801 Sink drain and strainer with tailpiece
K-8799 Sink drain and strainer basket
K-23726 Drain treatment
K-23725 Cast iron cleaner
Optional Products/Accessories
K-11352 Disposal Flange with Stopper
K-9000 P-Trap
Codes/Standards
ASME A112.19.1/CSA B45.2
KOHLER® Enameled Cast Iron
Kitchen Sink Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
0 White
®
Undermount single-bowl farmhouse kitchen sink
K-6351
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
12-1-2021 04:40 - US/CA/MX
Page 2
Hayridge® Whitehaven
34" (864 mm)
35-11/16" (906 mm)
15"
(381 mm)
19-5/16"
(491 mm)
7/16"
(11 mm)
8-13/16"
(224 mm)
9-5/8"
(244 mm)
1-1/2" OD
6-3/4"
(171 mm)
1-3/8"
(35 mm)
6-3/4"
(171 mm)
2-1/4"
(57 mm)
21-9/16"
(548 mm)
Technical Information
All product dimensions are nominal.
Bowl configuration: Single
Installation: Under-mount
Min. base cabinet
width:
36" (914 mm)
Bowl area (Only): Length: 30-3/4" (781 mm)
Width: 18-1/16" (459 mm)
Bowl depth: 9" (229 mm)
Water depth: 9" (229 mm)
Drain hole: 3-5/8" (92 mm)
Template: 1156910-7, required, included
1157001, required, included
Notes
Install this product according to the installation
instructions.
NOTICE: The countertop manufacturer or
cutter must use the cut-out template provided
with the product, or a current one provided by
Kohler Co. (call 1-800-4KOHLER). Kohler Co.
is not responsible for cut-out errors when the
incorrect cut-out template is used.
IMPORTANT! The distance from the top edge
of the cabinet to the top of the cabinet door
must be at least 9" (229 mm) to install this sink.
®
Undermount single-bowl farmhouse kitchen sink
K-6351
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
12-1-2021 04:40 - US/CA/MX
