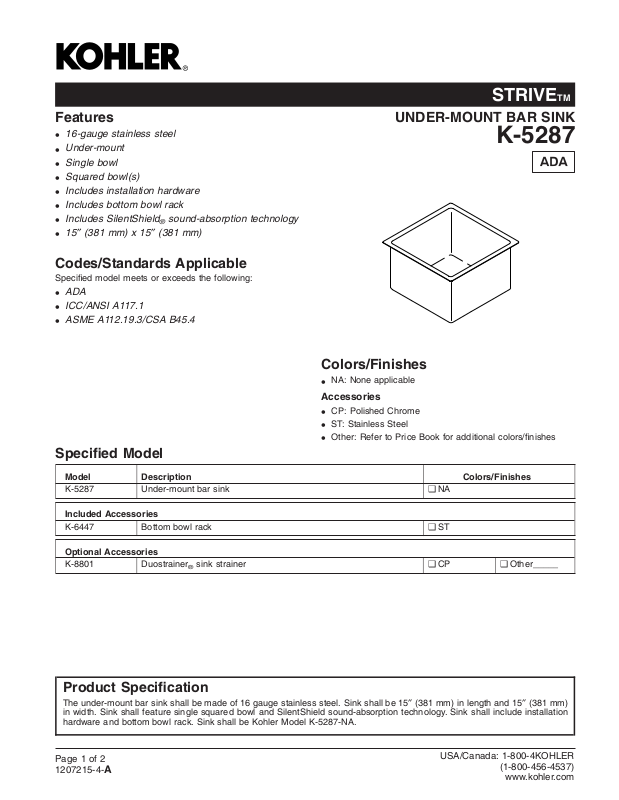

Page 1
STRIVETM
Features
16-gauge stainless steel
•
Under-mount
•
Single bowl
•
Squared bowl(s)
•
Includes installation hardware
•
Includes bottom bowl rack
•
Includes SilentShield
•
15″ (381 mm) x 15″ (381 mm)
•
sound-absorption technology
®
Codes/Standards Applicable
Specified model meets or exceeds the following:
ADA
•
ICC/ANSI A117.1
•
ASME A112.19.3/CSA B45.4
•
Specified Model
UNDER-MOUNT BAR SINK
K-5287
Colors/Finishes
NA: None applicable
•
Accessories
CP: Polished Chrome
•
ST: Stainless Steel
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-5287 Under-mount bar sink ❑ NA
Included Accessories
K-6447 Bottom bowl rack ❑ ST
Optional Accessories
K-8801 Duostrainer
sink strainer ❑ CP ❑ Other_____
®
Product Specification
The under-mount bar sink shall be made of 16 gauge stainless steel. Sink shall be 15″ (381 mm) in length and 15″ (381 mm)
in width. Sink shall feature single squared bowl and SilentShield sound-absorption technology. Sink shall include installation
hardware and bottom bowl rack. Sink shall be Kohler Model K-5287-NA.
Page 1 of 2
1207215-4-
A
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
STRIVETM
Technical Information
Fixture*:
Bowl area 13-1/4″ (337 mm) x 13-1/4″ (337 mm)
Water depth 9″ (229 mm)
Drain hole Ø 3-11/16″ (94 mm)
*Approximate measurements for comparison only.
Included components:
Hardware kit (2 required) 91915
Cut-out template 1207219-7
7-1/2"
(191 mm)
Installation Notes
Install this product according to the installation guide.
Allow a minimum of 3″ (76 mm) clearance around the sink rim
for clip attachment.
Will comply with ADA when installed per Section 606
Lavatories and Sinks of the ADA 2010 Standards for
Accessible Design.
7/8" (22 mm)
13"
(330 mm)
15" (381 mm)
1-1/2" OD
7-1/2"
(191 mm)
15"
(381 mm)
9-5/16"
(237 mm)
Product Diagram
Countertop
Sink
Clip
3" (76 mm) Min
STRIVETM UNDER-MOUNT BAR SINK
Page2of2
1207215-4-
A
