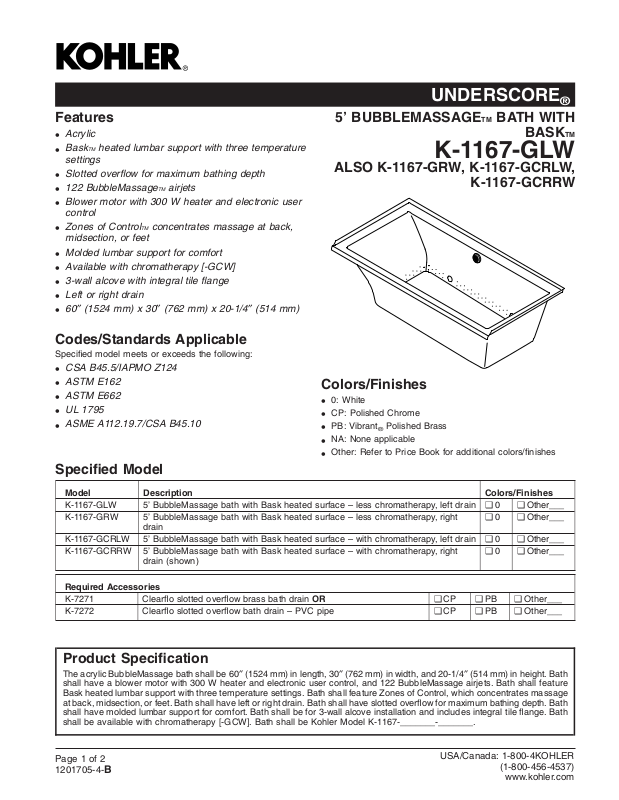

Page 1
UNDERSCORE
®
Features
Acrylic
•
TM heated lumbar support with three temperature
Bask
•
settings
Slotted overflow for maximum bathing depth
•
122 BubbleMassage
•
Blower motor with 300 W heater and electronic user
•
control
Zones of Control
•
midsection, or feet
Molded lumbar support for comfort
•
Available with chromatherapy [-GCW]
•
3-wall alcove with integral tile flange
•
Left or right drain
•
60″ (1524 mm) x 30″ (762 mm) x 20-1/4″ (514 mm)
•
TM airjets
TM concentrates massage at back,
Codes/Standards Applicable
Specified model meets or exceeds the following:
CSA B45.5/IAPMO Z124
•
ASTM E162
•
ASTM E662
•
UL 1795
•
ASME A112.19.7/CSA B45.10
•
Specified Model
5’ BUBBLEMASSAGETM BATH WITH
BASK
K-1167-GLW
ALSO K-1167-GRW, K-1167-GCRLW,
K-1167-GCRRW
Colors/Finishes
0: White
•
CP: Polished Chrome
•
PB: Vibrant®Polished Brass
•
NA: None applicable
•
Other: Refer to Price Book for additional colors/finishes
•
TM
Model Description Colors/Finishes
K-1167-GLW 5’ BubbleMassage bath with Bask heated surface – less chromatherapy, left drain ❑ 0 ❑ Other___
K-1167-GRW 5’ BubbleMassage bath with Bask heated surface – less chromatherapy, right
drain
K-1167-GCRLW 5’ BubbleMassage bath with Bask heated surface – with chromatherapy, left drain ❑ 0 ❑ Other___
K-1167-GCRRW 5’ BubbleMassage bath with Bask heated surface – with chromatherapy, right
drain (shown)
Required Accessories
K-7271 Clearflo slotted overflow brass bath drain OR ❑ CP ❑ PB ❑ Other___
K-7272 Clearflo slotted overflow bath drain – PVC pipe ❑ CP ❑ PB ❑ Other___
❑ 0 ❑ Other___
❑ 0 ❑ Other___
Product Specification
The acrylic BubbleMassage bath shall be 60″ (1524 mm) in length, 30″ (762 mm) in width, and 20-1/4″ (514 mm) in height. Bath
shall have a blower motor with 300 W heater and electronic user control, and 122 BubbleMassage airjets. Bath shall feature
Bask heated lumbar support with three temperature settings. Bath shall feature Zones of Control, which concentrates massage
at back, midsection, or feet. Bath shall have left or right drain. Bath shall have slotted overflow for maximum bathing depth. Bath
shall have molded lumbar support for comfort. Bath shall be for 3-wall alcove installation and includes integral tile flange. Bath
shall be available with chromatherapy [-GCW]. Bath shall be Kohler Model K-1167-_______-_______.
Page 1 of 2
1201705-4-
B
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
UNDERSCORE
Optional Accessories
K-1491 Pillow ❑ 0 ❑ Other___
K-1601 Footstop ❑ 0 ❑ Other___
K-1705 Remote control ❑ NA
K-9498 3″ (76 mm) whirlpool keypad trim ❑ CP ❑ PB ❑ Other___
®
Technical Information
Fixture: Approx. measurements for comparison only.
Bathing well:
Basin area,
bottom
Basin area,
top
Weight 106 lbs (48.1 kg)
To overflow:
Water depth 15-1/8″ (384 mm)
Capacity 59.8 gal (226 L)
Blower motor/Heated surface 220-240 50/60 5
No change in measurement if connected with
drain illustrated. (K-7272)
42-7/16″ (1078 mm) x 20″ (508 mm)
54-5/16″ (1380 mm) x 24-1/4″ (616 mm)
VHzA
1-1/4"
(32 mm)
Required Electrical Service
Dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI) or Residual
Current Device (RCD):
Blower motor/Heated
surface
220-240 V, 15 A, 50/60 Hz
Installation Notes
Install this product according to the installation guide.
This unit is not intended for flush-mount apron installation.
Floor support under bath must provide for a minimum of 44
lbs/square foot (212 kg/square meter) loading.
60" (1524 mm)
15"
(381 mm)
Tile Flange
Detail
Blower Motor/Control Access
30" (762 mm) W x
15" (381 mm) H Min
30"
(762 mm)
1-1/4"
(32 mm)
20-1/4"
(514 mm)
19"
(483 mm)
1-1/2" Bath Drain
Product Diagram
UNDERSCORE®5’ BUBBLEMASSAGETM BATH WITH BASKTM
Page2of2
1201705-4-
B
Lumbar Angle 40˚
13/16"
(21 mm)
12-5/8"
(321 mm)
3-11/16"
(94 mm)
4-1/8"
(105 mm)
