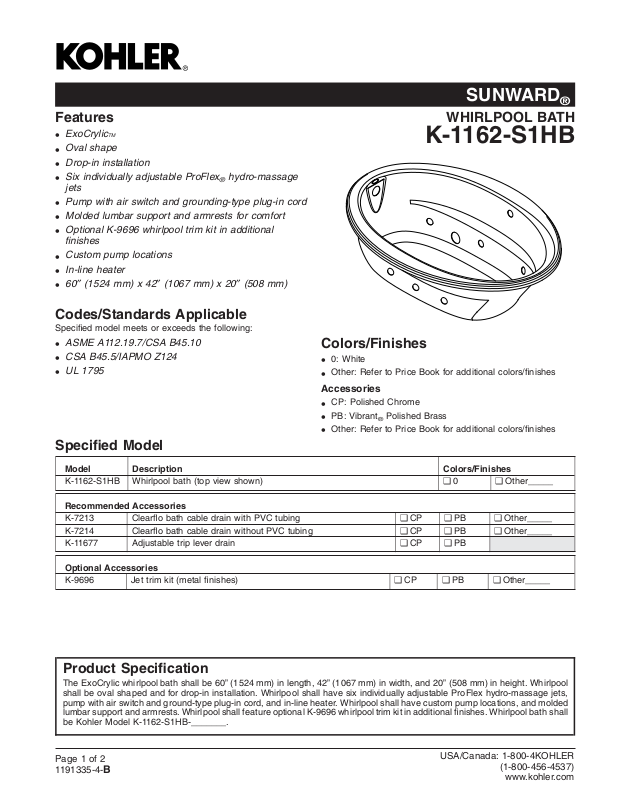

Page 1
SUNWARD
®
Features
ExoCrylic
•
Oval shape
•
Drop-in installation
•
Six individually adjustable ProFlex
•
jets
Pump with air switch and grounding-type plug-in cord
•
Molded lumbar support and armrests for comfort
•
Optional K-9696 whirlpool trim kit in additional
•
finishes
Custom pump locations
•
In-line heater
•
60″ (1524 mm) x 42″ (1067 mm) x 20″ (508 mm)
•
TM
hydro-massage
®
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.19.7/CSA B45.10
•
CSA B45.5/IAPMO Z124
•
UL 1795
•
Specified Model
WHIRLPOOL BATH
K-1162-S1HB
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
CP: Polished Chrome
•
PB: Vibrant®Polished Brass
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-1162-S1HB Whirlpool bath (top view shown) ❑ 0 ❑ Other_____
Recommended Accessories
K-7213 Clearflo bath cable drain with PVC tubing ❑ CP ❑ PB ❑ Other_____
K-7214 Clearflo bath cable drain without PVC tubing ❑ CP ❑ PB ❑ Other_____
K-11677 Adjustable trip lever drain ❑ CP ❑ PB
Optional Accessories
K-9696 Jet trim kit (metal finishes) ❑ CP ❑ PB ❑ Other_____
Product Specification
The ExoCrylic whirlpool bath shall be 60” (1524 mm) in length, 42” (1067 mm) in width, and 20” (508 mm) in height. Whirlpool
shall be oval shaped and for drop-in installation. Whirlpool shall have six individually adjustable ProFlex hydro-massage jets,
pump with air switch and ground-type plug-in cord, and in-line heater. Whirlpool shall have custom pump locations, and molded
lumbar support and armrests. Whirlpool shall feature optional K-9696 whirlpool trim kit in additional finishes. Whirlpool bath shall
be Kohler Model K-1162-S1HB-_______.
Page 1 of 2
1191335-4-
B
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
SUNWARD
®
Technical Information
Required Electrical Service
Fixture*:
Bathing well:
Basin area,
bottom
Basin area, top 53-1/2″ (1359 mm) x 32-1/8″ (816 mm)
Weight 110 lbs (50 kg)
To overflow:
Water depth 15″ (381 mm)
Capacity 57 gal (215.9 L)
* Approximate measurements for comparison only.
Included components:
Cutout template 1042556-7
Pump: V Hz A
1-speed 120 60 7.5
Heater: kW V Hz A
43″ (1092 mm) x 21-9/16″ (548 mm)
1.5 120 60 12.5
Pump/Control Access
20" (508 mm) W x 15" (381 mm) H
9"
(229 mm)
Max
Two dedicated circuits are required, each protected with
a Class A Ground-Fault Circuit-Interrupter (GFCI):
Pump/control 120 V, 15 A, 60 Hz
Heater 120 V, 15 A, 60 Hz
Locate the outlets behind the whirlpool and within 24”
(610 mm) of the pump and heater.
Installation Notes
Install this product according to the installation guide.
Floor support under whirlpool must provide for a minimum of
35 lbs/square foot (171 kg/square meter) loading.
The pump extends 9” (229 mm) beyond the edge of the rim.
Modify the framing as needed.
No change in measurements if connected with
drain illustrated. (K-11677)
Recommended faucet area
21" (533 mm)
3-1/8"
(79 mm)
10-13/16" (275 mm)
3-1/2"
(89 mm)
3"
(76 mm)
SUNWARD®WHIRLPOOL BATH
Page2of2
1191335-4-
B
60" (1524 mm)
2-7/8"
(73 mm)
Product Diagram
Lumbar
Angle 33˚
3/8" (10 mm)
20"
(508 mm)
1-1/2"
(38 mm)
Drop-In Rim Detail
42" (1067 mm)
18-1/2"
(470 mm)
1-1/2" Bath Drain
