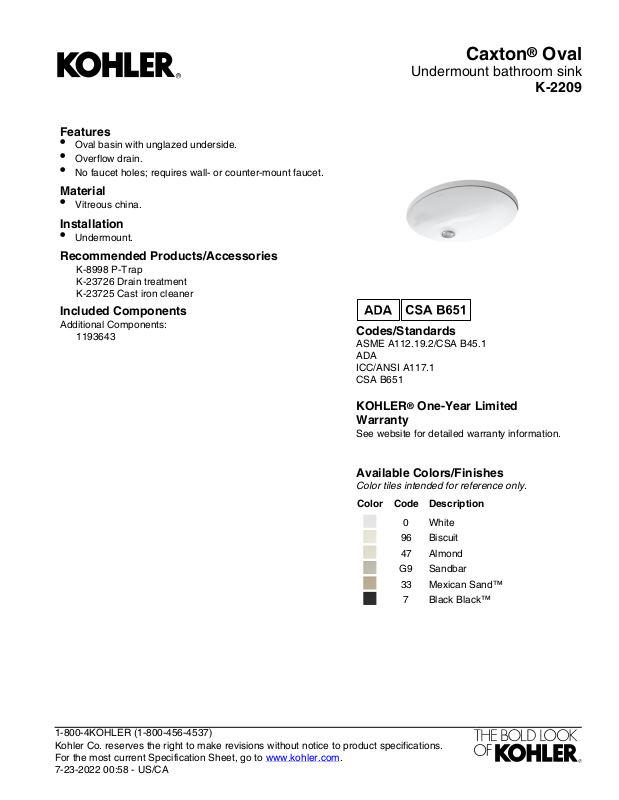

Kohler KOH2045 Specifications

Caxton® Oval

Features

•

Oval basin with unglazed underside.

•

Overflow drain.

•

No faucet holes; requires wall- or counter-mount faucet.

Material

•

Vitreous china.

Installation

•

Undermount.

Recommended Products/Accessories

K-8998 P-Trap
K-23726 Drain treatment
K-23725 Cast iron cleaner

Included Components

Additional Components:

1193643

Codes/Standards

ASME A112.19.2/CSA B45.1
ADA
ICC/ANSI A117.1
CSA B651

KOHLER® One-Year Limited
Warranty

See website for detailed warranty information.

Available Colors/Finishes

Color tiles intended for reference only.

Color Code Description

0 White
96 Biscuit
47 Almond

G9 Sandbar

33 Mexican Sand™

7 Black Black™

Undermount bathroom sink

K-2209

1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-23-2022 00:58 - US/CA

Caxton® Oval

Recommended ADA Installtion

9"
(229 mm)
Min

11" (279 mm)

3" (76 mm)

24" (610 mm)

8"
(203 mm)Min

27"
(686 mm)
Min

34"
(864 mm)

5/8"
(16 mm)

3/8"
(10 mm)

1/2"
(13 mm)

5-1/8"
(130 mm)

C

L

of Fitting

ADA Drain Outlet

4" (102 mm)

1-1/2" (38 mm)

3/8" Cold

3/8" Hot

1-1/4" OD

13-1/8"
(333 mm)

14"
(356 mm)

7-1/2"
(191 mm)

17"
(432 mm)

14"
(356 mm)

1" (25 mm)

2-5/8"
(67 mm)

10-3/4"
(273 mm)

2-1/2"
(64 mm)

tnalaeS

tnalaeS

noitallatsnI dooW

noitallatsnI elbraM

Technical Information

All product dimensions are nominal.
Installation: Undermount
Bowl area: Length: 15-1/4" (387 mm)

Width: 12-1/4" (311 mm)
Bowl depth: 5-3/4" (146 mm)
Water depth: 4" (102 mm)

Drain hole: 1-3/4" (44 mm)
Template: 85838-7, required, not included

Notes

Install this product according to the installation
instructions.

NOTICE: Countertop manufacturer or cutter
must use the current product template
available at www.kohler.com, or by calling
1-800-4KOHLER. Kohler Co. is not responsible
for cutout errors when the incorrect cutout
template is used.

ADA, CSA B651 compliant when installed to
the specific requirements of these regulations.

Undermount bathroom sink

K-2209

1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
7-23-2022 00:58 - US/CA
