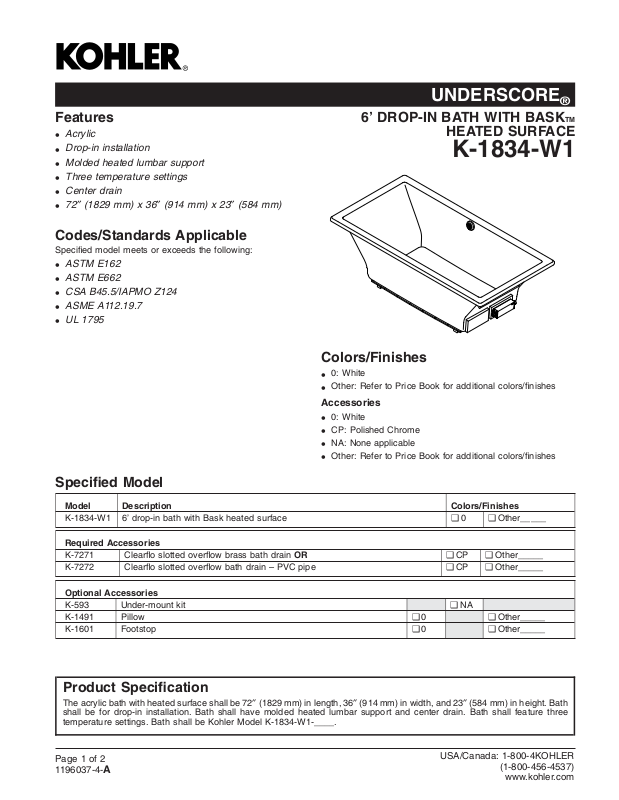

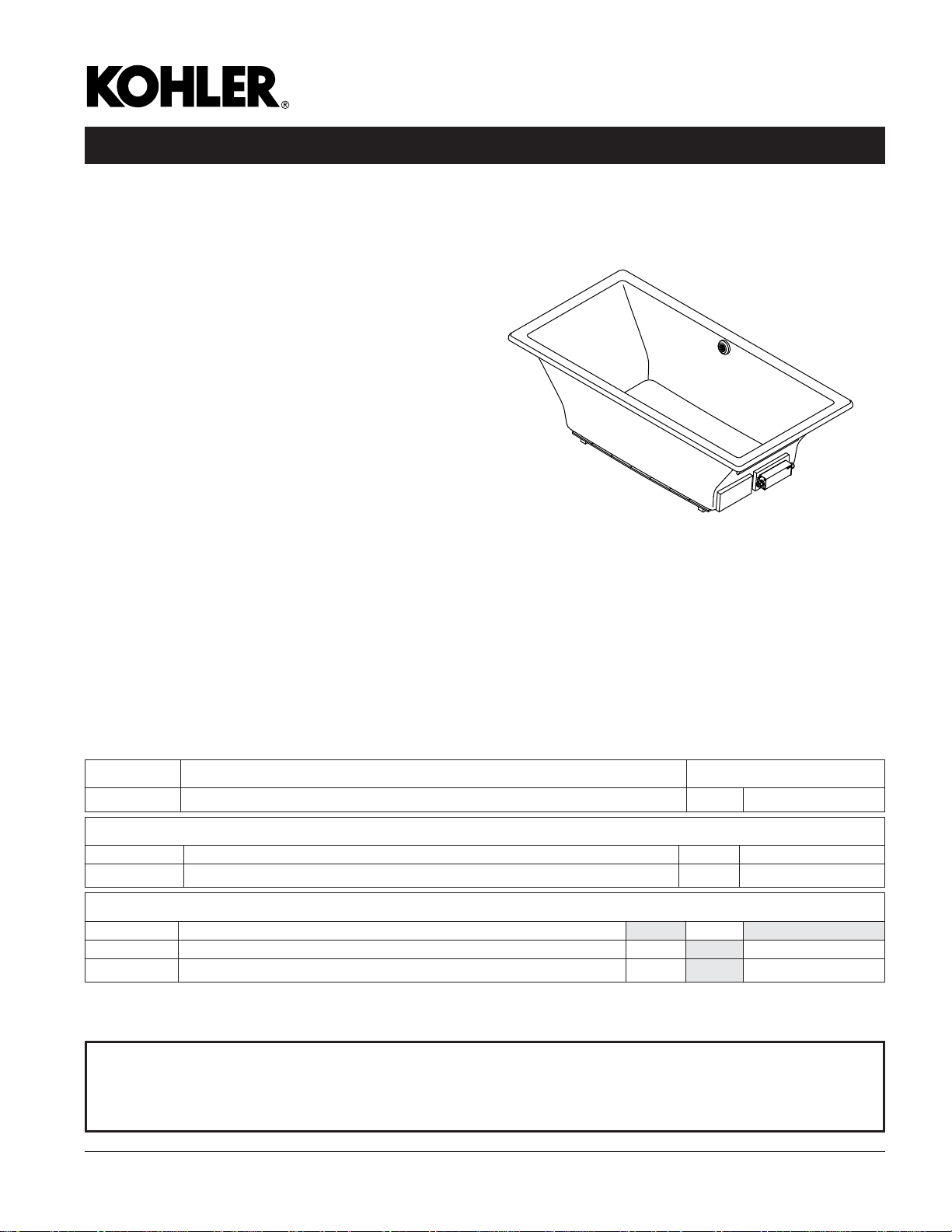

Page 1
UNDERSCORE
®
Features
Acrylic
•
Drop-in installation
•
Molded heated lumbar support
•
Three temperature settings
•
Center drain
•
72″ (1829 mm) x 36″ (914 mm) x 23″ (584 mm)
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASTM E162
•
ASTM E662
•
CSA B45.5/IAPMO Z124
•
ASME A112.19.7
•
UL 1795
•
6’ DROP-IN BATH WITH BASKTM
HEATED SURFACE
K-1834-W1
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
0: White
•
CP: Polished Chrome
•
NA: None applicable
•
Other: Refer to Price Book for additional colors/finishes
•
Specified Model
Model Description Colors/Finishes
K-1834-W1 6’ drop-in bath with Bask heated surface ❑ 0 ❑ Other_____
Required Accessories
K-7271 Clearflo slotted overflow brass bath drain OR ❑ CP ❑ Other_____
K-7272 Clearflo slotted overflow bath drain – PVC pipe ❑ CP ❑ Other_____
Optional Accessories
K-593 Under-mount kit ❑ NA
K-1491 Pillow ❑ 0 ❑ Other_____
K-1601 Footstop ❑ 0 ❑ Other_____
Product Specification
The acrylic bath with heated surface shall be 72″ (1829 mm) in length, 36″ (914 mm) in width, and 23″ (584 mm) in height. Bath
shall be for drop-in installation. Bath shall have molded heated lumbar support and center drain. Bath shall feature three
temperature settings. Bath shall be Kohler Model K-1834-W1-____.
Page 1 of 2
1196037-4-
A
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
UNDERSCORE
®
Technical Information
Fixture*:
Bathing well:
Basin area,
bottom
Basin area,
top
Weight 82 lbs (37.2 kg)
To overflow:
Water depth 19-7/16″ (494 mm)
Capacity 112.9 gal (427 L)
* Approximate measurements for comparison only.
Drop-in cut-out 71-1/2″ (1816 mm) x 35-1/2″ (902 mm)
Heater: W V HZ A
45-3/4″ (1162 mm) x 25-15/16″ (659 mm)
65-3/8″ (1661 mm) x 29-5/16″ (745 mm)
65 120 60 1.1
Installation Notes
Install this product according to the installation guide.
Locate the bath within 24″ (610 mm) of a GFCI-protected,
120 V, 15 A, grounded electrical outlet.
Floor support under bath must provide for a minimum of 58
lbs/square foot (285 kg/square meter) loading.
Hot water supply should be 70% of capacity or greater.
Installations will vary.
1"
(25 mm)
23"
(584 mm)
36"
(914 mm)
4-1/8"
(105 mm)
72" (1829 mm)
1/2"
(13 mm)
18"
(457 mm)
Lumbar
Angle
33˚
No change in measurement if connected with
drain illustrated. (K-7272)
Access Panel
30" (762 mm) L x 15" (381 mm) H Min
36"
(914 mm)
2-7/16"
(62 mm)
20"
(508 mm)
1-1/2" Bath Drain

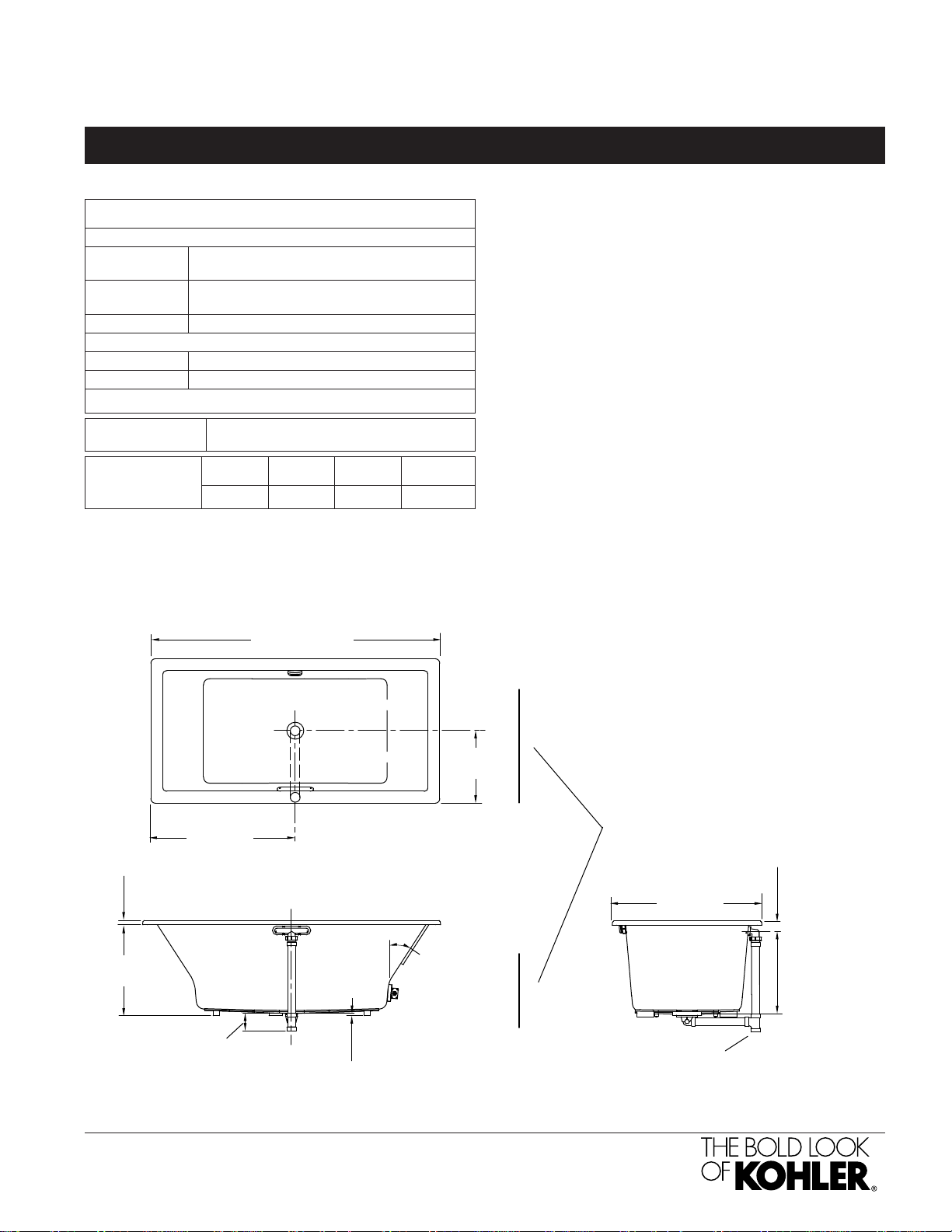

Product Diagram
UNDERSCORE®6’ DROP-IN BATH WITH BASKTM HEATED SURFACE
Page2of2
1196037-4-
A
