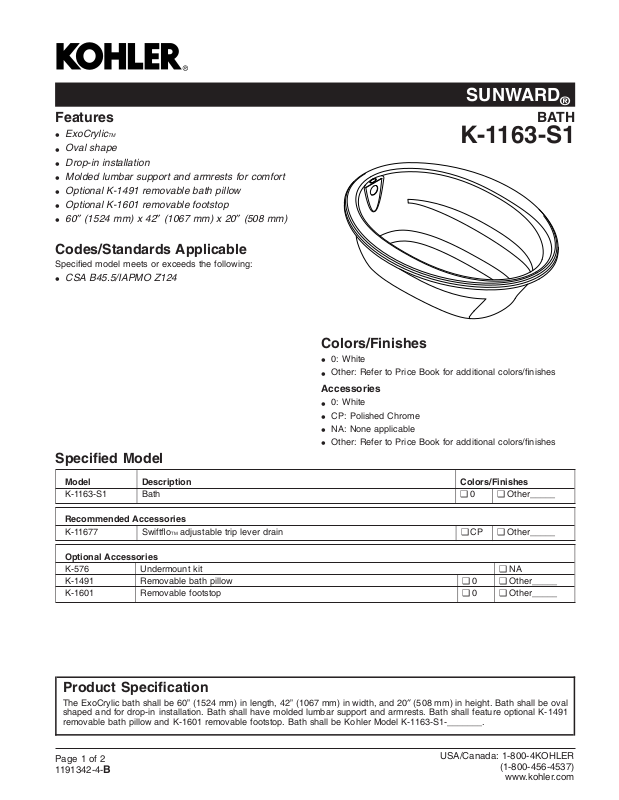

Page 1
SUNWARD
®
Features
ExoCrylic
•
Oval shape
•
Drop-in installation
•
Molded lumbar support and armrests for comfort
•
Optional K-1491 removable bath pillow
•
Optional K-1601 removable footstop
•
60″ (1524 mm) x 42″ (1067 mm) x 20″ (508 mm)
•
TM
Codes/Standards Applicable
Specified model meets or exceeds the following:
CSA B45.5/IAPMO Z124
•
Specified Model
K-1163-S1
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
0: White
•
CP: Polished Chrome
•
NA: None applicable
•
Other: Refer to Price Book for additional colors/finishes
•
BATH
Model Description Colors/Finishes
K-1163-S1 Bath ❑ 0 ❑ Other_____
Recommended Accessories
K-11677 Swiftflo
Optional Accessories
K-576 Undermount kit ❑ NA
K-1491 Removable bath pillow ❑ 0 ❑ Other_____
K-1601 Removable footstop ❑ 0 ❑ Other_____
TM adjustable trip lever drain ❑ CP ❑ Other_____
Product Specification
The ExoCrylic bath shall be 60” (1524 mm) in length, 42” (1067 mm) in width, and 20″ (508 mm) in height. Bath shall be oval
shaped and for drop-in installation. Bath shall have molded lumbar support and armrests. Bath shall feature optional K-1491
removable bath pillow and K-1601 removable footstop. Bath shall be Kohler Model K-1163-S1-_______.
Page 1 of 2
1191342-4-
B
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
SUNWARD
®
Technical Information
Fixture*:
Bathing well:
Basin area,
bottom
Basin area, top 53-1/2″ (1359 mm) x 32-1/8″ (816 mm)
Weight 75 lbs (34 kg)
To overflow:
Water depth 15″ (381 mm)
Capacity 57 gal (215.9 L)
* Approximate measurements for comparison only.
Included components:
Cutout template 1042556-7
43″ (1092 mm) x 21-9/16″ (548 mm)
Installation Notes
Install this product according to the installation guide.
Floor support under bath must provide for a minimum of 33
lbs/square foot (161 kg/square meter) loading.
No change in measurements if connected with drain
illustrated.
21"
(533 mm)
3-1/8"
(79 mm)
3-1/2"
(89 mm)
10-13/16" (275 mm)
60" (1524 mm)
3"
(76 mm)
2-7/8" (73 mm)
Lumbar
Angle 33˚
3/8" (10 mm)
No change in measurements if connected with
drain illustrated. (K-11677)
Recommended faucet area
1-1/2"
(38 mm)
Drop-In Rim Detail
42" (1067 mm)
20"
(508 mm)
18-1/2"
(470 mm)
1-1/2" Bath Drain
SUNWARD®BATH
Page2of2
1191342-4-
B
