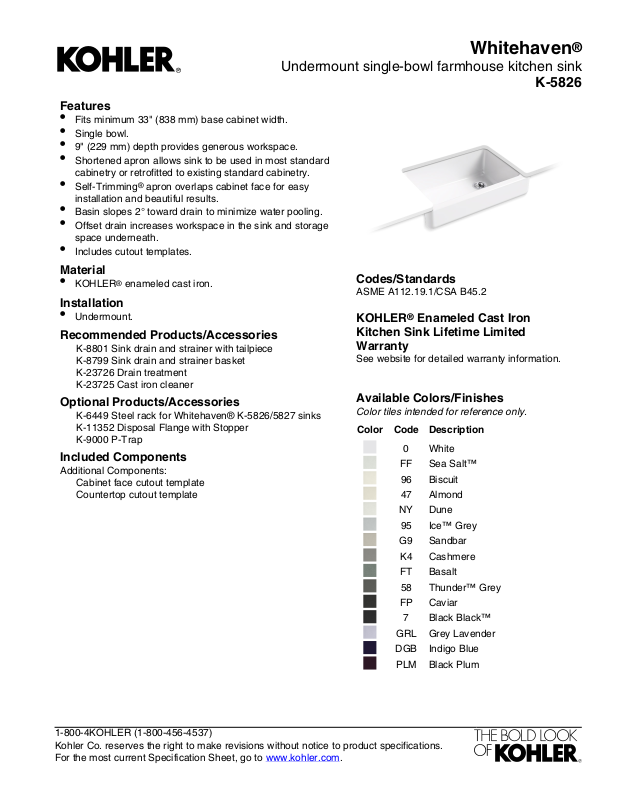

Page 1
Whitehaven
Features
•
Fits minimum 33" (838 mm) base cabinet width.
•
Single bowl.
•
9" (229 mm) depth provides generous workspace.
•
Shortened apron allows sink to be used in most standard
cabinetry or retrofitted to existing standard cabinetry.
•
Self-Trimming® apron overlaps cabinet face for easy
installation and beautiful results.
•
Basin slopes 2° toward drain to minimize water pooling.
•
Offset drain increases workspace in the sink and storage
space underneath.
•
Includes cutout templates.
Material
•
KOHLER® enameled cast iron.
Installation
•
Undermount.
Recommended Products/Accessories
K-8801 Sink drain and strainer with tailpiece
K-8799 Sink drain and strainer basket
K-23726 Drain treatment
K-23725 Cast iron cleaner
Optional Products/Accessories
K-6449 Steel rack for Whitehaven® K-5826/5827 sinks
K-11352 Disposal Flange with Stopper
K-9000 P-Trap
Included Components
Additional Components:
Cabinet face cutout template
Countertop cutout template
Codes/Standards
ASME A112.19.1/CSA B45.2
KOHLER® Enameled Cast Iron
Kitchen Sink Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
0 White
FF Sea Salt™
96 Biscuit
47 Almond
NY Dune
95 Ice™ Grey
G9 Sandbar
K4 Cashmere
FT Basalt
58 Thunder™ Grey
FP Caviar
7 Black Black™
GRL Grey Lavender
DGB Indigo Blue
PLM Black Plum
®
Undermount single-bowl farmhouse kitchen sink
K-5826
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
Page 2
Whitehaven
19-5/16"
Technical Information
All product dimensions are nominal.
Bowl configuration: Single
Installation: Under-mount
Min. base cabinet
width:
33" (838 mm)
Bowl area: Length: 27-3/4" (705 mm)
Width: 18-1/16" (459 mm)
Bowl depth: 9-5/8" (244 mm)
Water depth: 9" (229 mm)
Drain hole: 3-5/8" (92 mm)
Template: 1214395-7, required, included
1214396-7, required, included
Notes
Install this product according to the installation
instructions.
NOTICE: Countertop manufacturer or cutter
must use the current product template
available at www.kohler.com, or by calling
1-800-4KOHLER. Kohler Co. is not responsible
for cutout errors when the incorrect cutout
template is used.
IMPORTANT! The distance from the top edge
of the cabinet to the top of the cabinet door
must be at least 6-7/8" (175 mm) to install this
sink.
®
Undermount single-bowl farmhouse kitchen sink
K-5826
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
