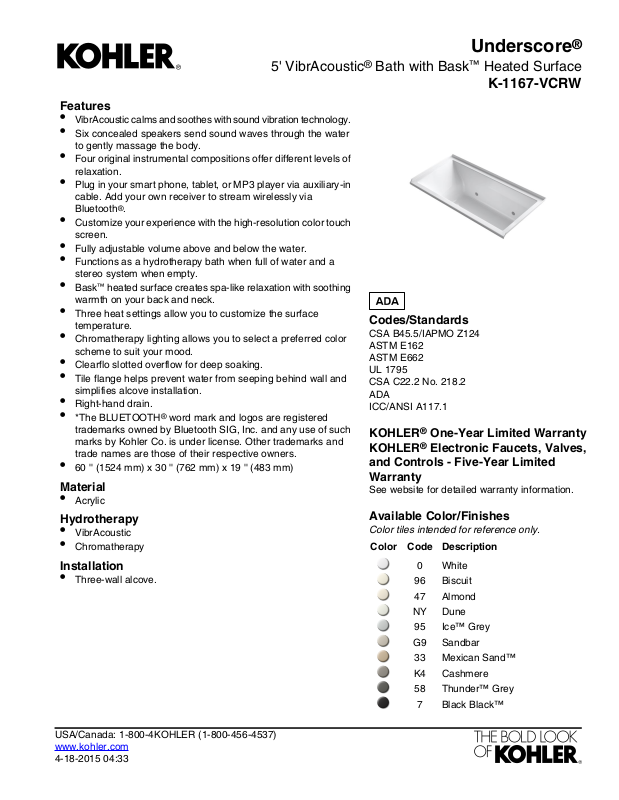

Page 1
5' VibrAcoustic® Bath with Bask™ Heated Surface
Features
•
VibrAcoustic calms and soothes with sound vibration technology.
•
Six concealed speakers send sound waves through the water
to gently massage the body.
•
Four original instrumental compositions offer different levels of
relaxation.
•
Plug in your smart phone, tablet, or MP3 player via auxiliary-in
cable. Add your own receiver to stream wirelessly via
Bluetooth®.
•
Customize your experience with the high-resolution color touch
screen.
•
Fully adjustable volume above and below the water.
•
Functions as a hydrotherapy bath when full of water and a
stereo system when empty.
•
Bask™ heated surface creates spa-like relaxation with soothing
warmth on your back and neck.
•
Three heat settings allow you to customize the surface
temperature.
•
Chromatherapy lighting allows you to select a preferred color
scheme to suit your mood.
•
Clearflo slotted overflow for deep soaking.
•
Tile flange helps prevent water from seeping behind wall and
simplifies alcove installation.
•
Right-hand drain.
•
*The BLUETOOTH® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc. and any use of such
marks by Kohler Co. is under license. Other trademarks and
trade names are those of their respective owners.
•
60 '' (1524 mm) x 30 '' (762 mm) x 19 '' (483 mm)
Material
•
Acrylic
Hydrotherapy
•
VibrAcoustic
•
Chromatherapy
Underscore
®
K-1167-VCRW
Codes/Standards
CSA B45.5/IAPMO Z124
ASTM E162
ASTM E662
UL 1795
CSA C22.2 No. 218.2
ADA
ICC/ANSI A117.1
KOHLER® One-Year Limited Warranty
KOHLER® Electronic Faucets, Valves,
and Controls - Five-Year Limited
Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Installation
•
Three-wall alcove.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-18-2015 04:33
White0
Biscuit96
Almond47
DuneNY
Ice™ Grey95
SandbarG9
Mexican Sand™33
CashmereK4
Thunder™ Grey58
Black Black™7
Page 2
1"
Underscore
®
5' VibrAcoustic® Bath with Bask™ Heated Surface
K-1167-VCRW
Required Electrical Service
One dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device
(RCD).
120 V, 15 A, 50/60 HzAmplifier, Heater:
Technical Information
All product dimensions are nominal.
Alcove with FlangeInstallation:
ReversibleDrain location:
42-7/16" x 20" (1078 mm x 508 mm)Basin area, bottom:
54-5/16" x 24-1/4" (1380 mm x 616 mm)Basin area, top:
85 lbs (38.6 kg)Weight:
50 lbs/ft² (244.1 kg/m²)Minimum floor load:
15-1/8" (384 mm)Water depth:
59.8 gal (226.4 L)Water capacity:
Electrical rating:
Amplifier: 120 V, 50/60 Hz, 15 W
Heater: 120 V, 1.1 A, 50/60 Hz, 65 W
Notes
Install this product according to the installation
guide. Ensure all components are functional
before completing the installation. Control
amplifier fits 16" (406 mm) center studs. 25’ (7.6
m) cables are included.
Locate the bath within 24" (610 mm) of a
GFCI-protected 120 V, 15 A grounded electrical
outlet. A second grounded outlet within the wall
framing must be within 24" (610 mm) of the
planned control amplifier. One electrical service
may be used for the entire bath and related
electrical components.
Hot water supply should be 70% of capacity or
greater. Installations will vary.
ADA compliant when installed to the specific
requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
4-18-2015 04:33
