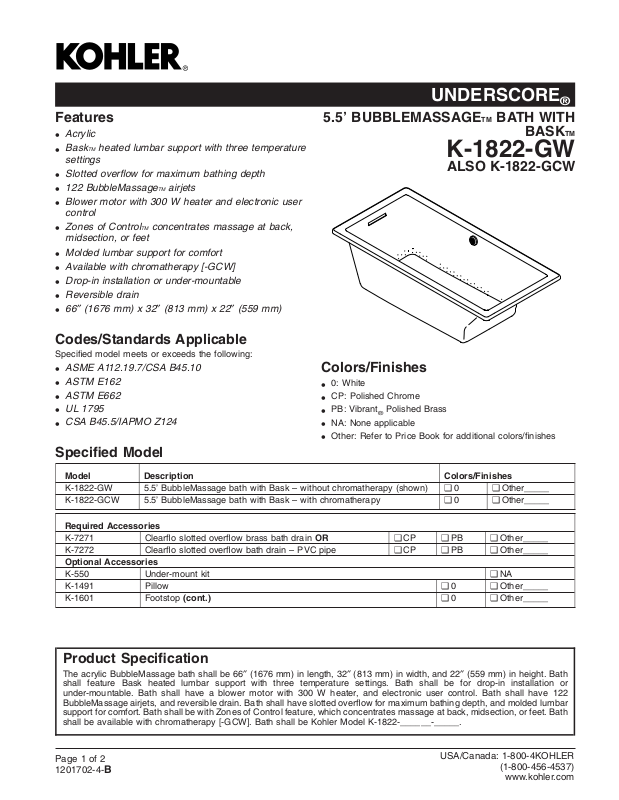

Page 1
UNDERSCORE
®
Features
Acrylic
•
TM heated lumbar support with three temperature
Bask
•
settings
Slotted overflow for maximum bathing depth
•
122 BubbleMassage
•
Blower motor with 300 W heater and electronic user
•
control
Zones of Control
•
midsection, or feet
Molded lumbar support for comfort
•
Available with chromatherapy [-GCW]
•
Drop-in installation or under-mountable
•
Reversible drain
•
66″ (1676 mm) x 32″ (813 mm) x 22″ (559 mm)
•
TM airjets
TM concentrates massage at back,
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.19.7/CSA B45.10
•
ASTM E162
•
ASTM E662
•
UL 1795
•
CSA B45.5/IAPMO Z124
•
Specified Model
5.5’ BUBBLEMASSAGETM BATH WITH
BASKTM
K-1822-GW
ALSO K-1822-GCW
Colors/Finishes
0: White
•
CP: Polished Chrome
•
PB: Vibrant®Polished Brass
•
NA: None applicable
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-1822-GW 5.5’ BubbleMassage bath with Bask – without chromatherapy (shown) ❑ 0 ❑ Other_____
K-1822-GCW 5.5’ BubbleMassage bath with Bask – with chromatherapy ❑ 0 ❑ Other_____
Required Accessories
K-7271 Clearflo slotted overflow brass bath drain OR ❑ CP ❑ PB ❑ Other_____
K-7272 Clearflo slotted overflow bath drain – PVC pipe ❑ CP ❑ PB ❑ Other_____
Optional Accessories
K-550 Under-mount kit ❑ NA
K-1491 Pillow ❑ 0 ❑ Other_____
K-1601 Footstop (cont.) ❑ 0 ❑ Other_____
Product Specification
The acrylic BubbleMassage bath shall be 66″ (1676 mm) in length, 32″ (813 mm) in width, and 22″ (559 mm) in height. Bath
shall feature Bask heated lumbar support with three temperature settings. Bath shall be for drop-in installation or
under-mountable. Bath shall have a blower motor with 300 W heater, and electronic user control. Bath shall have 122
BubbleMassage airjets, and reversible drain. Bath shall have slotted overflow for maximum bathing depth, and molded lumbar
support for comfort. Bath shall be with Zones of Control feature, which concentrates massage at back, midsection, or feet. Bath
shall be available with chromatherapy [-GCW]. Bath shall be Kohler Model K-1822-______-_____.
Page 1 of 2
1201702-4-
B
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
UNDERSCORE
(cont.) Optional Accessories
K-1703 Remote control ❑ NA
K-9498 3″ (76 mm) whirlpool keypad trim ❑ CP ❑ PB ❑ Other_____
K-1013469 Trim ring, interface, core ❑ CP ❑ PB ❑ Other_____
®
Technical Information
Fixture*:
Bathing well:
Basin area,
bottom
Basin area, top 59-5/8″ (1514 mm) x 25-1/2″ (648 mm)
Weight 117 lbs (53.1 kg)
To overflow:
Water depth 18″ (457 mm)
Capacity 85.8 gal (325 L)
* Approximate measurements for comparison only.
Blower motor/Heated surface 220-240 50/60 5
16"
(406 mm)
44-1/2″ (1130 mm) x 22-5/16″
(567 mm)
VHzA
66" (1676 mm)
Drop-in cutout 64-1/2″ (1638 mm) x 30-1/2″ (775 mm)
Required Electrical Service
Dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI) or Residual
Current Device (RCD):
Blower motor/Heated
surface
220-240 V, 15 A, 50/60 Hz
Installation Notes
Install this product according to the installation guide.
Floor support under bath must provide for a minimum of 50
lbs/square foot (242 kg/square meter) loading.
Hot water supply should be 70% of capacity or greater.
Installations will vary.
No change in measurement if connected with
drain illustrated. (K-7272)
16-3/4"
(425 mm)
2-7/16"
(62 mm)
Lumbar
Angle 40˚
13/16"
4-1/8"
(21 mm
(105 mm)
Product Diagram
UNDERSCORE®5.5’ BUBBLEMASSAGETM BATH WITH BASKTM
Page2of2
1201702-4-
B
1"
(25 mm)
22"
(559 mm)
Blower Motor/Control Access
30" (762 mm) W x
15" (381 mm) H Min
32" (813 mm)
21"
(533 mm)
1-1/2" Bath Drain
