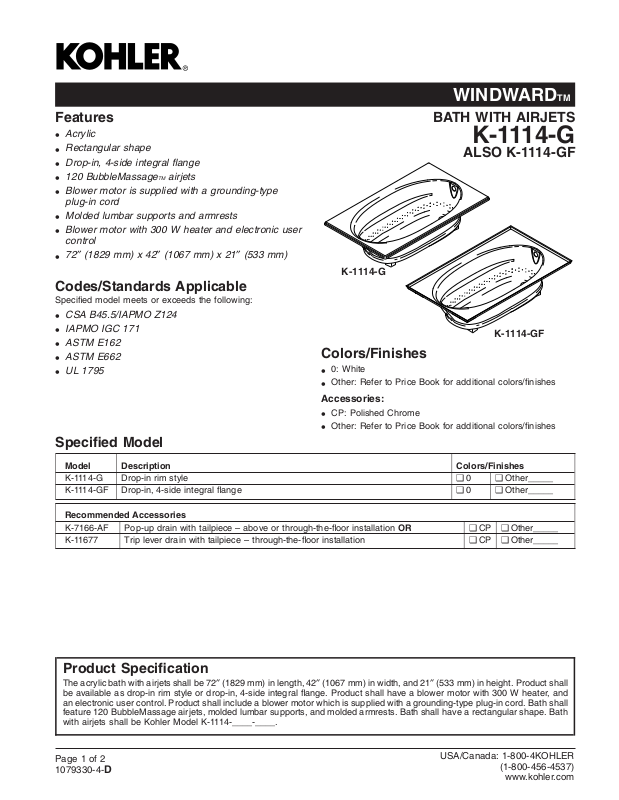

Page 1
WINDWARDTM
Features
Acrylic
•
Rectangular shape
•
Drop-in, 4-side integral flange
•
120 BubbleMassage
•
Blower motor is supplied with a grounding-type
•
plug-in cord
Molded lumbar supports and armrests
•
Blower motor with 300 W heater and electronic user
•
control
72″ (1829 mm) x 42″ (1067 mm) x 21″ (533 mm)
•
TM airjets
Codes/Standards Applicable
Specified model meets or exceeds the following:
CSA B45.5/IAPMO Z124
•
IAPMO IGC 171
•
ASTM E162
•
ASTM E662
•
UL 1795
•
Specified Model
BATH WITH AIRJETS
K-1114-G
ALSO K-1114-GF
K-1114-G
K-1114-GF
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories:
CP: Polished Chrome
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-1114-G Drop-in rim style ❑ 0 ❑ Other_____
K-1114-GF Drop-in, 4-side integral flange ❑ 0 ❑ Other_____
Recommended Accessories
K-7166-AF Pop-up drain with tailpiece – above or through-the-floor installation OR ❑ CP ❑ Other_____
K-11677 Trip lever drain with tailpiece – through-the-floor installation ❑ CP ❑ Other_____
Product Specification
The acrylic bath with airjets shall be 72″ (1829 mm) in length, 42″ (1067 mm) in width, and 21″ (533 mm) in height. Product shall
be available as drop-in rim style or drop-in, 4-side integral flange. Product shall have a blower motor with 300 W heater, and
an electronic user control. Product shall include a blower motor which is supplied with a grounding-type plug-in cord. Bath shall
feature 120 BubbleMassage airjets, molded lumbar supports, and molded armrests. Bath shall have a rectangular shape. Bath
with airjets shall be Kohler Model K-1114-____-____.
Page 1 of 2
1079330-4-
D
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
WINDWARDTM
Technical Information
Fixture*:
Bathing well:
Basin area
bottom
Basin area
top
Weight 132 lbs (60 kg)
To overflow
Water depth 15″ (381 mm)
Capacity 78.5 gal (297 L)
* Approximate measurements for comparison only.
Drop-in cutout dimensions:
70-1/2″ (1791 mm) x 40-1/2″ (1029 mm)
Blower motor Heater V Hz A
Minimum access panel blower motor:
20″ (508 mm) W x 15″ (381 mm) H required
55″ (1397 mm) x 23-1/4″ (591 mm)
64″ (1626 mm) x 32″ (813 mm)
300 W 120 60 5
Required Electrical Service
Dedicated circuit required, protected with a Class A
Ground-Fault Circuit-Interrupter (GFCI):
Pump/control 120 V, 5 A, 60 Hz
Locate the outlet behind the bath and within 24″ (610
mm) of the pump.
Installation Notes
Install this product according to the installation guide.
Floor support under this product must provide for a minimum
of 39 lbs/square foot (190 kg/square meter) loading.
If installing a rim-mount faucet, make sure there is no
interference with the drain overflow and circulating system
before drilling any holes. Consult local and national codes for
minimum air gap requirements if installing a spout on the
faucet deck.
No change in measurements if connected with
drain illustrated. (K-11677)
21"
(533 mm)
3-3/4"
(95 mm)
3-1/2"
(89 mm)
2-7/8" (73 mm)
11-1/16" (281 mm)
72" (1829 mm)
3" (76 mm)
1" (25 mm) from
the Floor to the
Bottom of the Drain
Recommended faucet area
1-1/4"
(32 mm)
Tile Flange
Blower/Control Access
20" (508 mm) W x
15" (381 mm) H Min
1-1/2"
(38 mm)
19-1/2"
(495 mm)
Detail
1-1/2"
(38 mm)
Drop-In Rim
Detail
42" (1067 mm)
1-1/2" OD
WINDWARDTM BATH WITH AIRJETS
Page2of2
1079330-4-
D
Product Diagram
