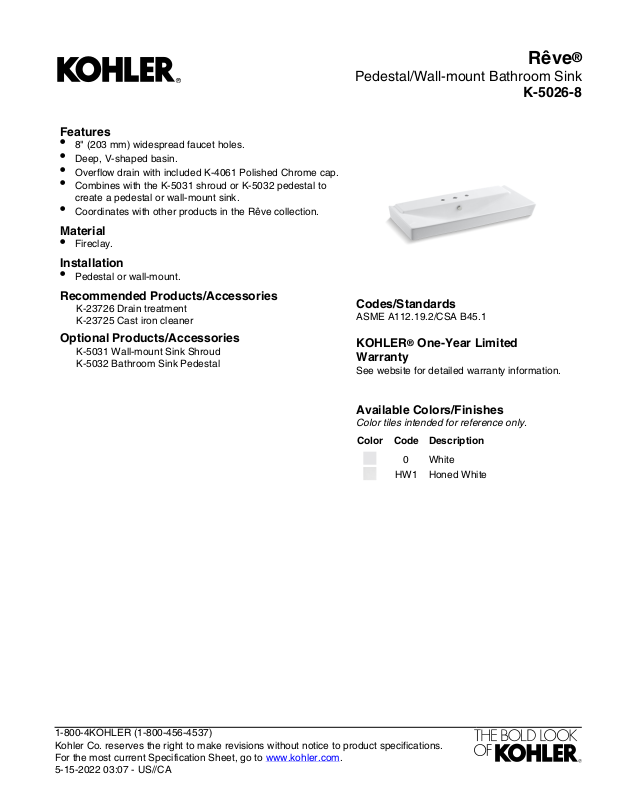

Page 1
Rêve
Features
•
8" (203 mm) widespread faucet holes.
•
Deep, V-shaped basin.
•
Overflow drain with included K-4061 Polished Chrome cap.
•
Combines with the K-5031 shroud or K-5032 pedestal to
create a pedestal or wall-mount sink.
•
Coordinates with other products in the Rêve collection.
Material
•
Fireclay.
Installation
•
Pedestal or wall-mount.
Recommended Products/Accessories
K-23726 Drain treatment
K-23725 Cast iron cleaner
Optional Products/Accessories
K-5031 Wall-mount Sink Shroud
K-5032 Bathroom Sink Pedestal
Codes/Standards
ASME A112.19.2/CSA B45.1
KOHLER® One-Year Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
0 White
HW1 Honed White
®
Pedestal/Wall-mount Bathroom Sink
K-5026-8
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-15-2022 03:07 - US//CA
Page 2
Rêve
4" (102 mm)
Centerline
of Backing
25-9/16" (649 mm)
11" (279 mm)
4" (102 mm)
5" (127 mm) for Shroud Installation
1-1/4" OD
3/8 Hot 3/8" Cold
3-9/16" (90 mm)
6-11/16"
(170 mm)
12-7/8"
(327 mm)
14"
(356 mm)
4-5/16"
(110 mm)
18-5/16"
(465 mm)
10-5/16"
(262 mm)
6-5/16"
(160 mm)
39-3/8" (1000 mm)
3-15/16"
(100 mm)
1-9/16" (40 mm)
Technical Information
All product dimensions are nominal.
Bowl configuration: Single
Installation: Pedestal, Wall-mount
Bowl area (Only): Length: 39-3/8" (1000 mm)
Width: 12" (305 mm)
Water depth: 3" (76 mm)
Number of deck
holes:
3
Faucet hole spacing: 8" (203 mm)
Faucet hole(s): 1-3/8" (35 mm)
Drain hole: 1-3/4" (44 mm)
Notes
Install this product according to the installation
instructions.
®
Pedestal/Wall-mount Bathroom Sink
K-5026-8
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
5-15-2022 03:07 - US//CA
