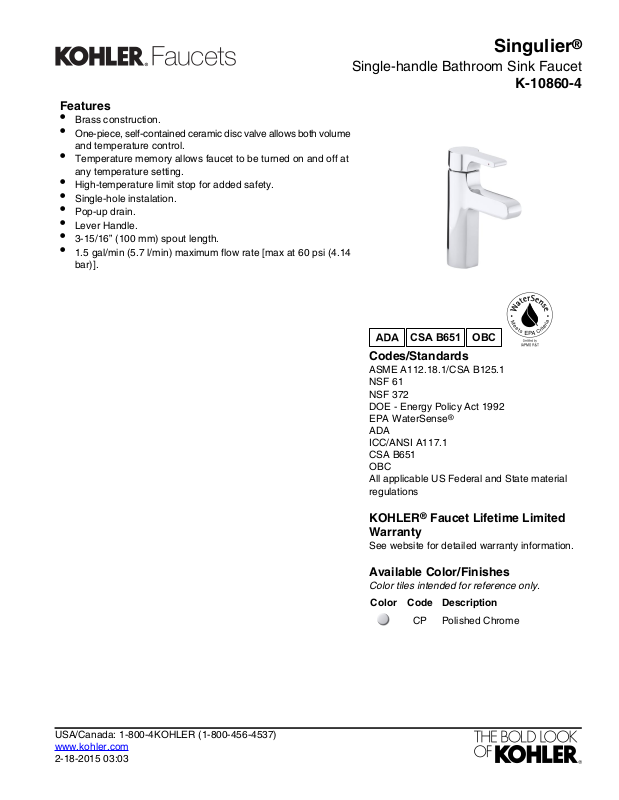

Page 1
Features
CSA B651
OBC
•
Brass construction.
•
One-piece, self-contained ceramic disc valve allows both volume
and temperature control.
•
Temperature memory allows faucet to be turned on and off at
any temperature setting.
•
High-temperature limit stop for added safety.
•
Single-hole instalation.
•
Pop-up drain.
•
Lever Handle.
•
3-15/16” (100 mm) spout length.
•
1.5 gal/min (5.7 l/min) maximum flow rate [max at 60 psi (4.14
bar)].
Singulier
®
Single-handle Bathroom Sink Faucet
K-10860-4
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF 61
NSF 372
DOE - Energy Policy Act 1992
EPA WaterSense
ADA
ICC/ANSI A117.1
CSA B651
OBC
All applicable US Federal and State material
regulations
®
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 03:03
Page 2
1-7/8" (48 mm)
Singulier
®
Single-handle Bathroom Sink Faucet
K-10860-4
Technical Information
All product dimensions are nominal.
3-15/16" (100 mm)Spout reach:
YESDrain tailpiece
included:
Faucet:
1.5 gal/min (5.7 l/min)Flow rate:
60 psi (4.1 bar)Pressure:
Notes
Install this product according to the installation
guide.
ADA, OBC, CSA B651 compliant when installed
to the specific requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 03:03
