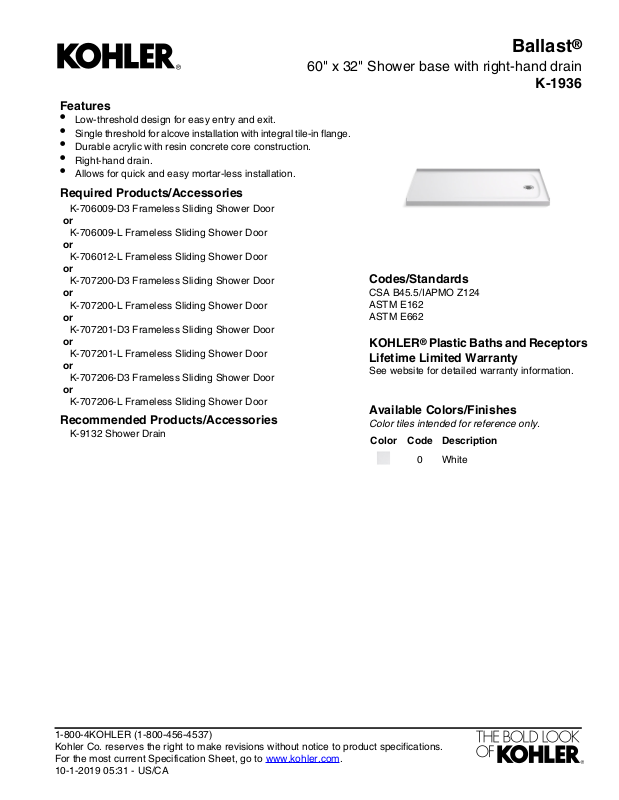

Page 1
60" x 32" Shower base with right-hand drain
Features
•
Low-threshold design for easy entry and exit.
•
Single threshold for alcove installation with integral tile-in flange.
•
Durable acrylic with resin concrete core construction.
•
Right-hand drain.
•
Allows for quick and easy mortar-less installation.
Required Products/Accessories
K-706009-D3 Frameless Sliding Shower Door
or
K-706009-L Frameless Sliding Shower Door
or
K-706012-L Frameless Sliding Shower Door
or
K-707200-D3 Frameless Sliding Shower Door
or
K-707200-L Frameless Sliding Shower Door
or
K-707201-D3 Frameless Sliding Shower Door
or
K-707201-L Frameless Sliding Shower Door
or
K-707206-D3 Frameless Sliding Shower Door
or
K-707206-L Frameless Sliding Shower Door
Recommended Products/Accessories
K-9132 Shower Drain
Ballast
®
K-1936
Codes/Standards
CSA B45.5/IAPMO Z124
ASTM E162
ASTM E662
KOHLER® Plastic Baths and Receptors
Lifetime Limited Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
10-1-2019 05:31 - US/CA
White0
Page 2
Flange Detail
Ballast
®
60" x 32" Shower base with right-hand drain
K-1936
Technical Information
All product dimensions are nominal.
Three-wall alcoveInstallation:
RightDrain location:
128 lbs (58.1 kg)Weight:
Notes
Measure your actual product for rough-in details.
Install this product according to the installation
instructions.
CAUTION: Risk of property damage and personal
injury. Using this product without a shower door
may cause water damage and may create a wet
and potentially dangerous environment. Install a
shower door with this product.
A shower door with a bottom track is required for
this receptor. Kohler Co. shall not be responsible
for problems encountered due to the installation
and use of other manufacturer's shower doors.
Refer to Kohler Fixtures Price Book for complete
list of required shower doors for this product.
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
10-1-2019 05:31 - US/CA
