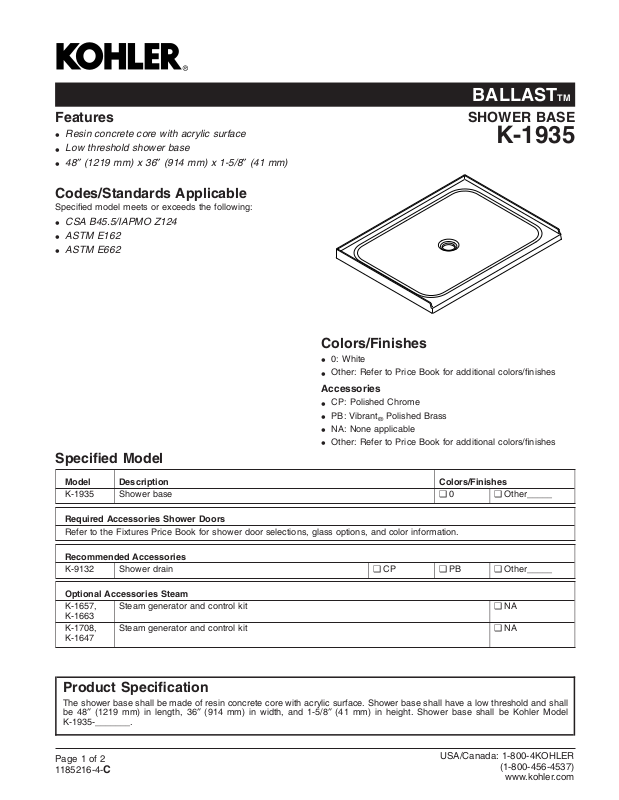

Page 1
BALLASTTM
Features
Resin concrete core with acrylic surface
•
Low threshold shower base
•
48″ (1219 mm) x 36″ (914 mm) x 1-5/8″ (41 mm)
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
CSA B45.5/IAPMO Z124
•
ASTM E162
•
ASTM E662
•
Specified Model
SHOWER BASE
K-1935
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
CP: Polished Chrome
•
PB: Vibrant®Polished Brass
•
NA: None applicable
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-1935 Shower base ❑ 0 ❑ Other_____
Required Accessories Shower Doors
Refer to the Fixtures Price Book for shower door selections, glass options, and color information.
Recommended Accessories
K-9132 Shower drain ❑ CP ❑ PB ❑ Other_____
Optional Accessories Steam
K-1657,
K-1663
K-1708,
K-1647
Steam generator and control kit ❑ NA
Steam generator and control kit ❑ NA
Product Specification
The shower base shall be made of resin concrete core with acrylic surface. Shower base shall have a low threshold and shall
be 48″ (1219 mm) in length, 36″ (914 mm) in width, and 1-5/8″ (41 mm) in height. Shower base shall be Kohler Model
K-1935-_______.
Page 1 of 2
1185216-4-
C
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
BALLASTTM
Technical Information
Fixture*:
Weight 107 lbs (48.7 kg)
Configuration one-piece
Drain hole Ø 3-3/8″ (86 mm)
* Approximate measurements for comparison only.
Installation Notes
CAUTION: Risk of property damage and personal injury.
Using this product without a shower door may cause water
damage and may create a wet and potentially dangerous
environment. Install a shower door with this product.
Install this product according to the installation guide.
Follow all plumbing codes applicable to the installation of this
product.
Install this product in a stud pocket of a suitable size and
shape. The stud pocket opening tolerance is +1/4″ (6 mm),
-0″ (0 mm). The overall size of the product is shown below.
When fire rated construction is specified, dimensions are to
the inside of the fire-rated wall.
Floor leveling compound may be required to level the fixture.
Shimming may be required between the stud frame and the
fixture.
2-7/8" (73 mm)
1-5/8" (41 mm)
Threshold Height
2-1/4"
(57 mm)
24" (610 mm)
48" (1219 mm)
18"
(457 mm)
1-1/4"
(32 mm)
36"
(914 mm)
3/8"
(10 mm)
3/16"
(5 mm) R.
Flange Detail
BALLASTTM SHOWER BASE
Page2of2
1185216-4-
C
Product Diagram
