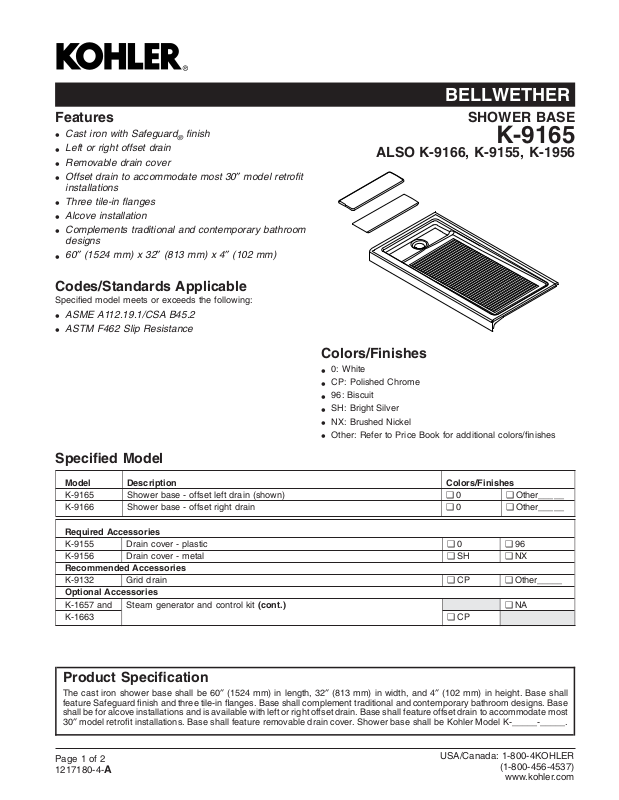

Page 1
BELLWETHER
Features
Cast iron with Safeguard
•
Left or right offset drain
•
Removable drain cover
•
Offset drain to accommodate most 30″ model retrofit
•
installations
Three tile-in flanges
•
Alcove installation
•
Complements traditional and contemporary bathroom
•
designs
60″ (1524 mm) x 32″ (813 mm) x 4″ (102 mm)
•
®
finish
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.19.1/CSA B45.2
•
ASTM F462 Slip Resistance
•
SHOWER BASE
K-9165
ALSO K-9166, K-9155, K-1956
Colors/Finishes
0: White
•
CP: Polished Chrome
•
96: Biscuit
•
SH: Bright Silver
•
NX: Brushed Nickel
•
Other: Refer to Price Book for additional colors/finishes
•
Specified Model
Model Description Colors/Finishes
K-9165 Shower base - offset left drain (shown) ❑ 0 ❑ Other_____
K-9166 Shower base - offset right drain ❑ 0 ❑ Other_____
Required Accessories
K-9155 Drain cover - plastic ❑ 0 ❑ 96
K-9156 Drain cover - metal ❑ SH ❑ NX
Recommended Accessories
K-9132 Grid drain ❑ CP ❑ Other_____
Optional Accessories
K-1657 and Steam generator and control kit (cont.) ❑ NA
K-1663 ❑ CP
Product Specification
The cast iron shower base shall be 60″ (1524 mm) in length, 32″ (813 mm) in width, and 4″ (102 mm) in height. Base shall
feature Safeguard finish and three tile-in flanges. Base shall complement traditional and contemporary bathroom designs. Base
shall be for alcove installations and is available with left or right offset drain. Base shall feature offset drain to accommodate most
30″ model retrofit installations. Base shall feature removable drain cover. Shower base shall be Kohler Model K-_____-_____.
Page 1 of 2
1217180-4-
USA/Canada: 1-800-4KOHLER
A
(1-800-456-4537)
www.kohler.com
Page 2
BELLWETHER
(cont.) Optional Accessories
K-1708 and Power Clean
K-1647-PC ❑ CP ❑ Other_____
TM steam generator and control kit ❑ NA
Technical Information
Fixture*:
Configuration One-piece
Weight 210 lbs (95.3 kg)
Drain hole Ø 3-3/8″ (86 mm)
* Approximate measurements for comparison only.
Installation Notes
Install this product according to the installation guide.
NOTE: This model provides an offset drain to accommodate
most 30″ model retrofit installations.
The dimensions are applicable for this product only and
should not be used to fabricate substitute bases for shower
enclosures.
The K-1657/K-1663 or K-1708/K-1647-PC steam
generator/control kit are designed for use with this product.
Kohler shall not be responsible for problems encountered due
to the installation and use of other manufacturer’s steam
generators.
30˚
1/2"
(13 mm)
60" (1524 mm)
6-1/2" (165 mm)
14-1/8"
(359 mm)
3-3/4"
(95 mm)
BELLWETHER SHOWER BASE
Page2of2
1217180-4-
A
32"
(803 mm)
4-1/2"
(114 mm)
Product Diagram
25-3/8"
(645 mm)
7-1/2"
(191 mm)
K-9155
7-1/2"
(191 mm)
25-3/8"
(645 mm)
K-9156
