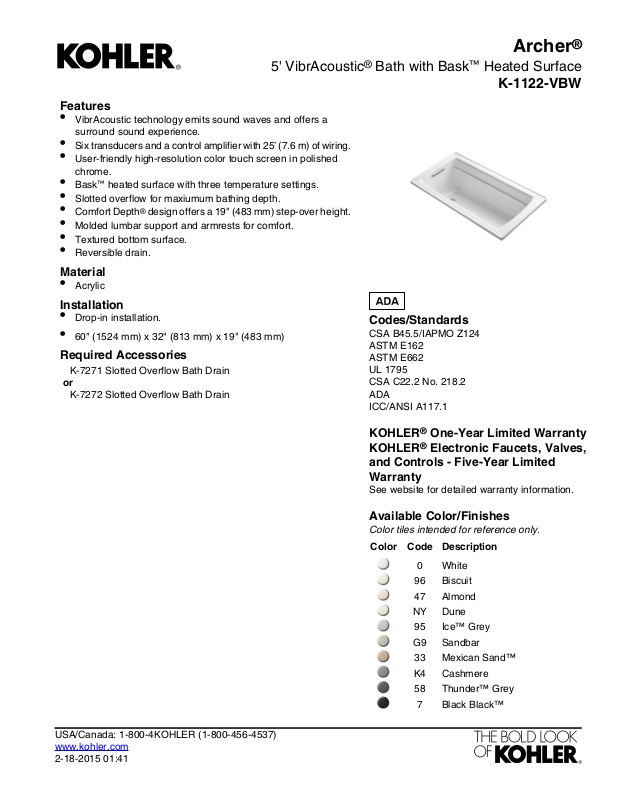

Page 1
5' VibrAcoustic® Bath with Bask™ Heated Surface
Features
•
VibrAcoustic technology emits sound waves and offers a
surround sound experience.
•
Six transducers and a control amplifier with 25’ (7.6 m) of wiring.
•
User-friendly high-resolution color touch screen in polished
chrome.
•
Bask™ heated surface with three temperature settings.
•
Slotted overflow for maxiumum bathing depth.
•
Comfort Depth® design offers a 19" (483 mm) step-over height.
•
Molded lumbar support and armrests for comfort.
•
Textured bottom surface.
•
Reversible drain.
Material
•
Acrylic
Installation
•
Drop-in installation.
•
60" (1524 mm) x 32" (813 mm) x 19" (483 mm)
Required Accessories
K-7271 Slotted Overflow Bath Drain
or
K-7272 Slotted Overflow Bath Drain
Codes/Standards
CSA B45.5/IAPMO Z124
ASTM E162
ASTM E662
UL 1795
CSA C22.2 No. 218.2
ADA
ICC/ANSI A117.1
Archer
®
K-1122-VBW
KOHLER® One-Year Limited Warranty
KOHLER® Electronic Faucets, Valves,
and Controls - Five-Year Limited
Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
DuneNY
Ice™ Grey95
SandbarG9
Mexican Sand™33
CashmereK4
Thunder™ Grey58
Black Black™7
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 01:41
Page 2
19"
Archer
®
5' VibrAcoustic® Bath with Bask™ Heated Surface
K-1122-VBW
Required Electrical Service
One circuit required, protected with Class A Ground-Fault
Circuit-Interrupter (GFCI) or Residual Current Device (RCD).
120 V, 15 A, 50/60 HzAmplifier, Heater:
Technical Information
All product dimensions are nominal.
Drop-inInstallation:
ReversibleDrain location:
45-1/8" x 19-11/16" (1146 mm x 500 mm)Basin area, bottom:
52-3/4" x 25-5/16" (1340 mm x 643 mm)Basin area, top:
86 lbs (39 kg)Weight:
44 lbs/ft² (214.8 kg/m²)Minimum floor load:
15" (381 mm)Water depth:
58 gal (219.6 L)Water capacity:
Cutout:
Electrical rating:
Drop-in, 58-1/2" x 30-1/2" (1486 mm x
775 mm)
Amplifier: 120 V, 50/60 Hz, 15 W
Heater: 120 V, 1.1 A, 60 Hz, 65 W
Notes
Measure your actual product for roughing-in
details.
Install this product according to the installation
guide. Ensure that the interface, amplifier, and
transducers are functional before completing the
installation.
Control amplifier fits 16" (406 mm) center studs.
25’ (7.6 m) cables are included.
Locate the bath within 24" (610 mm) of a
GFCI-protected 120 V, 15 A grounded electrical
outlet. A second grounded outlet within the wall
framing must be within 24" (610 mm) of the
planned control amplifier. One electrical service
may be used for the entire bath and related
electrical components.
ADA compliant when installed to the specific
requirements of these regulations.
