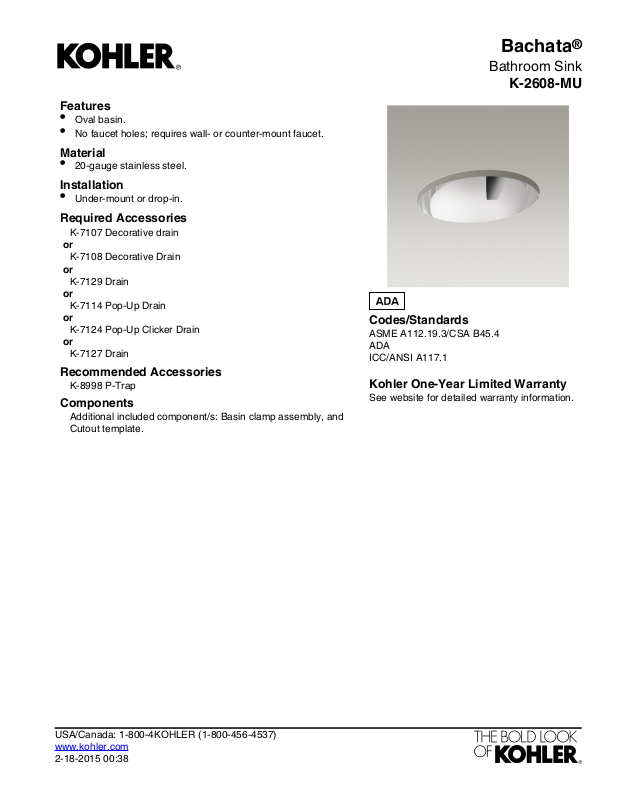

Page 1
Features
•
Oval basin.
•
No faucet holes; requires wall- or counter-mount faucet.
Material
•
20-gauge stainless steel.
Installation
•
Under-mount or drop-in.
Required Accessories
K-7107 Decorative drain
or
K-7108 Decorative Drain
or
K-7129 Drain
or
K-7114 Pop-Up Drain
or
K-7124 Pop-Up Clicker Drain
or
K-7127 Drain
Recommended Accessories
K-8998 P-Trap
Components
Additional included component/s: Basin clamp assembly, and
Cutout template.
Bachata
Bathroom Sink
K-2608-MU
Codes/Standards
ASME A112.19.3/CSA B45.4
ADA
ICC/ANSI A117.1
Kohler One-Year Limited Warranty
See website for detailed warranty information.
®
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 00:38
Page 2
9-15/16"
Bachata
®
Bathroom Sink
K-2608-MU
Technical Information
All product dimensions are nominal.
Drop-In, Under-mountInstallation:
Water depth: 5-3/8" (137 mm)Bowl area
1-5/8" (41 mm)Drain hole:
Template:
Drop-in, 1248333-7, required, included
Under-mount, 1248333-7, required,
included
Notes
Install this product according to the installation
guide.
Installer must supply anchors based on
countertop material and thickness.
ADA compliant when installed to the specific
requirements of these regulations.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 00:38
