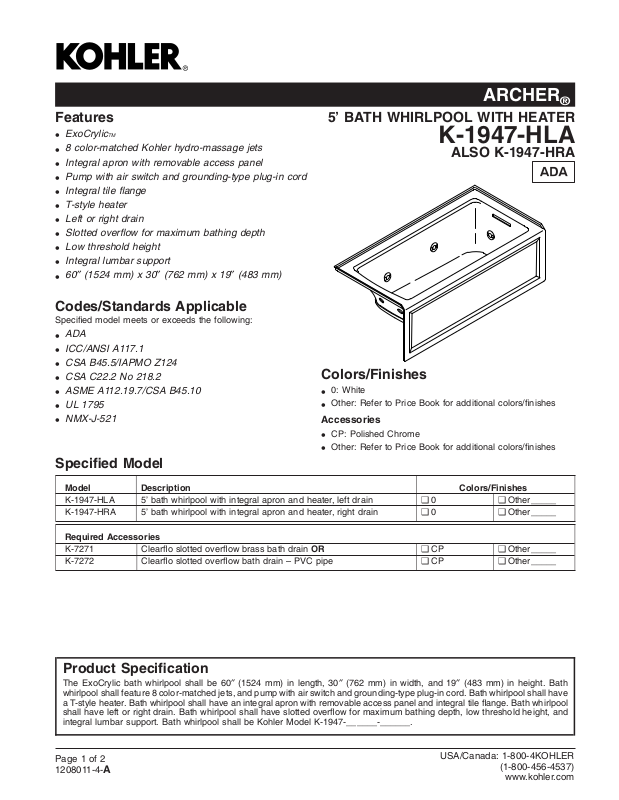

Page 1
ARCHER
®
Features
ExoCrylic
•
8 color-matched Kohler hydro-massage jets
•
Integral apron with removable access panel
•
Pump with air switch and grounding-type plug-in cord
•
Integral tile flange
•
T-style heater
•
Left or right drain
•
Slotted overflow for maximum bathing depth
•
Low threshold height
•
Integral lumbar support
•
60″ (1524 mm) x 30″ (762 mm) x 19″ (483 mm)
•
TM
Codes/Standards Applicable
Specified model meets or exceeds the following:
ADA
•
ICC/ANSI A117.1
•
CSA B45.5/IAPMO Z124
•
CSA C22.2 No 218.2
•
ASME A112.19.7/CSA B45.10
•
UL 1795
•
NMX-J-521
•
5’ BATH WHIRLPOOL WITH HEATER
K-1947-HLA
ALSO K-1947-HRA
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
CP: Polished Chrome
•
Other: Refer to Price Book for additional colors/finishes
•
Specified Model
Model Description Colors/Finishes
K-1947-HLA 5’ bath whirlpool with integral apron and heater, left drain ❑ 0 ❑ Other_____
K-1947-HRA 5’ bath whirlpool with integral apron and heater, right drain ❑ 0 ❑ Other_____
Required Accessories
K-7271 Clearflo slotted overflow brass bath drain OR ❑ CP ❑ Other_____
K-7272 Clearflo slotted overflow bath drain – PVC pipe ❑ CP ❑ Other_____
Product Specification
The ExoCrylic bath whirlpool shall be 60″ (1524 mm) in length, 30″ (762 mm) in width, and 19″ (483 mm) in height. Bath
whirlpool shall feature 8 color-matched jets, and pump with air switch and grounding-type plug-in cord. Bath whirlpool shall have
a T-style heater. Bath whirlpool shall have an integral apron with removable access panel and integral tile flange. Bath whirlpool
shall have left or right drain. Bath whirlpool shall have slotted overflow for maximum bathing depth, low threshold height, and
integral lumbar support. Bath whirlpool shall be Kohler Model K-1947-______-______.
Page 1 of 2
1208011-4-
A
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
ARCHER
®
Technical Information
Fixture*:
Bathing well
Basin area, bottom 45-1/8″ (1146 mm) x
Basin area, top 52-1/8″ (1324 mm) x
Weight 113 lbs (51.3 kg)
To overflow
Water depth 15-1/8″ (384 mm)
Capacity 57 gal (216.9 L)
* Approximate measurements for comparison only.
Pump: V Hz A
1-speed 120 60 7
Heater: kW V Hz A
19-11/16″ (500 mm)
22-1/16″ (560 mm)
1.5 120 60 12.5
Required Electrical Service
Two dedicated circuits required, each protected with
Class A Ground-Fault Circuit-Interrupter (GFCI):
Pump/control 120 V, 15 A, 60 Hz
Heater 120 V, 15 A, 60 Hz
Installation Notes
Install this product according to the installation guide.
Pump is supplied with 24″ (610 mm) grounding-type plug-in
cord.
Floor support under this product must provide for a minimum
of 49 lbs/square foot (240 kg/square meter) loading.
The hot water supply should be 70% of the capacity of the
bath or greater. Installations will vary.
Will comply with ADA when installed per Section 607
Bathtubs of the Act.
15"
(381 mm)
1-1/4"
(32 mm)
2-1/2"
(64 mm)
1-1/2"
Bath Drain
11-1/4"
(286 mm)
No change in measurements if connected
with drain illustrated. (K-7272)
1-1/4"
(32 mm)
1/2" (13 mm) R.
Integral Flange
Detail
60" (1524 mm) 30" (762 mm)
Lumbar
Angle 24˚
19"
(483 mm)
3/4" (19 mm)
4-1/8"
(105 mm)
Product Diagram
ARCHER®5’ BATH WHIRLPOOL WITH HEATER
Page2of2
1208011-4-
A
