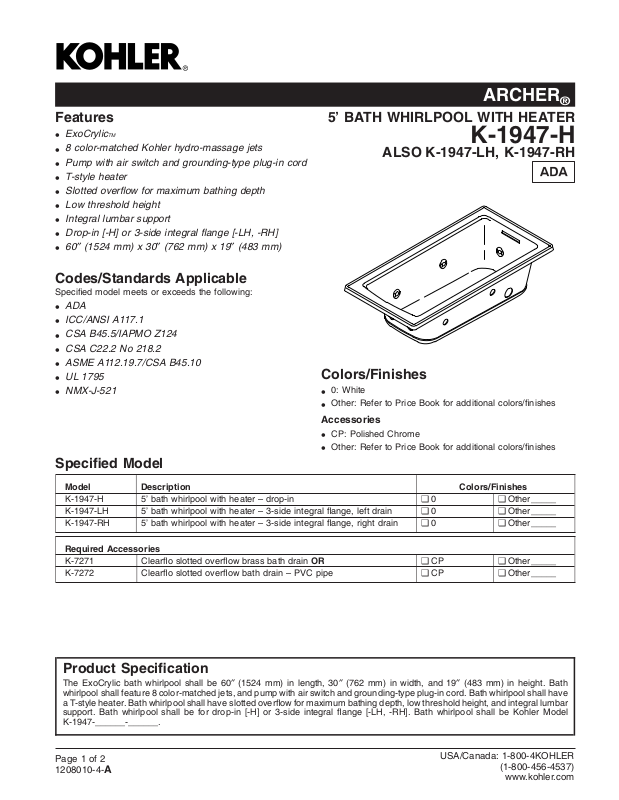

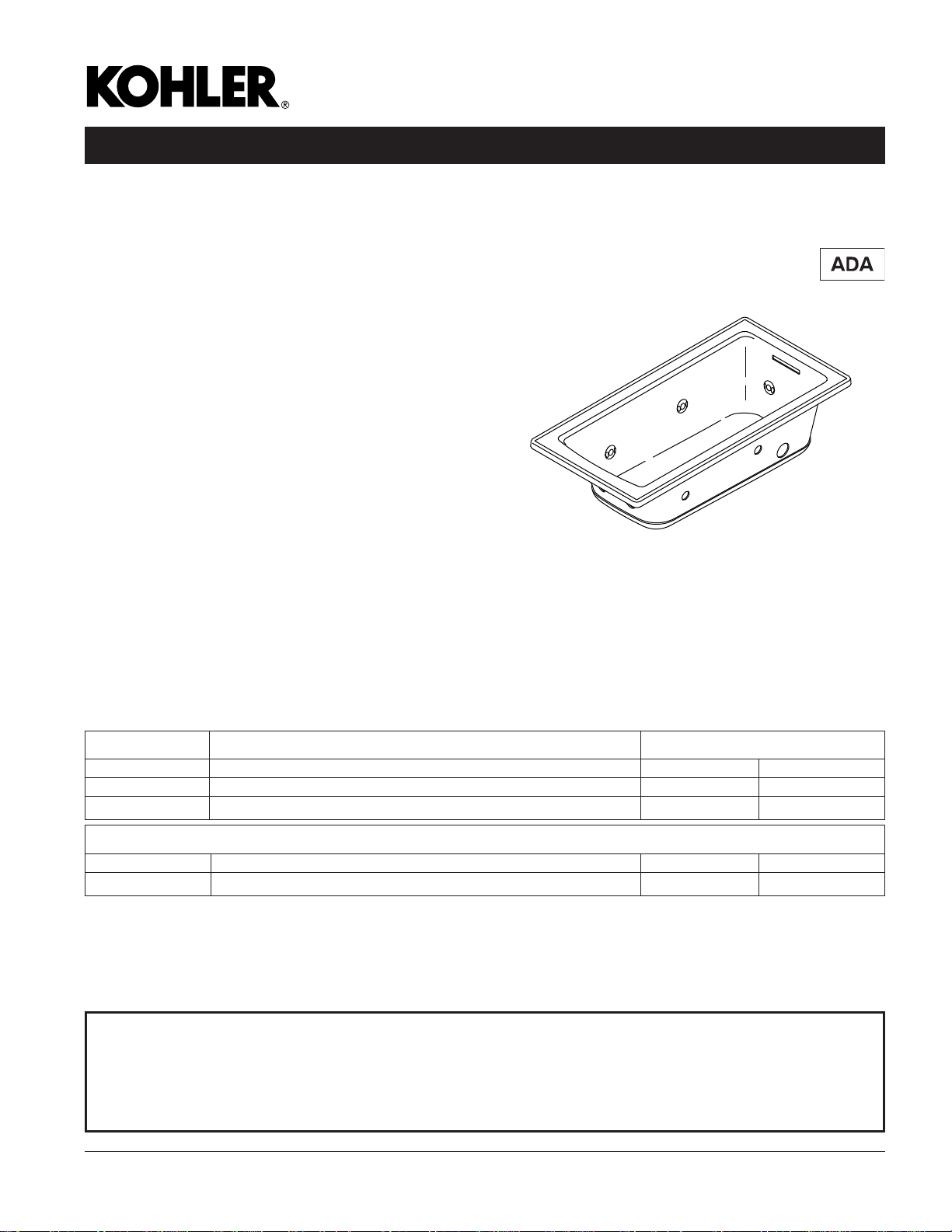

Page 1
ARCHER
®
Features
ExoCrylic
•
8 color-matched Kohler hydro-massage jets
•
Pump with air switch and grounding-type plug-in cord
•
T-style heater
•
Slotted overflow for maximum bathing depth
•
Low threshold height
•
Integral lumbar support
•
Drop-in [-H] or 3-side integral flange [-LH, -RH]
•
60″ (1524 mm) x 30″ (762 mm) x 19″ (483 mm)
•
TM
Codes/Standards Applicable
Specified model meets or exceeds the following:
ADA
•
ICC/ANSI A117.1
•
CSA B45.5/IAPMO Z124
•
CSA C22.2 No 218.2
•
ASME A112.19.7/CSA B45.10
•
UL 1795
•
NMX-J-521
•
Specified Model
5’ BATH WHIRLPOOL WITH HEATER
K-1947-H
ALSO K-1947-LH, K-1947-RH
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
CP: Polished Chrome
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-1947-H 5’ bath whirlpool with heater – drop-in ❑ 0 ❑ Other_____
K-1947-LH 5’ bath whirlpool with heater – 3-side integral flange, left drain ❑ 0 ❑ Other_____
K-1947-RH 5’ bath whirlpool with heater – 3-side integral flange, right drain ❑ 0 ❑ Other_____
Required Accessories
K-7271 Clearflo slotted overflow brass bath drain OR ❑ CP ❑ Other_____
K-7272 Clearflo slotted overflow bath drain – PVC pipe ❑ CP ❑ Other_____
Product Specification
The ExoCrylic bath whirlpool shall be 60″ (1524 mm) in length, 30″ (762 mm) in width, and 19″ (483 mm) in height. Bath
whirlpool shall feature 8 color-matched jets, and pump with air switch and grounding-type plug-in cord. Bath whirlpool shall have
a T-style heater. Bath whirlpool shall have slotted overflow for maximum bathing depth, low threshold height, and integral lumbar
support. Bath whirlpool shall be for drop-in [-H] or 3-side integral flange [-LH, -RH]. Bath whirlpool shall be Kohler Model
K-1947-______-______.
Page 1 of 2
1208010-4-
A
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
ARCHER
®
Technical Information
Required Electrical Service
Fixture*:
Bathing well
Basin area, bottom 45-1/8″ (1146 mm) x
19-11/16″ (500 mm)
Basin area, top 52-1/8″ (1324 mm) x
22-1/16″ (560 mm)
Weight 98 lbs (44.5 kg)
To overflow
Water depth 15-1/8″ (384 mm)
Capacity 57 gal (216.9 L)
* Approximate measurements for comparison only.
Drop-in cutout 58-1/2″ (1486 mm) x 28-1/2″ (724 mm)
Pump: V Hz A
1-speed 120 60 7
Heater: kW V Hz A
1.5 120 60 12.5
Two dedicated circuits required, each protected with
Class A Ground-Fault Circuit-Interrupter (GFCI):
Pump/control 120 V, 15 A, 60 Hz
Heater 120 V, 15 A, 60 Hz
Installation Notes
Install this product according to the installation guide.
Pump is supplied with 24″ (610 mm) grounding-type plug-in
cord.
Floor support under this product must provide for a minimum
of 48 lbs/square foot (234 kg/square meter) loading.
The hot water supply should be 70% of the capacity of the
bath or greater. Installations will vary.
Will comply with ADA when installed per Section 607
Bathtubs of the Act.
No change in measurements if connected
with drain illustrated. (K-7272)
15"
(381 mm)
1-1/4"
(32 mm)
2-1/2"
(64 mm)
1-1/2"
Bath Drain
11-1/4"
(286 mm)
1-1/4"
(32 mm)
1-1/2"
(38 mm)
1/2" (13 mm) R.
Integral Flange
Drop-in Rim
Detail
Pump/Control Access
20" (508 mm) W x 15" (381 mm) H
60" (1524 mm) 30" (762 mm)
Lumbar Angle 24˚
19"
(483 mm)
K-1947-H
20-1/4"
(514 mm)
K-1947-LH
K-1947-RH
3/4" (19 mm)
4-1/8"
(105 mm)

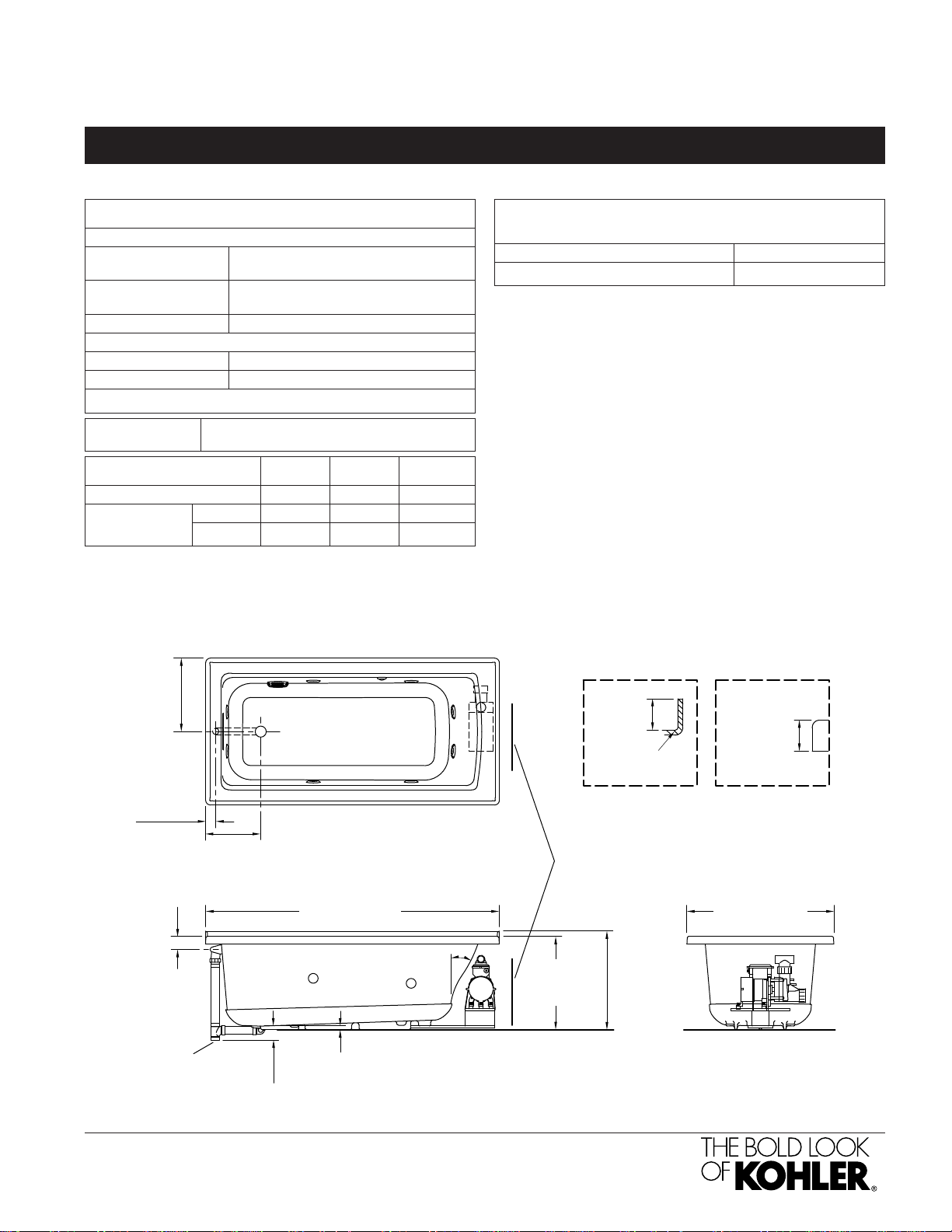

Product Diagram
Detail
ARCHER®5’ BATH WHIRLPOOL WITH HEATER
Page2of2
1208010-4-
