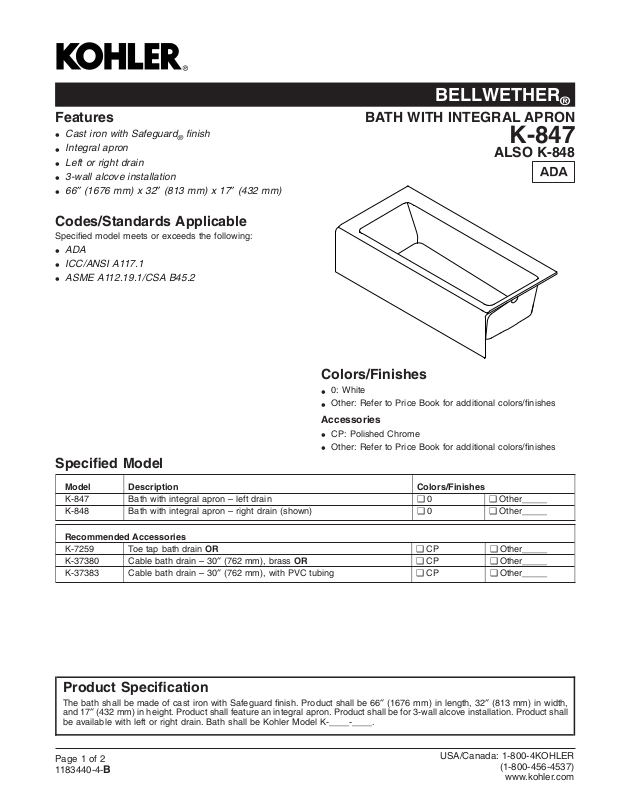

BELLWETHER
®
Features
Cast iron with Safeguard
•
Integral apron
•
Left or right drain
•
3-wall alcove installation
•
66″ (1676 mm) x 32″ (813 mm) x 17″ (432 mm)
•
®
finish
Codes/Standards Applicable
Specified model meets or exceeds the following:
ADA
•
ICC/ANSI A117.1
•
ASME A112.19.1/CSA B45.2
•
Specified Model
BATH WITH INTEGRAL APRON
K-847
ALSO K-848
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
CP: Polished Chrome
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-847 Bath with integral apron – left drain ❑ 0 ❑ Other_____
K-848 Bath with integral apron – right drain (shown) ❑ 0 ❑ Other_____
Recommended Accessories
K-7259 Toe tap bath drain OR ❑ CP ❑ Other_____
K-37380 Cable bath drain – 30″ (762 mm), brass OR ❑ CP ❑ Other_____
K-37383 Cable bath drain – 30″ (762 mm), with PVC tubing ❑ CP ❑ Other_____
Product Specification
The bath shall be made of cast iron with Safeguard finish. Product shall be 66″ (1676 mm) in length, 32″ (813 mm) in width,
and 17″ (432 mm) in height. Product shall feature an integral apron. Product shall be for 3-wall alcove installation. Product shall
be available with left or right drain. Bath shall be Kohler Model K-____-____.
Page 1 of 2
1183440-4-
B
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
BELLWETHER
®
Technical Information
Fixture*:
Bathing well:
Basin area,
bottom
Basin area,
top
Weight 400 lbs (181 kg)
To overflow:
Water depth 11-11/16″ (297 mm)
Capacity 49 gal (185.7 L)
*Approximate measurements for comparison only.
50-3/4″ (1289 mm) x 20-5/16″ (516 mm)
58-7/16″ (1484 mm) x 22-5/8″ (575 mm)
Installation Notes
Install this product according to the installation guide.
Floor support under the bath must provide for a minimum of
57 lbs/square foot (278.3 kg/square meter) loading.
Will comply with ADA when installed per Section 607
Bathtubs of the ADA 2010 Standards for Accessible Design.
Lumbar
Angle 39˚
66" (1676 mm)
1/4" (6 mm)
2-7/8"
(73 mm)
9"
(229 mm)
16"
(406 mm)
1-3/16"
(30 mm)
3-1/4"
(83 mm)
17"
(432 mm)
2-5/8" (67 mm)
No change in measurement if connected with
drain illustrated. (K-7259)
Rim Flange Detail
1/4"
(6 mm)
5/8"
(16 mm)
16-1/2"
(419 mm)
1/2"
(13 mm)
32"
(813 mm)
1/2"
(13 mm)
1-1/2" Bath Drain
Product Diagram
BELLWETHER®BATH WITH INTEGRAL APRON
Page2of2
1183440-4-
B
