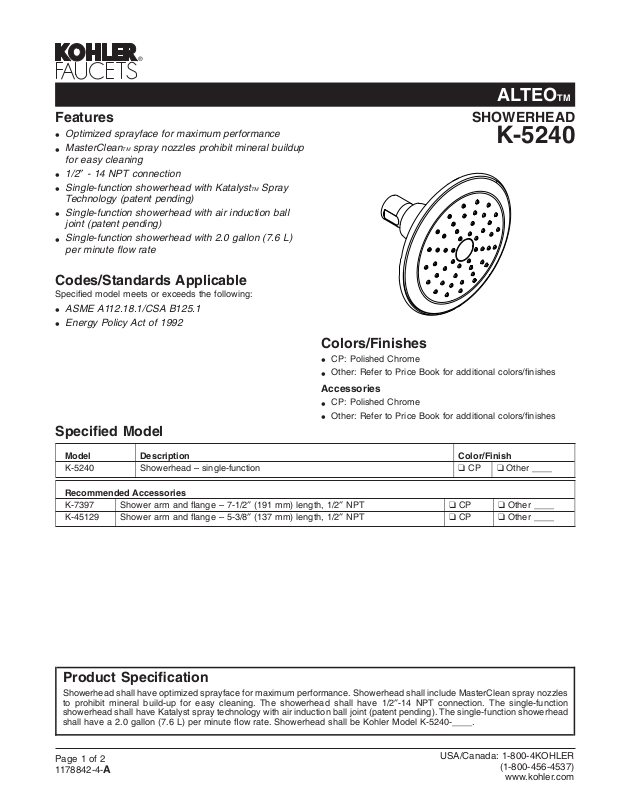

Page 1
ALTEOTM
Features
Optimized sprayface for maximum performance
•
MasterClean
•
for easy cleaning
1/2″ - 14 NPT connection
•
Single-function showerhead with Katalyst
•
Technology (patent pending)
Single-function showerhead with air induction ball
•
joint (patent pending)
Single-function showerhead with 2.0 gallon (7.6 L)
•
per minute flow rate
TM spray nozzles prohibit mineral buildup
TM Spray
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.18.1/CSA B125.1
•
Energy Policy Act of 1992
•
Specified Model
SHOWERHEAD
K-5240
Colors/Finishes
CP: Polished Chrome
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
CP: Polished Chrome
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Color/Finish
K-5240 Showerhead – single-function ❑ CP ❑ Other ____
Recommended Accessories
K-7397 Shower arm and flange – 7-1/2″ (191 mm) length, 1/2″ NPT ❑ CP ❑ Other ____
K-45129 Shower arm and flange – 5-3/8″ (137 mm) length, 1/2″ NPT ❑ CP ❑ Other ____
Product Specification
Showerhead shall have optimized sprayface for maximum performance. Showerhead shall include MasterClean spray nozzles
to prohibit mineral build-up for easy cleaning. The showerhead shall have 1/2″-14 NPT connection. The single-function
showerhead shall have Katalyst spray technology with air induction ball joint (patent pending). The single-function showerhead
shall have a 2.0 gallon (7.6 L) per minute flow rate. Showerhead shall be Kohler Model K-5240-____.
Page 1 of 2
1178842-4-
USA/Canada: 1-800-4KOHLER
A
(1-800-456-4537)
www.kohler.com
Page 2
ALTEOTM
Installation Notes
Install this product according to the installation guide.
ALTEOTM SHOWERHEAD
Page2of2
1178842-4-
A
3-7/8"
(98 mm)
Ø 5-11/16"
(144 mm)
Product Diagram
