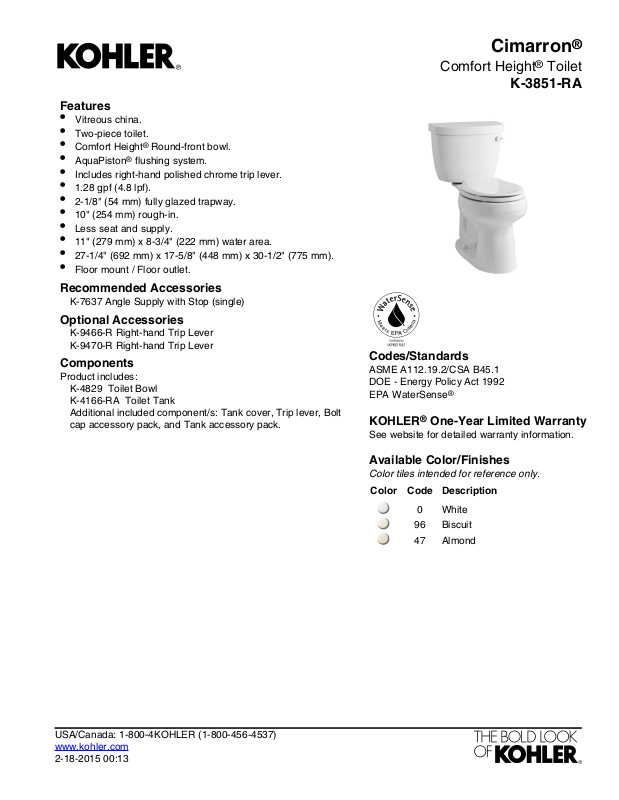

Page 1
Features
•
Vitreous china.
•
Two-piece toilet.
•
Comfort Height® Round-front bowl.
•
AquaPiston® flushing system.
•
Includes right-hand polished chrome trip lever.
•
1.28 gpf (4.8 lpf).
•
2-1/8" (54 mm) fully glazed trapway.
•
10" (254 mm) rough-in.
•
Less seat and supply.
•
11" (279 mm) x 8-3/4" (222 mm) water area.
•
27-1/4" (692 mm) x 17-5/8" (448 mm) x 30-1/2" (775 mm).
•
Floor mount / Floor outlet.
Recommended Accessories
K-7637 Angle Supply with Stop (single)
Optional Accessories
K-9466-R Right-hand Trip Lever
K-9470-R Right-hand Trip Lever
Components
Product includes:
K-4829 Toilet Bowl
K-4166-RA Toilet Tank
Additional included component/s: Tank cover, Trip lever, Bolt
cap accessory pack, and Tank accessory pack.
Cimarron
®
Comfort Height® Toilet
K-3851-RA
Codes/Standards
ASME A112.19.2/CSA B45.1
DOE - Energy Policy Act 1992
EPA WaterSense
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
®
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 00:13
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
Page 2
Finished Floor
Cimarron
®
Comfort Height® Toilet
K-3851-RA
Technical Information
All product dimensions are nominal.
Two-pieceToilet type:
Round frontBowl shape:
AquaPistonFlush type:
2-1/8" (54 mm)Trap passageway:
Water Consumption
1.28 gpf (4.8 lpf)Full:
11" x 8-3/4" (279 mm x 222 mm)Water surface size:
5-1/4" (133 mm)Rim to water surface:
10" (254 mm)Rough-in:
5-1/2" (140 mm)Seat-mounting holes:
Notes
Install this product according to the installation
guide.
For back-to-back toilet installations: Use only a
45° double wye fitting.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 00:13
