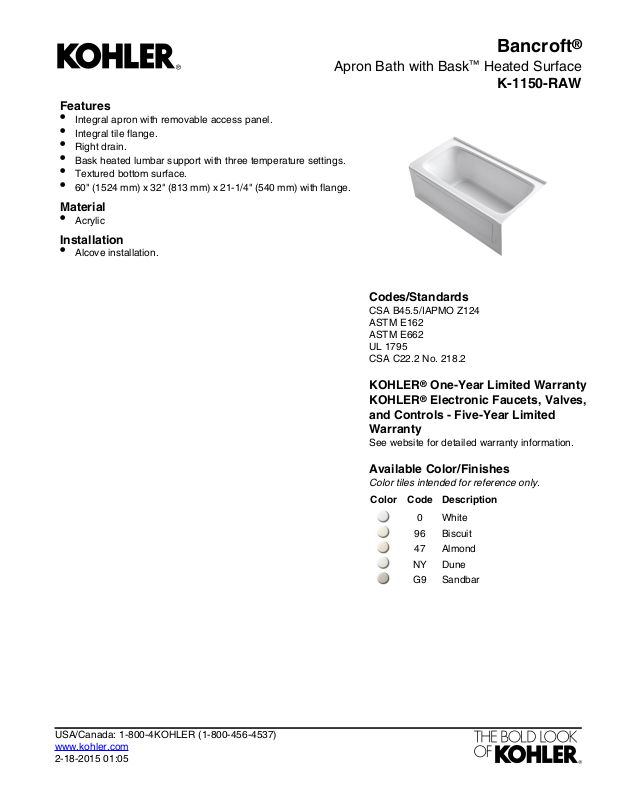

Page 1
Features
•
Integral apron with removable access panel.
•
Integral tile flange.
•
Right drain.
•
Bask heated lumbar support with three temperature settings.
•
Textured bottom surface.
•
60" (1524 mm) x 32" (813 mm) x 21-1/4" (540 mm) with flange.
Material
•
Acrylic
Installation
•
Alcove installation.
Bancroft
®
Apron Bath with Bask™ Heated Surface
K-1150-RAW
Codes/Standards
CSA B45.5/IAPMO Z124
ASTM E162
ASTM E662
UL 1795
CSA C22.2 No. 218.2
KOHLER® One-Year Limited Warranty
KOHLER® Electronic Faucets, Valves,
and Controls - Five-Year Limited
Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Biscuit96
Almond47
DuneNY
SandbarG9
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 01:05
Page 2
No change in measurements if connected
Bancroft
®
Apron Bath with Bask™ Heated Surface
K-1150-RAW
Required Electrical Service
One dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device
(RCD).
120 V, 15 AHeater:
Technical Information
All product dimensions are nominal.
Alcove with FlangeInstallation:
RightDrain location:
45" x 22" (1143 mm x 559 mm)Basin area, bottom:
54" x 25" (1372 mm x 635 mm)Basin area, top:
80 lbs (36.3 kg)Weight:
45 lbs/ft² (219.7 kg/m²)Minimum floor load:
14" (356 mm)Water depth:
60 gal (227.1 L)Water capacity:
Heater: 120 V, .5 A, 60 Hz, 65 WElectrical rating:
Notes
Measure your actual product for roughing-in
details.
Install this product according to the installation
guide.
Locate a GFCI-protected 120 V, 15 A, grounded
electical outlet within 24" (610 mm) of the bath
junction box.
40" (1016 mm) cable is included.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 01:05
